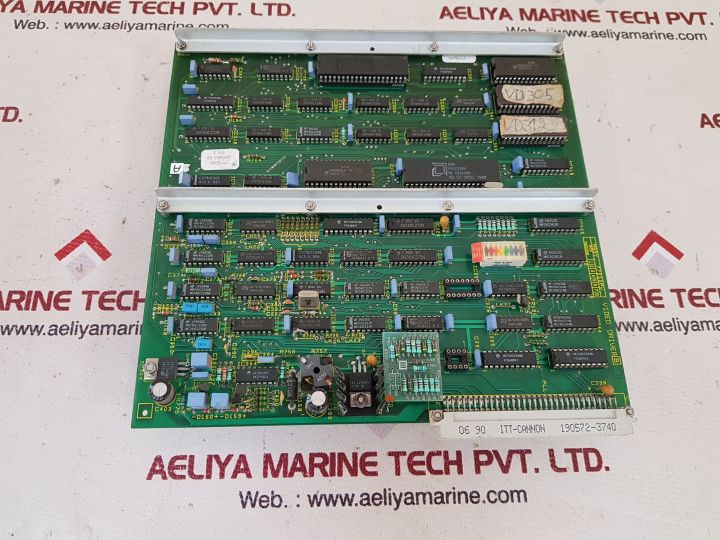

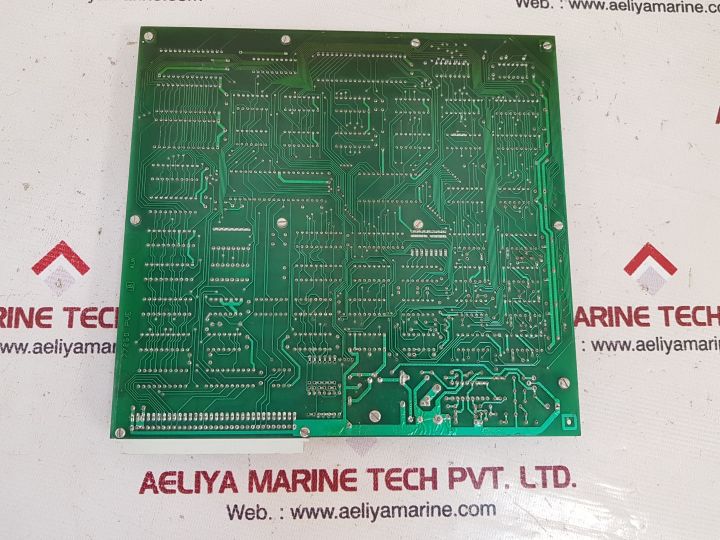

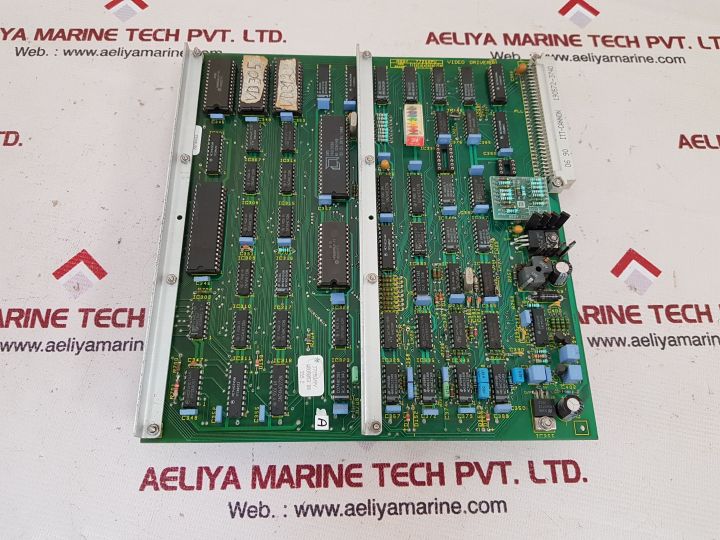

- Racal 77250 cdv pcb card Racal 77250 cdv pcb card
Racal 77250 cdv pcb card
Free Delivery
Return Policy
Top Brand
Secure Payment
| Attribute | Value |
|---|---|
| Product Name | Racal 77250 CDV PCB Card |
| Manufacturer | Racal Marine Electronics Ltd |
| Application | Data-Video Unit |
| Type Number | 77250 CDV |

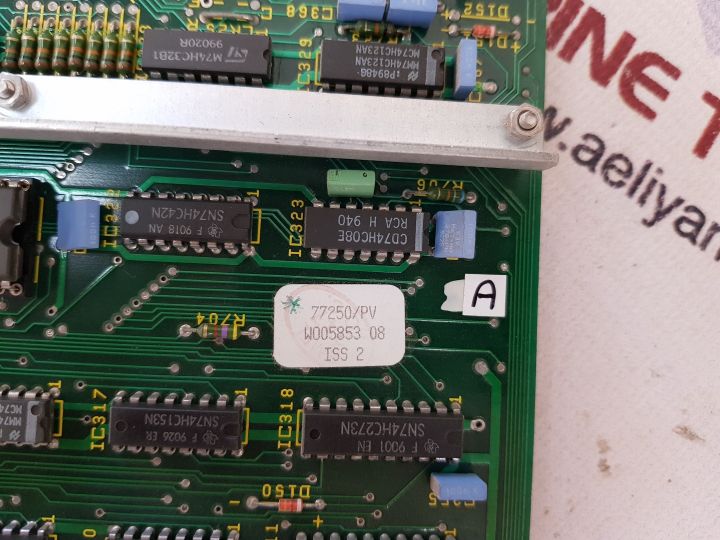

| Alternate Model | 77250/PV |
| Serial / Ref Number | W005823 08 |
| Issue | ISS 2 |
| Assembly Number | ASSY 77250PV |
| Variant | 77250 PVE B ALW |

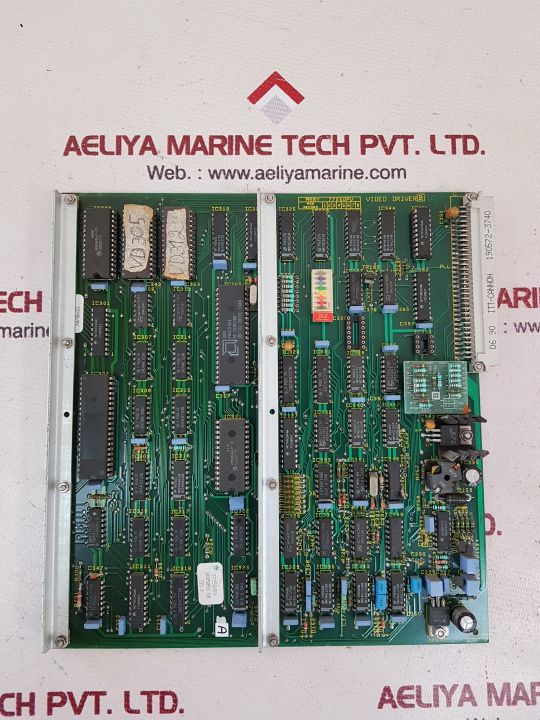

| Function | Video Driver B B |
| Country of Origin | Made in England |
| Weight | 500 gm |
Ā
The Racal 77250 CDV PCB Card is a high-accuracy data acquisition and signal processing module suited for integration in sophisticated industrial and scientific applications. Designed with the reliability and accuracy of Racal Instruments, the PCB card is an integral element in systems that require real-time data logging, signal integrity, and operational stability.

Initially intended as a component of Racal's modular test and measurement systems, the 77250 CDV card finds widespread application in legacy test and measurement configurations, especially when high-speed analog-to-digital conversion is necessary. Its rugged PCB design and sophisticated circuitry enable effortless integration into rack-based data acquisition environments, usually in aerospace, defense testing, industrial automation, and research laboratory settings.
Features:
⢠Multi-Channel Analog Input Channels with High-Speed Conversion: Multiple analog input channels supporting high-resolution conversion, suitable for recording fast-varying signal data with high accuracy.
⢠Preprocessing and Conditioning of Signals through Hardware Support: Integrated hardware to preprocess and condition signals, taking the load off the main system processor.
⢠Modular Design: Easy integration with Racal and other modular data acquisition systems to support scalable configurations.
⢠Robust and Reliable PCB Design: The 77250 CDV card has a rugged PCB design, optimized for long-term reliability under industrial operating conditions and high-frequency signal handling.
⢠Flexible Interface Interoperability: Supports multiple backplane architectures, making it easy to integrate into legacy systems or custom test benches.
⢠Calibration and Autodiagnostics: Automated calibration and diagnostic feedback on some models of the Racal 77250 card enhance measurement confidence and minimize downtime.
Applications:
⢠Aerospace and Defense Systems: Applied to telemetry, sensor data acquisition, and real-time system monitoring in ground and flight test configurations.
⢠Industrial Automation: Facilitates precise process monitoring and control in automated manufacturing processes, such as motor control, temperature recording, and pressure data acquisition.
⢠Research and Development: Used in experimental configurations that demand synchronized, high-resolution data acquisition at multiple input points.
⢠Test and Measurement Equipment: Typically used in lab-quality oscilloscopes, data loggers, and modular instrumentation platforms for signal monitoring and analysis.
⢠Power and Energy Sector: Used in systems that measure electrical parameters, grid monitoring, and condition-based maintenance analysis.
The Racal 77250 CDV PCB Card remains an industrial-strength option for industries and laboratories that require a tested data acquisition platform. As a component replacement for a current system or integration into a custom-designed system, the 77250 delivers precision, performance, and stability for mission-critical systems.
