Machine downtime is a complicate issue in industrial environments, often leading to lost productivity, increased operational costs, and unmet production targets. Maintenance strategies, both reactive and preventive, play an important role in minimizing downtime. In this context, Human-Machine Interfaces (HMIs) have emerged as powerful tools to revolutionize the way machines are monitored, controlled, and maintained. This blog explores the profound impact of HMIs on reducing machine downtime and optimizing maintenance practices.

Understanding Machine Downtime and Maintenance Challenges

Machine downtime occurs when equipment is unavailable for use, typically due to breakdowns, maintenance activities, or system inefficiencies. There are two main types of downtime:

1. Planned Downtime: Scheduled for maintenance, upgrades, or inspections.
2. Unplanned Downtime: Occurs unexpectedly due to equipment failure or operational issues.

Unplanned downtime is the most expensive because it causes disruption in production schedules, increases labor costs, and often leads to expensive emergency repairs. Traditional maintenance practices rely heavily on reactive measures, which address issues only after they arise. This approach is inefficient because it leads to higher repair costs and extended downtime.

The Role of HMIs in Downtime Reduction

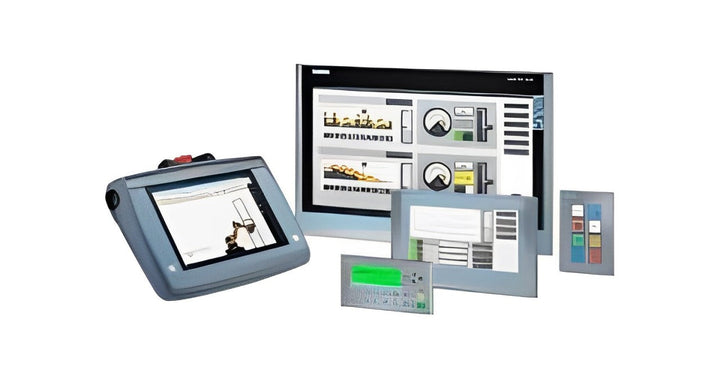

Human-Machine Interfaces act as the control center for operators, providing real-time information about machine performance, system status, and potential issues. By leveraging advanced HMI systems, businesses can significantly reduce both planned and unplanned downtime.

1. Real-Time Monitoring and Alerts

Modern HMIs are equipped with advanced sensors and communication protocols that continuously monitor machine parameters such as temperature, pressure, speed, and vibration. Real-time data visualization enables operators to identify anomalies as they occur. Additionally, HMIs can send automated alerts and notifications when critical thresholds are breached, allowing for prompt intervention before minor issues escalate into major failures.

2. Predictive Maintenance

Predictive maintenance combines historical and real-time data to predict when equipment could fail. This process relies largely on HMIs, gathering relevant data and presenting it. If an HMI in a motor show increasing vibrations, it will alert an operator to schedule maintenance beforehand before the motor breaks down; hence, there is less planned downtime and increased equipment lifespan.

3. Enhanced Diagnostic Capabilities

When downtime occurs, quick and accurate diagnosis is essential to minimize the impact. HMIs provide detailed diagnostic information, including error codes, performance logs, and system trends. This data enables maintenance teams to pinpoint the root cause of issues quickly, reducing the time spent on troubleshooting and repairs.

4. Remote Monitoring and Control

Many of the modern HMIs support remote access, enabling operators and technicians to monitor and control machines from remote locations. This is especially useful for facilities with geographically dispersed operations. Remote monitoring ensures that issues are addressed promptly, even outside of normal working hours, further reducing downtime.

5. Integration with IoT and Industry 4.0

HMI systems are being integrated into the broader industrial Internet of Things. This integration provides machines with the connectivity to share data with a centralized system that would help in having coordinated maintenance strategies. For instance, an HMI can have communication with a central maintenance management system, which generates work orders automatically when the specific conditions are met.

Case Studies: HMIs in Action

Case Study 1: Automotive Manufacturing Plant

An automotive manufacturer implemented advanced HMIs with predictive maintenance capabilities across its assembly lines. The HMIs monitored critical components, such as robotic arms and conveyor belts, for signs of wear and tear. By addressing issues before failures occurred, the plant reduced unplanned downtime by 30% and increased overall equipment efficiency.

Case Study 2: Food Processing Facility

A food processing facility faced frequent equipment breakdowns, leading to product spoilage and production delays. By deploying HMIs with real-time monitoring and remote access, the facility improved response times and minimized losses. Maintenance costs decreased by 20%, and downtime was cut by 40%.

Benefits of HMIs in Maintenance Strategies

1. Cost Savings: By preventing major breakdowns and enabling efficient repairs, HMIs reduce maintenance costs.
2. Improved Productivity: Minimizing downtime ensures continuous production, leading to higher output and better utilization of resources.
3. Enhanced Safety: HMIs provide critical safety alerts, protecting operators and equipment from hazardous conditions.
4. Data-Driven Decision-Making: The wealth of data collected by HMIs supports informed decision-making, optimizing maintenance schedules and resource allocation.

Future Trends in HMI Technology

The evolution of HMIs continues to shape the future of maintenance and downtime management. Emerging trends include:

1. AI-Powered HMIs: Artificial intelligence will further enhance predictive maintenance and anomaly detection.
2. Augmented Reality (AR) Integration: HMIs integrated with AR can provide maintenance teams with interactive, real-time guidance for repairs.
3. Edge Computing: Processing data locally on the HMI device reduces latency and improves real-time decision-making.
4. Cybersecurity Enhancements: As connectivity increases, advanced security measures will protect HMIs from cyber threats.

Conclusion

Human-Machine Interfaces have transformed the landscape of industrial maintenance by enabling real-time monitoring, predictive insights, and efficient diagnostics. By reducing machine downtime and optimizing maintenance practices, HMIs contribute to significant cost savings, improved productivity, and enhanced operational safety. As technology continues to advance, the integration of AI, IoT, and AR will further amplify the impact of HMIs, paving the way for smarter, more resilient industrial systems.

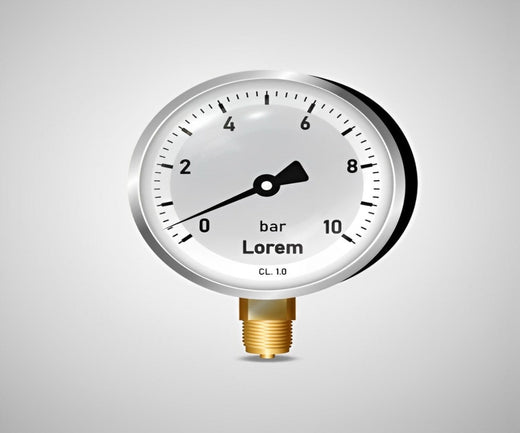

Pressure gauges are certain measuring tools that determine the pressure in fluid or gas systems. They play an important role in ensuring the efficiency, safety, and performance of various systems across industrial and home applications. Over the years, with the technological advancement, pressure gauges have become more precise, reliable, and user-friendly. This blog will dive into why pressure gauges matter, their latest innovations, and their impact on diverse applications.

The Role of Pressure Gauges in Daily Life

Pressure gauges may not always be in plain sight, but their impact is undeniable. They are widely used in industrial processes, HVAC systems, water supply systems, and even home appliances like pressure cookers and air compressors. By providing real-time pressure readings, these devices help maintain system stability and prevent potential failures.

Industrial Applications

1. Manufacturing Processes: Many manufacturing systems rely on precise pressure control to ensure quality and consistency. For instance, pressure gauges are essential in chemical processing plants, where maintaining specific pressure levels prevents hazardous reactions.
2. Oil and Gas Industry: In this sector, pressure gauges are critical for monitoring drilling operations, pipelines, and storage facilities. Any pressure anomaly can signal a leak or other safety hazard, enabling quick intervention.
3. Power Plants: Steam and hydraulic systems in power plants require constant pressure monitoring to avoid energy losses and ensure safe operation.

Home Applications

1. Water Systems: Home water pumps and tanks use pressure gauges to maintain consistent water flow. A faulty gauge can lead to insufficient water pressure or damage to the pump.
2. Heating Systems: Pressure gauges are vital in-home boilers and heating systems to ensure efficient operation and prevent malfunctions.
3. Recreational Tools: Devices like car tire inflators and air compressors for DIY projects rely on accurate pressure gauges to function effectively.

Types of Pressure Gauges

Pressure gauges come in various types to suit different applications. Some common types include:

1. Bourdon Tube Gauges: Widely used in industrial settings, these gauges are durable and capable of measuring high pressures.
2. Digital Pressure Gauges: Offering precise readings and additional features like data logging, these are ideal for modern applications.
3. Differential Pressure Gauges: These are used to measure the pressure difference between two points, commonly found in filtration systems.
4. Diaphragm Pressure Gauges: Suited for low-pressure applications, they are resistant to corrosive substances.

Recent Innovations in Pressure Gauge Technology

The pressure gauge industry has seen significant advancements in recent years, enhancing their accuracy, durability, and functionality.

1. Smart Pressure Gauges

Smart gauges are equipped with IoT (Internet of Things) capabilities, which enable remote monitoring and data integration with other systems. Such devices can send alerts in real-time when pressure levels deviate from preset ranges, reducing downtime and enhancing system reliability.

2. Wireless Connectivity

Modern pressure gauges now offer wireless connectivity, making it easier to monitor systems in hard-to-reach locations. These gauges can transmit data to a central hub or even mobile devices, streamlining maintenance operations.

3. Improved Materials

The use of advanced materials such as stainless steel, ceramics, and composites has increased the durability of pressure gauges, which makes them suitable for extreme environments. These materials are particularly valuable in industries dealing with corrosive substances or high temperatures.

4. Enhanced Accuracy

Digital pressure gauges with microprocessor technology now offer unmatched accuracy, often with an error margin as low as 0.05%. This precision is vital in applications like pharmaceuticals and aerospace, where minor deviations can have significant consequences.

Benefits of Pressure Gauges

Pressure gauges offer numerous advantages that make them indispensable in both industrial and home settings:

1. Safety: By monitoring pressure levels, gauges help prevent accidents caused by system failures, leaks, or overpressure.
2. Efficiency: Accurate pressure readings optimize system performance, reducing energy consumption and operational costs.
3. Longevity: Regular monitoring with pressure gauges can identify potential issues early, prolonging the lifespan of equipment.
4. Compliance: Many industries require pressure monitoring to meet safety and environmental standards. Pressure gauges ensure compliance with these regulations.

Common Challenges and Solutions

Despite their utility, pressure gauges can encounter challenges, such as:

1. Calibration Issues: Over time, gauges may lose accuracy and require recalibration. Regular maintenance schedules can prevent this.
2. Mechanical Wear: In harsh environments, gauges can suffer wear and tear. Opting for robust materials and protective housings can mitigate this.
3. Clogging: Debris in the system can block the gauge. Using filters and regular cleaning helps maintain functionality.

Future Trends in Pressure Gauges

The future of pressure gauges looks promising, with trends focusing on improved integration, sustainability, and usability:

1. AI and Predictive Maintenance: Integrating artificial intelligence with pressure gauges can predict system failures before they occur, enhancing reliability.
2. Energy Efficiency: Pressure gauges are becoming more energy-efficient, with low-power options suitable for remote or battery-powered systems.
3. Eco-Friendly Designs: Manufacturers are exploring recyclable materials and environmentally friendly production processes to meet sustainability goals.
4. User-Friendly Interfaces: The focus is shifting toward intuitive interfaces that display data clearly, making it easier for users to interpret readings and act accordingly.

Conclusion

Pressure gauges are vital components in both industrial and home applications, ensuring safety, efficiency, and system reliability. With continuous advancements in technology, these devices are becoming smarter, more accurate, and better suited to meet the demands of modern systems. Whether you’re managing a complex industrial operation or maintaining a simple home setup, investing in high-quality pressure gauges is essential for optimal performance and peace of mind.

Rectifiers are indispensable components in modern electrical power systems, enabling the seamless conversion of AC to DC power for a wide range of applications. From powering electronic devices to supporting renewable energy systems and HVDC transmission, rectifiers have transformed how power is utilized and managed. With advancements in technology, rectifiers continue to evolve, paving the way for more efficient, reliable, and sustainable electrical systems. As energy demands and technological complexities grow, the role of rectifiers will remain central to the future of power systems.

What Is a Rectifier?

A rectifier is an electrical device that converts AC, which periodically reverses direction, into DC, which flows in a single direction. This process is called rectification. Rectifiers are used in various applications, including power supplies, battery charging systems, and electronic devices, as DC power is often required to operate circuits.

Why Is Rectification Necessary?

1. Compatibility with Electronics: Most electronic components, such as transistors, integrated circuits, and microprocessors, function on DC.
2. Energy Storage: Batteries store energy in DC form, requiring rectifiers for charging.
3. Stable Power Supply: DC power is more stable than AC for many sensitive applications.

Types of Rectifiers

Rectifiers can be categorized based on their configuration and working principles. Here are the primary types:

1. Half-Wave Rectifier

A half-wave rectifier allows only one half of the AC waveform to pass through, blocking the other half.

• Advantages:

• Simple design
• Low cost
• Disadvantages:
• Inefficient as it uses only half the input power
• High ripple, requiring extensive filtering

2. Full-Wave Rectifier

Full-wave rectifiers utilize both halves of the AC waveform, resulting in a smoother DC output.

• Advantages:
• Higher efficiency
• Lower ripple factor
• Disadvantages:
• Requires more components, such as a centre-tapped transformer or a bridge configuration

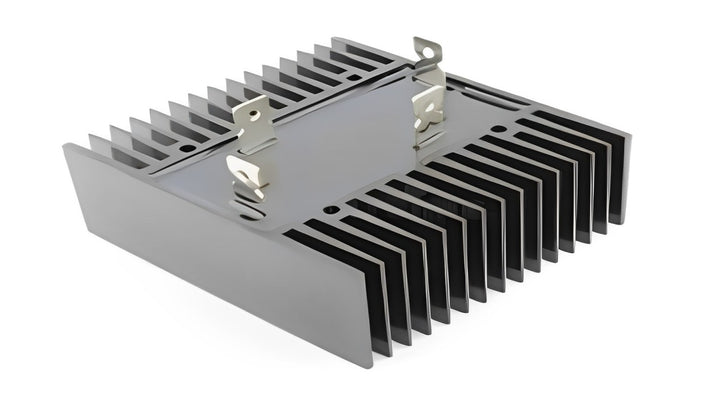

3. Bridge Rectifier

A bridge rectifier uses four diodes arranged in a bridge configuration to convert the entire AC waveform to DC. This design eliminates the need for a centre-tapped transformer.

• Advantages:
• High efficiency
• Compact design
• Disadvantages:
• Higher forward voltage drops due to multiple diodes

4. Controlled Rectifiers

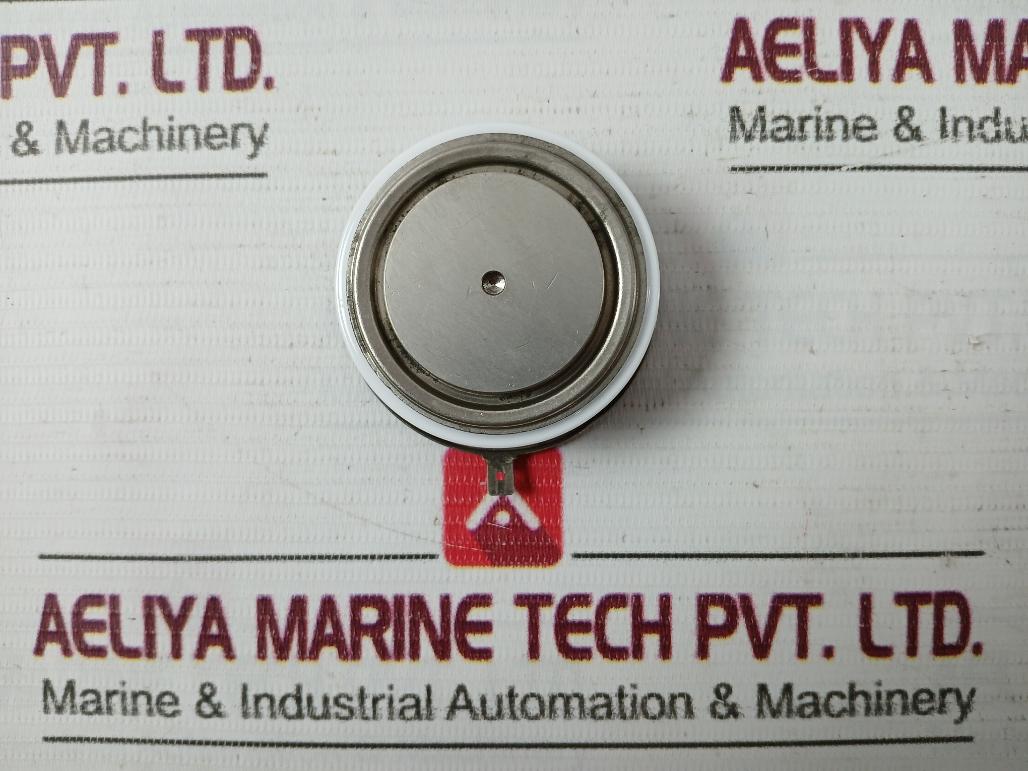

These rectifiers allow control over the rectification process by using thyristors or silicon-controlled rectifiers (SCRs). This capability is useful in applications requiring variable DC output.

• Applications: Industrial drives, power controllers, and HVDC systems.

How Rectifiers Transform Electrical Power Systems

The integration of rectifiers into electrical power systems has revolutionized how power is managed, distributed, and utilized. Here’s how:

1. Facilitating Power Conversion

Electrical power systems typically generate and distribute electricity in AC form due to its efficiency in long-distance transmission. However, many applications require DC power, which rectifiers provide by converting AC to DC seamlessly. This conversion supports various end-user devices and systems, from household electronics to industrial equipment.

2. Supporting Renewable Energy Systems

Renewable energy sources, such as solar panels and wind turbines, often produce DC or variable AC power. Rectifiers play a critical role in these systems by converting this power into a usable DC form for storage or further conversion to stable AC for grid distribution.

3. Enhancing Battery Charging Systems

Batteries store energy as DC, requiring rectifiers to convert AC power from the grid into DC during the charging process. Modern rectifiers, equipped with advanced control systems, ensure efficient and safe charging of batteries used in electric vehicles (EVs), UPS systems, and portable devices.

4. Powering Industrial Drives

Industrial applications, such as motor drives and variable frequency drives (VFDs), rely on rectifiers to supply controlled DC power. These systems allow precise control of speed and torque in machinery, improving efficiency and reducing energy consumption.

5. Enabling HVDC Transmission

High-voltage direct current (HVDC) systems are a game-changer in power transmission. Rectifiers convert AC power to DC for efficient long-distance transmission with reduced energy losses. At the receiving end, inverters convert the DC back to AC for local distribution.

6. Improving Power Supply Systems

Rectifiers are integral to uninterruptible power supplies (UPS) and power adapters, providing stable DC power for sensitive equipment, such as servers, medical devices, and telecommunications systems. By ensuring a consistent power supply, rectifiers safeguard against outages and voltage fluctuations.

Advances in Rectifier Technology

Over the years, rectifier technology has advanced significantly to meet modern energy demands. Some notable developments include:

1. High-Efficiency Rectifiers

Modern rectifiers are designed with lower power losses and higher efficiency. Semiconductor advancements, such as Schottky diodes and SiC (silicon carbide) devices, have made this possible.

2. Smart Rectifiers

Smart rectifiers incorporate microcontrollers and sensors for real-time monitoring and control. They adapt to varying loads and input conditions, ensuring optimal performance.

3. Compact and Lightweight Designs

Improved materials and cooling techniques have resulted in smaller and lighter rectifiers, suitable for portable and space-constrained applications.

4. Integration with Renewable Energy

Rectifiers are now integrated with maximum power point tracking (MPPT) systems in solar inverters, enhancing energy harvesting and efficiency.

Challenges and Future Directions

Despite their benefits, rectifiers face certain challenges that demand ongoing innovation:

1. Heat Dissipation

Power losses during rectification generate heat, requiring effective thermal management systems to prevent damage and maintain efficiency.

2. Harmonics

Rectifiers can introduce harmonics into power systems, affecting the quality of power. Advanced filtering techniques and harmonic mitigation strategies are necessary.

3. Scalability

As energy demands grow, rectifiers must scale efficiently while maintaining reliability and performance.
