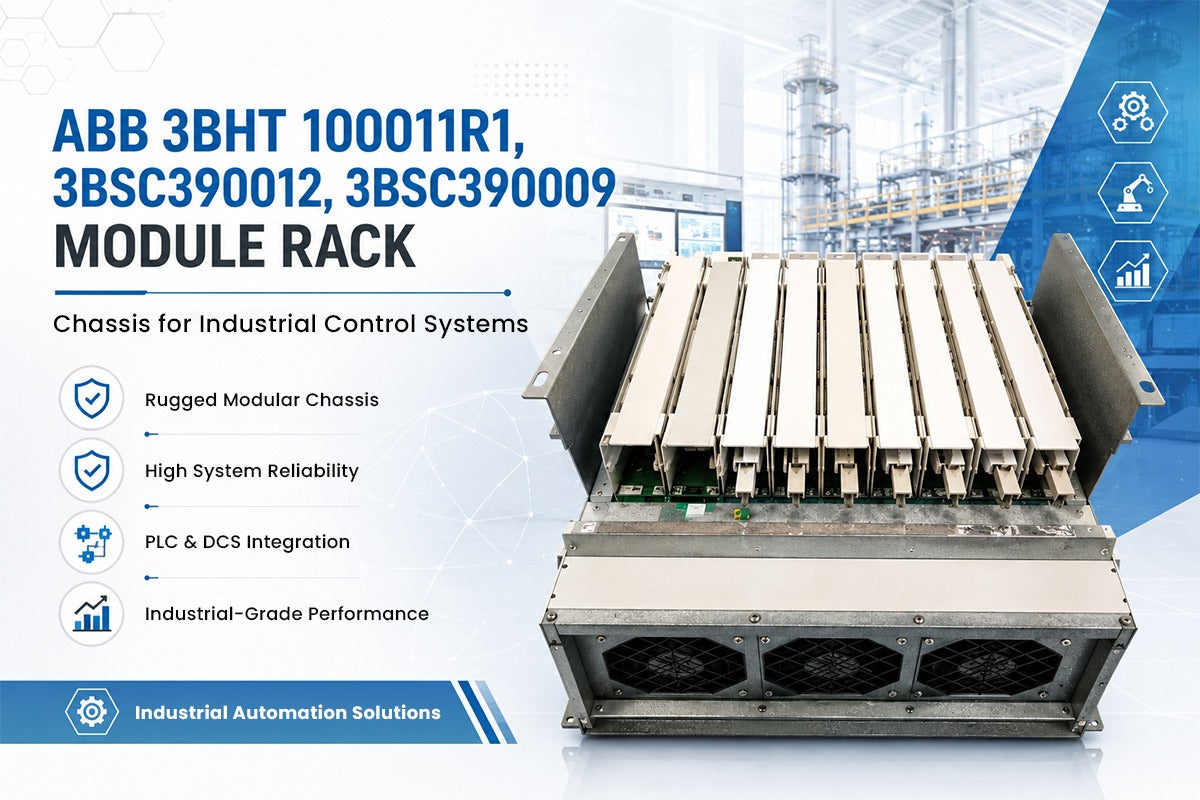

ABB 3BHT 100011R1, 3BSC390012, 3BSC390009 Module Rack: Chassis for Industrial Control Systems

The foundation of every reliable industrial control system begins with a robust mechanical infrastructure. The ABB 3BHT 100011R1, 3BSC390012, 3BSC390009, 3BHT300006R1 Module Rack represents the gold standard in industrial chassis design, providing a sturdy, well-engineered housing platform for ABB's extensive range of control modules and I/O cards. This comprehensive rack assembly from ABB Industrial Systems delivers the structural integrity and electrical interconnectivity essential for mission-critical automation deployments.

Aeliya Marine Tech, a premier supplier of industrial automation solutions, offers this authentic ABB module rack to system integrators, end users, and OEMs worldwide. Our commitment to sourcing genuine industrial components ensures that our customers receive equipment that meets the highest standards of quality and reliability.

Product Overview and Significance

The RF620 series module rack assembly encompasses multiple catalog numbers including 3BHT 100011R1, 3BSC390012 U113.12, 3BSC390012 U113.15, 3BSC390009 U113.18, and 3BHT300006R1. This modular approach allows system designers to select the precise configuration that matches their application requirements, ensuring optimal space utilization and cost efficiency.

Manufactured in Sweden by ABB Industrial Systems, this module rack reflects the Scandinavian tradition of precision engineering and attention to detail. Each rack undergoes rigorous quality testing to ensure dimensional accuracy, electrical continuity, and mechanical durability before leaving the factory.

Technical Specifications and Construction

Physical Characteristics

The ABB module rack is designed to accommodate multiple I/O modules, processor cards, and communication interfaces within a single integrated chassis. With a substantial weight of 21.730 kilograms, this rack provides exceptional mechanical stability, minimizing the effects of vibration and shock on sensitive electronic components. The robust steel construction features precision-machined card guides that ensure proper module alignment and reliable connector engagement.

Electrical Interconnect System

A key feature of the 3BHT 100011R1 rack is its sophisticated backplane interconnect system. The backplane provides high-speed data pathways between modules, power distribution rails, and grounding connections. Gold-plated connectors ensure long-term reliability by resisting corrosion and maintaining low contact resistance over thousands of insertion cycles. This attention to connector quality significantly extends the operational lifespan of the entire control system.

Thermal Management Design

Effective thermal management is critical in industrial control systems where modules may operate continuously for years. The ABB module rack incorporates strategically placed ventilation channels that promote natural convection cooling while preventing the ingress of dust and contaminants. When combined with optional fan assemblies, this design ensures that all installed modules operate within their specified temperature ranges even in challenging ambient conditions.

Electromagnetic Compatibility and Noise Immunity

In today's electrically noisy industrial environments, electromagnetic compatibility (EMC) is not a luxury but a necessity. The ABB 3BHT 100011R1 module rack is engineered with comprehensive EMC considerations at every level of its design. The steel chassis serves as an effective Faraday cage, shielding sensitive internal electronics from external electromagnetic interference while preventing the rack's own emissions from affecting nearby equipment.

The backplane layout follows best practices for signal integrity, with high-speed digital signals routed away from sensitive analog circuits. Ground plane design minimizes ground impedance and provides a low-noise reference for all modules. These EMC design features ensure that the control system operates reliably even in environments with high levels of radio frequency interference from variable frequency drives, welding equipment, and radio transmitters.

Compatibility and Module Support

The ABB 3BSC390012 and 3BSC390009 series racks are designed to host a comprehensive range of ABB control system modules. Compatible module types include analog input modules, digital output modules, communication processors, power supply units, and specialized function modules. This versatility allows engineers to configure control systems that precisely match their I/O requirements without being constrained by rigid hardware architectures.

The rack's standardized slot configuration follows ABB's proven form factor specifications, ensuring that modules from different product generations can coexist within the same chassis. This backward compatibility protects customer investments and facilitates phased system upgrades without requiring complete hardware replacement.

Installation and Commissioning Best Practices

Proper installation of the module rack is essential for achieving optimal performance and longevity. The rack should be mounted in an environmentally controlled enclosure that provides adequate clearance for air circulation. All mounting points should be secured using appropriate hardware, and the chassis must be properly grounded according to local electrical codes and ABB's installation guidelines.

During commissioning, each module slot should be inspected for debris or damage before module insertion. Modules must be fully seated in their card guides until the retention mechanism engages. After installation, a comprehensive continuity test should be performed to verify all backplane connections.

Applications in Marine and Industrial Environments

This ABB module rack finds extensive application across diverse industrial sectors. In marine automation systems, the rack houses control modules for propulsion systems, power generation, and cargo handling equipment. The rack's robust construction makes it well-suited for the demanding conditions encountered aboard ships and offshore platforms.

Onshore applications include process control systems for petrochemical plants, water treatment facilities, manufacturing lines, and power distribution networks. In each of these applications, the module rack provides the reliable foundation upon which complex automation solutions are built.

Maintenance and Service Considerations

Regular maintenance of the module rack ensures continued reliable operation. Periodic inspection should include checking for loose connections, cleaning ventilation channels, and verifying the integrity of card guides and retention mechanisms. Any module replacement should follow ABB's recommended procedures to prevent damage to the backplane connectors.

Aeliya Marine Tech supports customers with maintenance guidance and spare part recommendations to maximize system uptime and operational lifespan.

Frequently Asked Questions

What modules are compatible with the ABB 3BHT 100011R1 rack?

The ABB 3BHT 100011R1, 3BSC390012, and 3BSC390009 module racks are compatible with a wide range of ABB control system modules including analog and digital I/O modules, communication processors, power supply units, and specialized function modules from the RF620 series.

Where is this module rack manufactured?

This ABB module rack is manufactured in Sweden by ABB Industrial Systems, ensuring the highest standards of European engineering quality and precision.

What is the weight of the ABB module rack?

The ABB 3BHT 100011R1 module rack weighs approximately 21.730 kilograms, reflecting its robust steel construction designed for industrial durability.

Does Aeliya Marine Tech ship this product internationally?

Yes, Aeliya Marine Tech provides worldwide shipping for all products including the ABB module rack. We offer free shipping on all orders and ensure secure packaging to prevent damage during transit.

What is the significance of the multiple part numbers?

The multiple catalog numbers (3BHT 100011R1, 3BSC390012, 3BSC390009, 3BHT300006R1) represent different configurations or revisions within the RF620 series module rack family, allowing customers to select the specific variant that matches their system requirements.
