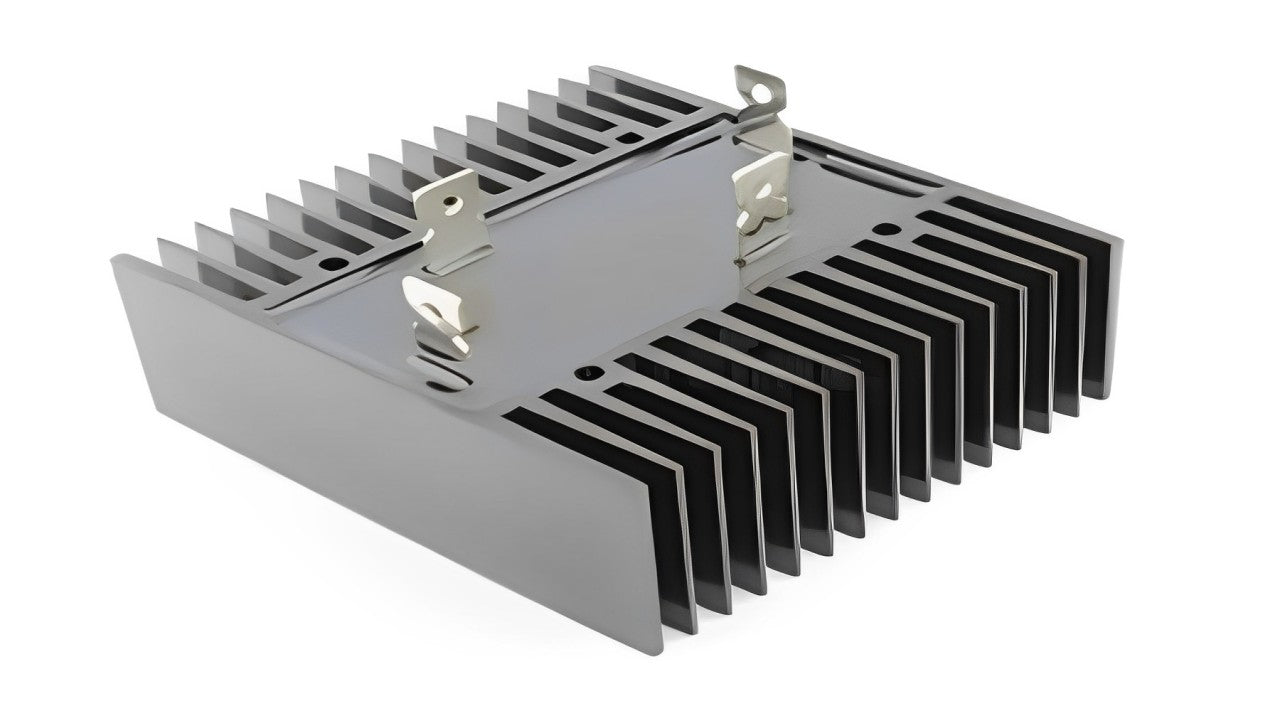

Latest Developments in Rectifiers: Improving Power Systems.

The rectifier is an important part of the power system converting alternating current into direct current for many applications. With developments in modern technology, improvements towards better efficiency, reliability, and compactness were needed. Meanwhile, the improvement in the development of rectifier technology far outpaced that. This article discusses the most modern innovation in rectifier technology as well as its impacts on power systems.



1. Overview of Rectifier Technology

Traditionally, rectifiers have been used to convert AC to DC, enabling power supply for various electronic devices, industrial applications, and more. The basic types of rectifiers include:

• Half-wave rectifiers: Convert only one half of the AC cycle.
• Full-wave rectifiers: Convert both halves of the AC cycle for greater efficiency.
• Bridge rectifiers: Utilize four diodes to ensure full-wave rectification without requiring a center-tapped transformer.

Recent developments have moved beyond these basic types, incorporating advanced components and systems for enhanced performance.

2. Silicon Carbide (SiC) Rectifiers

One of the most impactful advancements in rectifier technology has been the use of silicon carbide (SiC). SiC rectifiers offer several advantages over traditional silicon-based rectifiers, including:

• Higher efficiency: Reduced switching losses due to the wide bandgap of SiC.
• Higher temperature tolerance: SiC can operate at significantly higher temperatures, making them ideal for high-stress environments.
• Compact design: Improved power density allows for smaller and lighter rectifier units.

These benefits make SiC rectifiers a preferred choice for power-hungry applications like electric vehicle (EV) charging stations, solar inverters, and high-voltage power supplies.

3. GaN-Based Rectifiers

Gallium Nitride (GaN) is another material revolutionizing rectifier technology. GaN-based rectifiers provide even higher efficiency and faster switching capabilities than SiC rectifiers, resulting in:

• Lower energy losses: GaN’s higher electron mobility contributes to reduced conduction losses.
• Increased frequency operation: Enables smaller passive components and overall, more compact power systems.
• Enhanced reliability: GaN devices can sustain higher voltages without degradation, making them suitable for high-voltage applications.

These properties make GaN rectifiers highly desirable in industries such as telecommunications, data centers, and aerospace.

4. Improvements in Rectifier Design

Innovations in rectifier architecture have contributed to better overall system performance. Key design improvements include:



• Lower forward voltage drops: Reduces energy waste and heat generation.
• Improved efficiency: Especially advantageous in low-voltage, high-current applications.

Synchronous rectification has found widespread use in power supplies for computing devices, servers, and industrial equipment.

5. Digital Control Integration

The integration of digital control in rectifier technology has transformed power management. Advanced microcontrollers and digital signal processors (DSPs) are now being used to:

• Optimize switching patterns: Digital control can dynamically adjust switching to maximize efficiency.
• Enable intelligent monitoring: Real-time data collection allows for predictive maintenance and fault diagnosis.
• Support multi-functional use: Digital controllers can adapt rectifiers for varied voltage and current outputs.

This level of sophistication is particularly useful in smart grid systems and renewable energy applications where adaptive control is essential.

6. Modular Rectifier Systems

The rise of modular rectifier systems has significantly impacted industries that prioritize scalability and ease of maintenance. Modular rectifiers consist of individual rectifier modules that can be configured in parallel or series to achieve the desired power output. The benefits include:

• Scalability: Additional modules can be added to meet higher power demands.
• Redundancy: In case of module failure, others can take over, ensuring uninterrupted power.
• Ease of service: Faulty modules can be replaced without taking the entire system offline.

Modular systems are widely adopted in data centers, telecommunication hubs, and backup power solutions.

7. High-Frequency Rectification

With the prospect of increasing overall system efficiency, the trend has been toward high-frequency rectifiers. Circuits operated at higher frequencies have reduced passive component sizes, such as inductors and capacitors, providing for:

• Compact designs: Smaller components mean a reduced system footprint.
• Lower heat dissipation: High-frequency operation often correlates with lower power loss.
• Enhanced performance: Faster response times improve regulation and power quality.

This approach is particularly valuable in applications like uninterruptible power supplies (UPS) and advanced battery charging systems.

8. Application-Specific Rectifier Innovations

Rectifier technology has seen tailored innovations for specific sectors. Some notable examples include:



• Support ultra-fast charging: Reduced charging times with high-power rectification.
• Enhance grid interaction: Bi-directional rectifiers enable vehicle-to-grid (V2G) technology.

The future of rectifiers will likely involve even greater integration with smart technologies and continued advancements in semiconductor materials. We can anticipate:

• Wider adoption of wide-bandgap semiconductors: As production costs decrease, SiC and GaN will become more prevalent.
• Artificial intelligence (AI) in control algorithms: Adaptive learning for even more efficient power management.
• Environmentally conscious designs: Greater focus on recyclability and reduced environmental impact.
