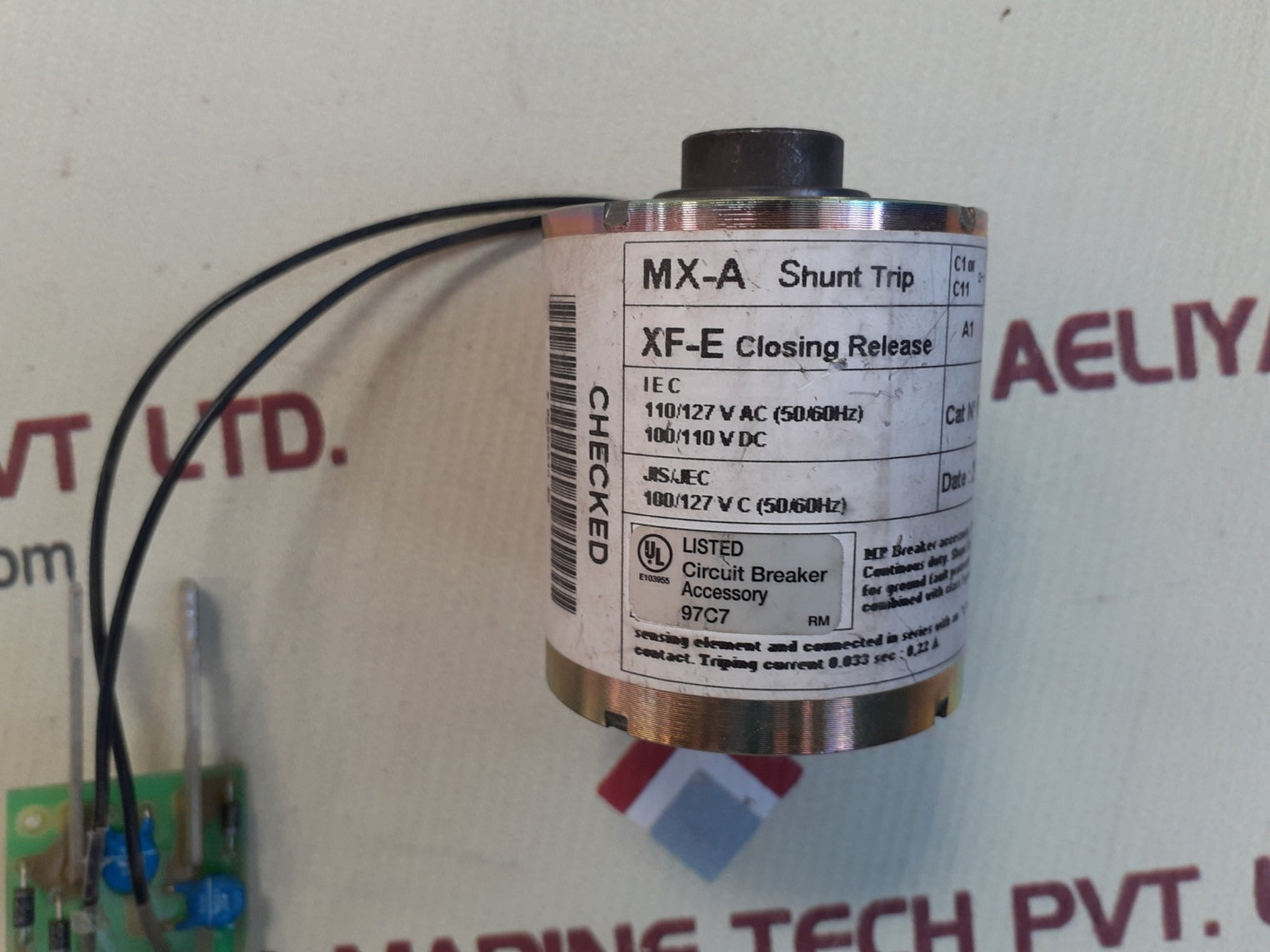

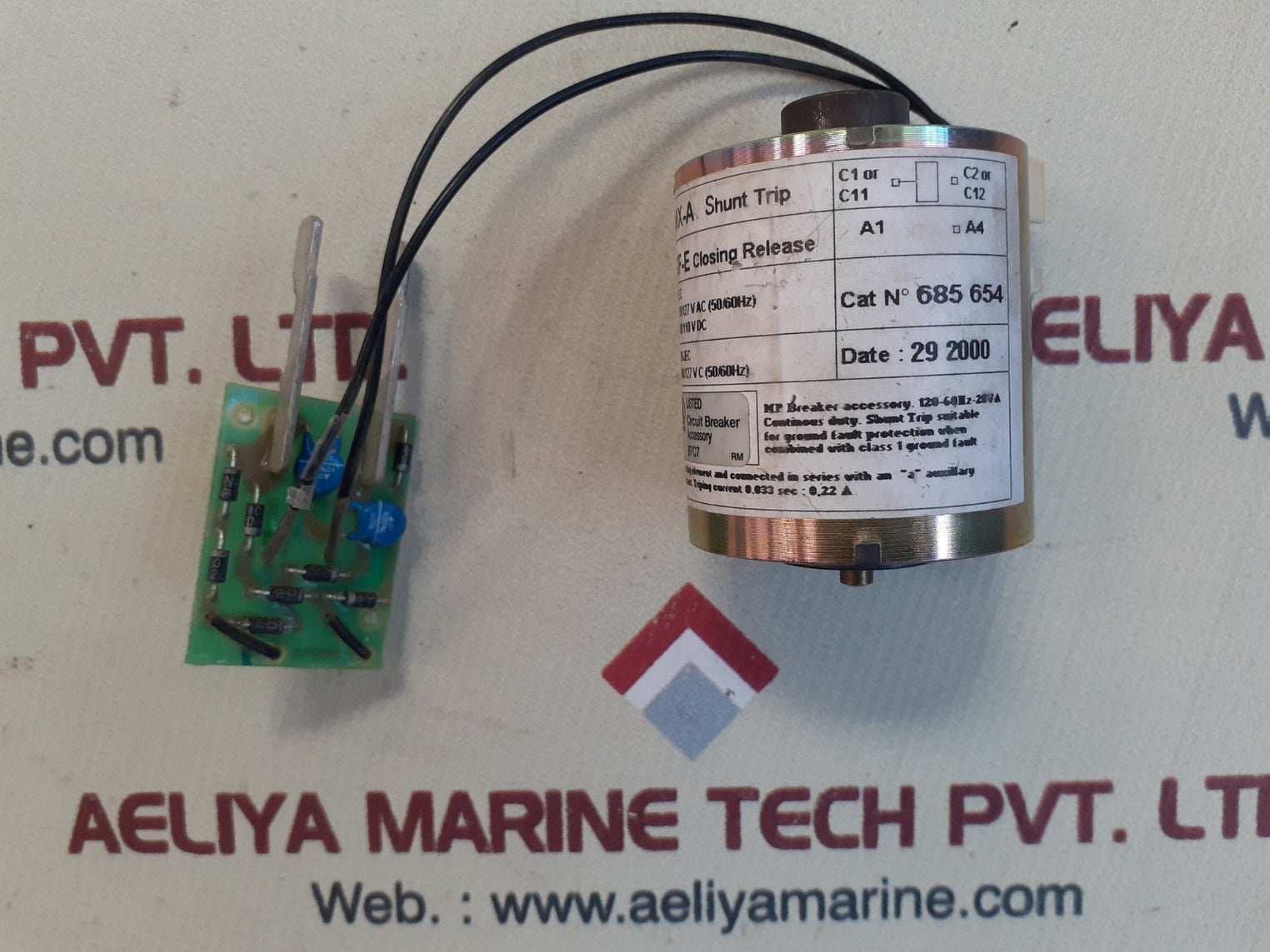

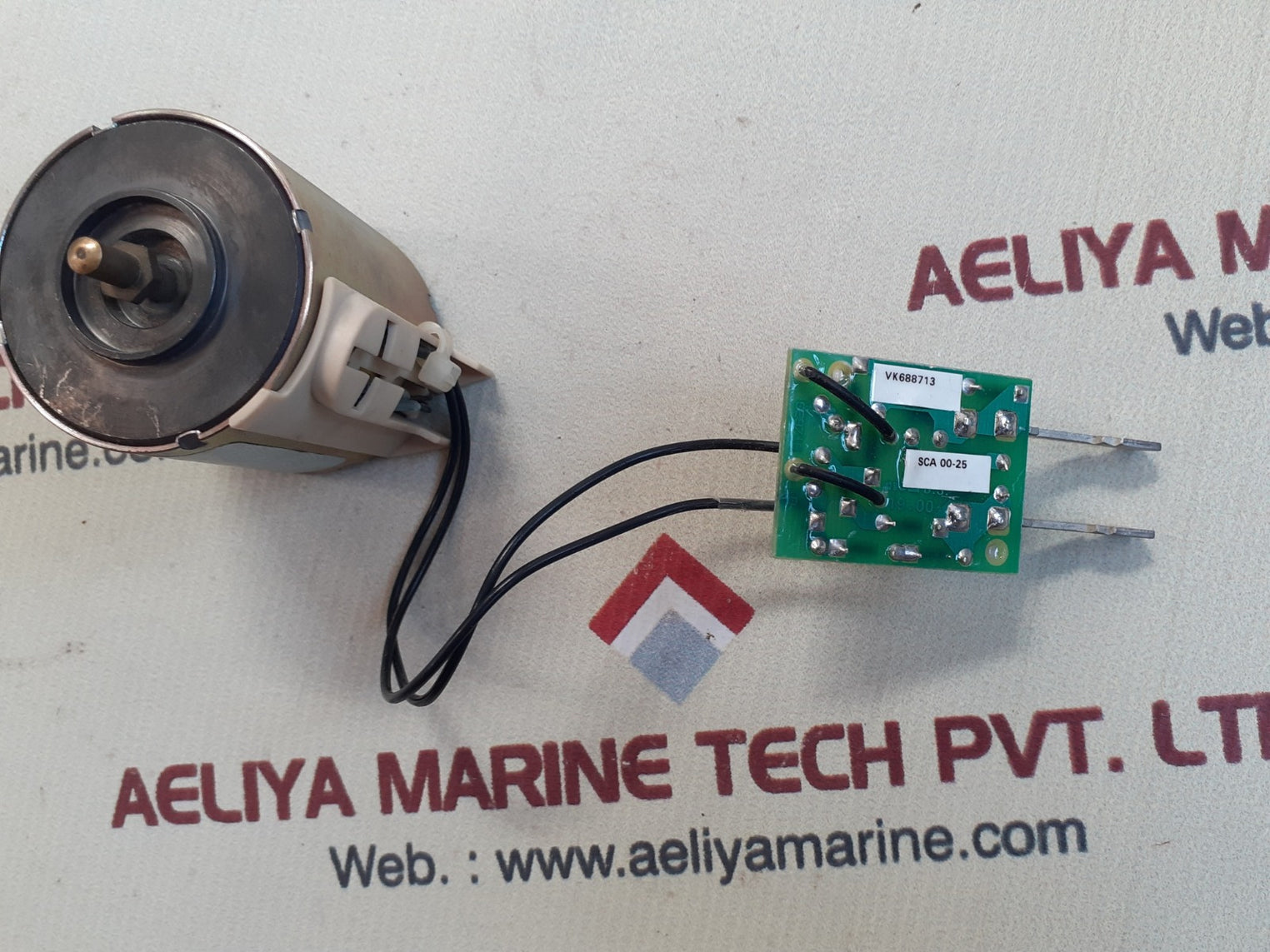

- Schneider Electric 685 654 Mx-a Shunt Trip Circuit Breaker Schneider Electric 685 654 Mx-a Shunt Trip Circuit Breaker
Schneider Electric 685 654 Mx-a Shunt Trip Circuit Breaker
Free Delivery
Return Policy
Top Brand
Secure Payment
| Attribute | Value |
|---|---|
| Brand | Schneider Electric |
| Model | 685 654 MX-A Shunt Trip Circuit Breaker |
| Product Type | Shunt Trip Circuit Breaker |
| Closing Release | XF-E Closing Release |
| IEC Compliance | Yes |
| AC Voltage | 110/127V AC (50/60Hz) |
| DC Voltage | 100/110V DC |
| JIS/JEC Compliance | Yes |
| Voltage (C) | 100/127V C (50/60Hz) |
| Catalog Number | 685 654 |
| MP Breaker Accessory | 120-60Hz-20VA |
| Contact Tripping Current | 0.22A (0.033 Sec) |
| SCA | 00-25 |
| VK688713 | Yes |
| Weight | 650g |
Ā
Schneider Electric 685 654 MX-A Shunt Trip Circuit Breaker is a high-performance electrical device intended for the protection and control of electrical circuits. The shunt trip circuit breaker features sophisticated functionality and rugged design, which makes it suitable for industrial, commercial, and residential applications demanding a trustworthy solution for electrical safety. The product comes with Schneider Electric's acclaimed XF-E Closing Release, which provides exceptional protection and effective operation.

Features:
1. Shunt Trip Mechanism: The 685 654 MX-A breaker is equipped with a shunt trip mechanism, which enables the breaker to be remotely tripped by an external control signal. This is essential in cases where quick disconnection of the electrical circuit is needed to avoid damage or danger.
2. Wide Voltage Range: This circuit breaker accepts both AC and DC voltages. It runs on 110/127V AC (50/60Hz) and 100/110V DC, making it useful and adaptable in different electrical systems.
3. IEC Compliance: The 685 654 MX-A circuit breaker is designed to meet international IEC standards, providing top-quality performance and reliability in multiple electrical environments.
4. JIS/JEC Certification: It is JIS/JEC certified, which means that it is constructed under rigorous Japanese and International Electrotechnical Commission (IEC) specifications for safety and reliability.
5. Contact Tripping Current: The breaker has a contact tripping current of 0.22A with a trip time of only 0.033 seconds, which provides for fast action in the event of an overload or short circuit.
6. Compact and Lightweight: Due to its weight of only 650 grams, this breaker is convenient to install and is designed for compact, space-saving applications with rapid installations.
7. MP Breaker Accessory: The 685 654 MX-A comes equipped with a 120-60Hz-20VA MP breaker accessory, offering more functionality for different electrical applications.
8. Durability and Safety: With its heavy-duty build, the 685 654 MX-A is designed to perform well under the demands of industrial applications for extended periods.
Applications:
⢠Industrial Uses: Perfect for heavy industrial uses that need constant circuit protection and monitoring. The breaker guarantees safety in factories, plants, and equipment that handle high electrical loads.
⢠Commercial Buildings: In commercial buildings, this circuit breaker offers vital protection for essential electrical systems, providing uninterrupted operations in offices, shopping spaces, and big complexes.
⢠Residential Applications: The breaker is also appropriate for domestic electrical systems, delivering consistent protection from electrical faults and guaranteeing household safety.
⢠Motor Protection: The 685 654 MX-A is typically employed in motor protection applications, stopping possible damage brought about by overloads or short circuits.
⢠Remote Trip Operations: For applications calling for remote disconnection or emergency shutdowns, the shunt trip mechanism provides a rapid and effective means to guarantee system safety.
This circuit breaker is a popular professional choice for high-quality, reliable, and effective protection of electrical circuits. No matter in industrial, commercial, or residential applications, it provides unmatched safety, performance, and peace of mind.
