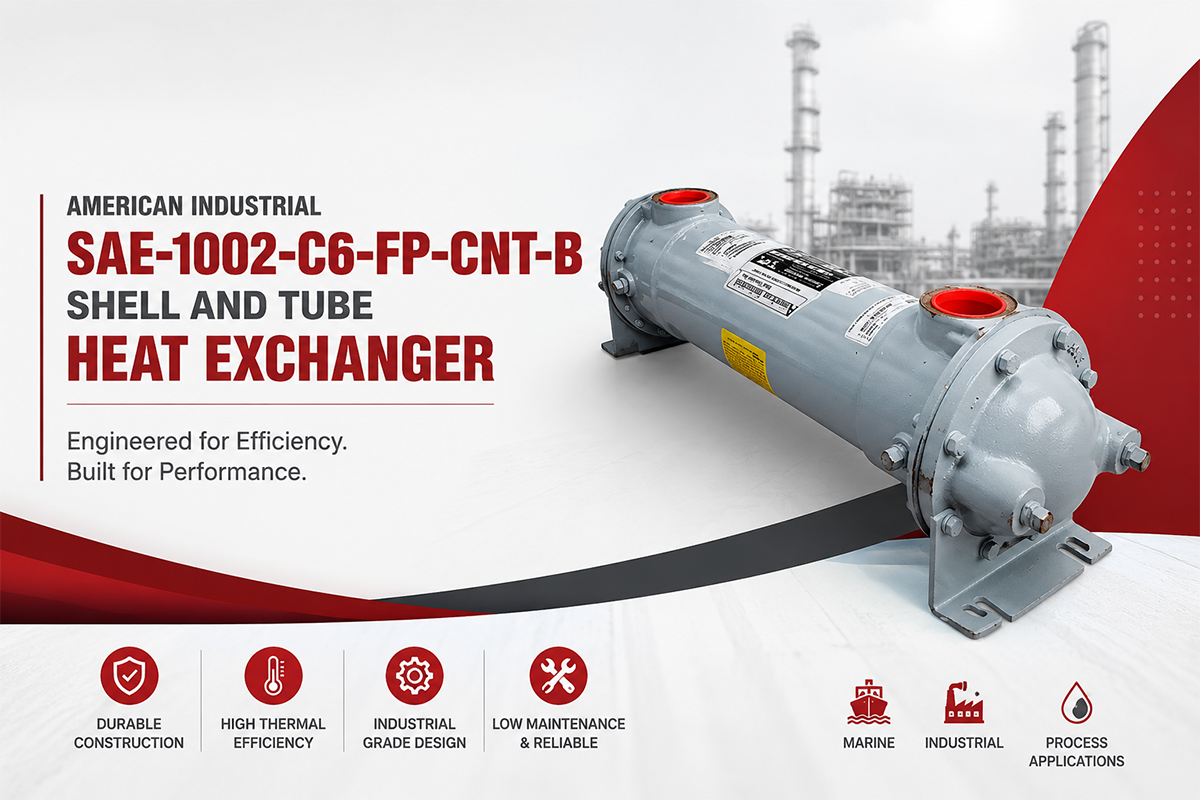

How the American Industrial SAE-1002-C6-FP-CNT-B-0918 Controls Heat in Demanding Systems

Introduction to the American Industrial SAE 1002 Heat Exchanger

Heat exchangers represent one of the most critical and ubiquitous components in industrial thermal management systems. The American Industrial SAE-1002-C6-FP-CNT-B shell and tube heat exchanger exemplifies the engineering excellence required for demanding heat transfer applications across marine, oil and gas, chemical processing, and power generation industries. Manufactured by American Industrial Heat Transfer, Inc. and distributed through National Oilwell Varco's extensive supply network, this heat exchanger delivers reliable thermal performance under operating conditions that would compromise lesser equipment.

Shell and tube heat exchanger technology has remained the dominant architecture for industrial heat transfer for over a century, and for good reason. The design offers exceptional versatility in handling a wide range of fluid types, temperatures, pressures, and flow rates. The SAE-1002-C6-FP-CNT-B configuration represents a optimized balance of thermal performance, pressure containment, mechanical durability, and maintainability that makes it suitable for the most challenging industrial and marine applications.

Complete Technical Specifications

Shell and Tube Heat Exchanger Design Principles

The American Industrial SAE-1002-C6-FP-CNT-B employs the classic shell and tube architecture that has proven its reliability across virtually every industrial sector. In this design, one fluid flows through a bundle of tubes mounted within a cylindrical shell, while a second fluid flows around the outside of the tubes within the shell space. Heat transfers through the tube walls from the hotter fluid to the cooler fluid, enabling precise thermal management of industrial processes.

The SAE-1002-C6-FP-CNT-B designation encodes specific design features that define this heat exchanger's configuration. The shell-side design pressure of 300 Psi provides substantial margin for high-pressure applications including hydraulic oil cooling, compressor intercooling, and process heating duties. The 150 Psi tube-side rating accommodates a wide range of process fluids at moderate to high pressures. The 300°F maximum temperature rating ensures reliable operation in applications involving hot process fluids, steam heating, and thermal oil systems.

Pressure and Temperature Capabilities

Understanding the pressure and temperature capabilities of the SAE-1002-C6-FP-CNT-B is essential for proper application engineering. The 300 Psi shell-side pressure rating represents the maximum allowable working pressure (MAWP) for the shell chamber, beyond which safety relief devices must activate to prevent overpressure conditions. This generous pressure rating accommodates applications with significant hydrostatic head, pump discharge pressures, and pressure transients that occur during normal system operation.

The 150 Psi tube-side rating reflects the design pressure for the tube bundle assembly, which includes the tubes themselves, tube sheets, and channel covers. Differential pressure between shell and tube sides must be maintained within design limits to prevent tube deformation, tube sheet distortion, or gasket failure. The 300°F temperature limit applies to the metal temperatures of pressure-boundary components and must not be exceeded even transiently to prevent material degradation and loss of pressure containment integrity.

Materials of Construction and Manufacturing Quality

American Industrial Heat Transfer, Inc. manufactures the SAE-1002-C6-FP-CNT-B heat exchanger using materials selected for compatibility with common industrial fluids and resistance to corrosion, erosion, and fatigue. Carbon steel shells, tube sheets, and channel components provide economical pressure containment for non-corrosive applications. Tube materials may include copper alloys for excellent heat transfer performance, or stainless steels for corrosion resistance when handling aggressive process fluids.

Manufacturing in the USA under National Oilwell Varco's quality assurance program ensures that each heat exchanger meets or exceeds applicable industry standards including ASME Section VIII pressure vessel requirements. Welding procedures are qualified in accordance with ASME Section IX, and non-destructive examination techniques verify weld integrity. Hydrostatic testing at elevated pressure confirms pressure tightness before shipment. This rigorous quality program provides confidence that each SAE-1002-C6-FP-CNT-B heat exchanger will perform safely and reliably throughout its design service life.

Applications in Marine and Industrial Environments

The American Industrial SAE-1002-C6-FP-CNT-B heat exchanger serves critical thermal management functions across diverse marine and industrial applications. On vessels and offshore platforms, these heat exchangers cool engine jacket water, lubricating oil, hydraulic power units, and compressed air systems. The robust construction and American Bureau of Shipping (ABS) compatible design philosophy ensure reliable operation in the corrosive marine atmosphere and under the vibration conditions experienced aboard ships.

In industrial facilities, the SAE-1002 series heat exchangers handle duties including process water heating, chemical reactor temperature control, compressor cooling, and HVAC system heat recovery. The wide range of available materials and configurations allows system designers to specify heat exchangers precisely matched to each application's thermal, hydraulic, and chemical requirements. Standardized dimensions and connection patterns simplify integration with existing piping systems and reduce installation costs.

Installation, Operation, and Maintenance

Proper installation of the SAE-1002-C6-FP-CNT-B heat exchanger requires attention to piping support, thermal expansion accommodation, and accessibility for maintenance activities. Inlet and outlet piping should be independently supported to prevent excessive nozzle loads that could distort tube sheets and compromise tube-to-tube-sheet joints. Flexible connectors or expansion loops may be required to accommodate differential thermal expansion between the heat exchanger and connected piping.

Operational best practices include maintaining flow rates within design ranges to prevent erosion, vibration, and fouling. Temperature and pressure monitoring should alert operators to abnormal conditions before equipment damage occurs. Periodic maintenance including tube cleaning, gasket replacement, and corrosion inspection maximizes service life and thermal performance. Proper water treatment for cooling water applications prevents scale deposition and microbiological fouling that degrade heat transfer efficiency.

Heat Transfer Fundamentals and Design Optimization

The thermal performance of a shell and tube heat exchanger depends on multiple design parameters that must be optimized for each specific application. The American Industrial SAE-1002-C6-FP-CNT-B incorporates design features that maximize heat transfer efficiency while maintaining mechanical reliability and serviceability. Tube layout patterns, baffle spacing, and shell-side flow path geometry are engineered to promote turbulent flow on both shell and tube sides, enhancing heat transfer coefficients and minimizing fouling tendencies that degrade performance over time.

The heat transfer surface area provided by the tube bundle is sized to meet specified thermal duty requirements at design flow rates and temperature conditions. Conservative design margins ensure that the heat exchanger maintains adequate performance as tubes gradually foul during operation and as flow rates fluctuate within expected ranges. The counterflow or parallel flow arrangement of shell and tube streams is selected based on temperature cross considerations and the specific thermal requirements of each application.

Fouling Management and Tube Cleaning Provisions

Fouling is the gradual accumulation of deposits on heat transfer surfaces that reduces thermal performance and increases pressure drop across the heat exchanger. The SAE-1002-C6-FP-CNT-B is designed with fouling management considerations that facilitate maintenance and extend operational intervals between cleaning. Removable channel covers provide access to tube ends for mechanical cleaning with brushes or high-pressure water jets. Chemical cleaning connections enable circulation of cleaning solutions that dissolve scale deposits without disassembling the heat exchanger.

Water treatment programs that control scale-forming mineral concentrations, biological growth, and corrosion products in cooling water systems are essential for maintaining heat exchanger performance and service life. Proper water treatment can reduce fouling rates by orders of magnitude compared to untreated water, transforming maintenance requirements from frequent cleaning to periodic monitoring and chemical adjustment. American Industrial Heat Transfer, Inc. provides guidance on water treatment practices appropriate for their heat exchangers and specific application conditions.
