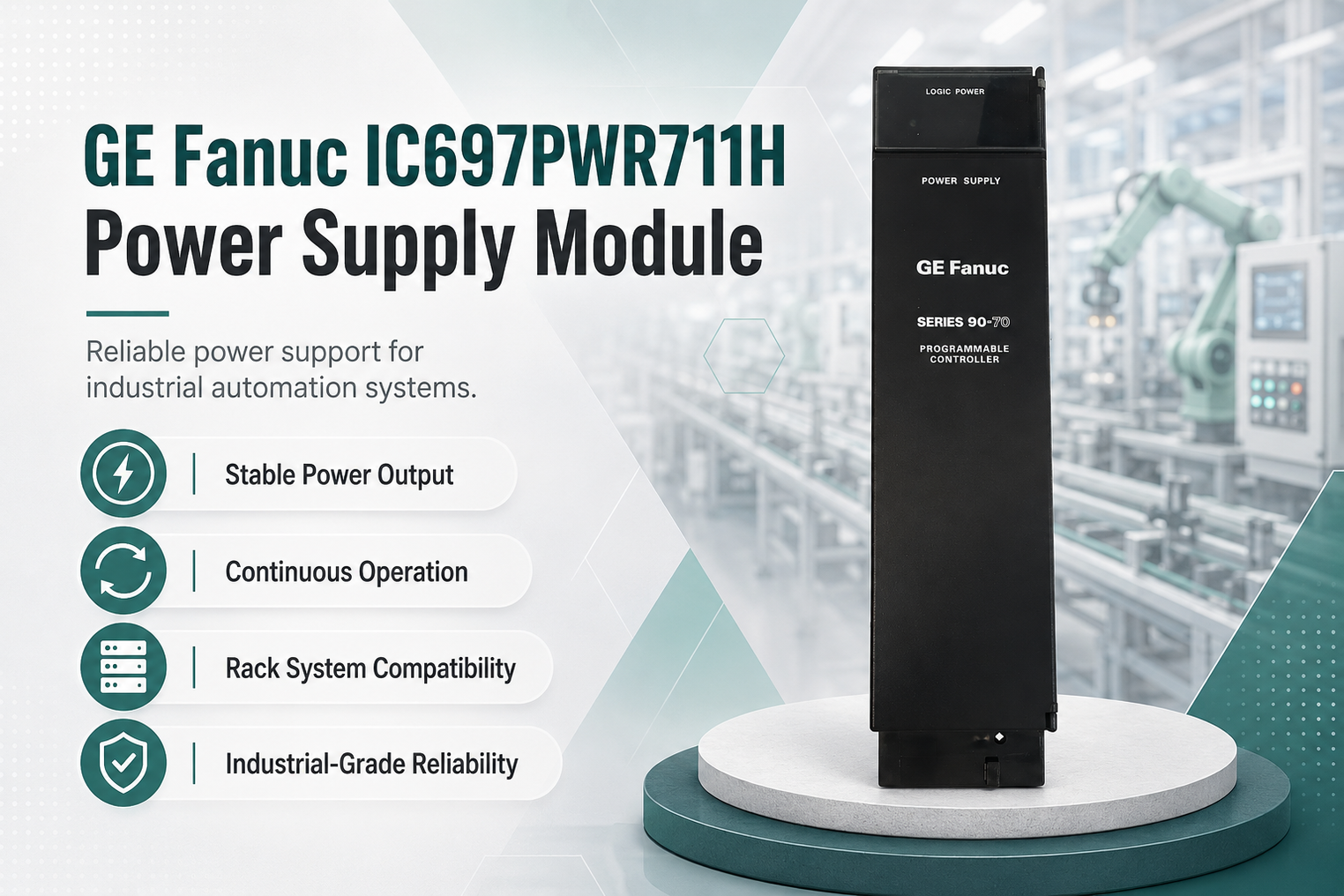

Improving Control System Stability with the GE Fanuc IC697PWR711

The GE Fanuc IC697PWR711H Power Supply Module is the backbone of reliable power delivery for GE's acclaimed Series 90-70 programmable controller platform. This robust 100-watt power supply converts standard AC or DC input voltages into the precisely regulated DC voltages required by Series 90-70 CPU modules, I/O cards, communication interfaces, and specialty function modules. Engineered to GE Fanuc's exacting standards and manufactured in Charlottesville, Virginia, USA, the IC697PWR711H delivers the clean, stable power that industrial control systems depend on for accurate, uninterrupted operation in the most demanding environments.

Power supplies are the most critical yet often overlooked components in any programmable controller system. While CPUs and I/O modules receive most of the attention during system design, it is the power supply that ultimately determines system reliability. A marginal or failing power supply can cause intermittent faults, corrupted data, random resets, and catastrophic system failures that result in costly production downtime. The IC697PWR711H addresses these concerns with generous power capacity, comprehensive protection features, and hazardous location certifications that attest to its suitability for mission-critical applications.

Power Architecture for Industrial Control Systems

Industrial programmable controllers require multiple DC voltage rails to power the various electronic circuits within the system. The Series 90-70 platform, like most PLC systems, requires +5V DC for logic circuits, +12V DC for analog I/O and communication circuits, and -12V DC for certain analog functions. The IC697PWR711H power supply generates all three of these voltage rails from a single AC or DC input, eliminating the need for separate external power supplies and simplifying system wiring.

The power supply's architecture incorporates several features designed to maximize reliability. Input surge protection guards against voltage transients that can damage sensitive electronic components. Overcurrent protection on each output rail prevents damage in the event of a short circuit in a connected module. Thermal shutdown circuitry protects the power supply from overheating in the event of inadequate ventilation or excessive ambient temperatures. These protection mechanisms work together to ensure that the power supply fails safely without propagating damage to expensive CPU and I/O modules.

Comprehensive Technical Specifications

The IC697PWR711H power supply delivers a comprehensive set of electrical specifications that meet the requirements of fully populated Series 90-70 racks. System designers can confidently specify this power supply knowing that it provides sufficient power headroom for current modules and future expansion:

• Series: GE Fanuc Series 90-70 Logic Power, programmable controller power supply module
• AC Input: 120/240 VAC auto-ranging input at 1.4A/0.7A, 50/60 Hz for universal power compatibility
• DC Input: 125 VDC at 1.4A for battery-backed or DC-only installations
• +5V Output: 20A capacity powering all logic circuits in the rack
• +12V Output: 2A capacity for analog I/O and communication modules
• -12V Output: 1A capacity for specialized analog functions
• Total Power: 100 watts total output capacity supporting fully populated racks
• Overcurrent Protection: 2A/250V fuse protection on each output rail
• Terminal Torque: 12 in-lb (1.3 N-m) for secure wire connections
• Wiring: 75°C copper conductors required per UL specifications
• Hazardous Location: Class I Division 2 Groups A, B, C, D rated with Temp Code T4
• Origin: Made in Charlottesville, VA, USA (part number 3293699-819)
• Weight: 1.840 kg

Hazardous Location Certification

The Class I Division 2 certification with Temperature Code T4 qualifies the IC697PWR711H for installation in hazardous classified areas where flammable gases or vapors may occasionally be present. The Temp Code T4 rating indicates that the equipment surface temperature will not exceed 135°C under any operating condition, which is below the auto-ignition temperature of most flammable gases encountered in industrial settings. This certification eliminates the need for explosion-proof enclosures in Division 2 areas, significantly reducing installation costs and simplifying maintenance access.

The power supply's hazardous location certification is particularly valuable in industries such as oil and gas, chemical processing, pharmaceutical manufacturing, and paint production, where classified areas are common. By specifying a C1D2-rated power supply, system designers can standardize on a single power supply model for both hazardous and non-hazardous areas, simplifying spare parts inventory and reducing the complexity of system documentation. The certification also provides peace of mind that the power supply meets recognized safety standards for these demanding applications.

Power Budget Planning and System Sizing

Proper power budget planning is essential when designing a Series 90-70 control system. Each module installed in the rack consumes power from the supply's +5V, +12V, and -12V rails. The IC697PWR711H provides 20A on the +5V rail, which is typically the most heavily loaded. System designers must calculate the total current draw of all installed modules and ensure that it does not exceed the power supply's rated capacity, with a recommended safety margin of at least 20% to accommodate future expansion and account for variations in module power consumption.

GE provides detailed power consumption specifications for each Series 90-70 module in the product documentation. By summing the current requirements for the CPU module, all I/O modules, communication modules, and any specialty modules, designers can determine whether a single IC697PWR711H is sufficient or whether additional power supplies are needed. For racks that exceed the capacity of a single supply, multiple power supplies can be installed to share the load, or higher-capacity power supply models can be specified.

Installation and Safety Considerations

The IC697PWR711H installs in the leftmost slot of the Series 90-70 rack, which is designated for power supply modules. The AC input connections are made to a terminal block on the module front panel using 75°C rated copper conductors. The terminal screws should be torqued to 12 in-lb (1.3 N-m) to ensure secure connections that will not loosen due to vibration or thermal cycling. The power supply chassis must be connected to earth ground through the rack grounding system.

All wiring must be performed by qualified electricians in accordance with local electrical codes and the National Electrical Code (NEC) in the United States. The input power circuit should be protected by an appropriately sized disconnect device and overcurrent protection. When installing in hazardous locations, all wiring must comply with the requirements of Article 501 of the NEC for Class I locations. Proper wire routing practices should be followed, with power wiring separated from low-voltage signal wiring to prevent electromagnetic interference.

Related GE Series 90-70 Products

Explore these complementary GE Series 90-70 and industrial automation products from Aeliya Marine Tech:

• GE Ethernet Interface Module – Network connectivity for Series 90-70 systems
• GE Programmable Controller – CPU modules for Series 90-70 racks
• Industrial I/O Module – Input/output modules for GE control systems
• HMI Touch Panel – Operator interface solutions for GE systems
• Industrial Automation Component – Quality-tested automation hardware
• Process Control Equipment – Instrumentation for industrial applications

Protection Circuits and Safety Features

The IC697PWR711H incorporates multiple layers of protection circuitry designed to ensure safe, reliable operation under both normal and abnormal conditions. Input overvoltage protection safeguards the power supply and connected modules from damage due to voltage transients that can occur on industrial power distribution systems. These transients, caused by switching operations, lightning strikes, or utility grid disturbances, can reach levels far exceeding normal line voltage. The power supply's surge protection circuits absorb and dissipate this excess energy before it can reach sensitive internal components.

Output overcurrent protection on each voltage rail prevents damage in the event of a short circuit in a connected module. If an output current exceeds its rated limit, the protection circuit activates to limit current flow and protect both the power supply and the faulty module. Over-temperature protection monitors the internal temperature of the power supply and reduces output or shuts down completely if thermal limits are exceeded, preventing catastrophic failure and fire hazards. These comprehensive protection features provide peace of mind that the power supply will fail safely without propagating damage to expensive CPU and I/O modules.

Reliability Metrics and Mean Time Between Failures

The IC697PWR711H power supply is designed and manufactured to achieve a Mean Time Between Failures (MTBF) that exceeds the operational requirements of continuous-process industries. GE employs conservative design practices, including derating of electronic components well below their maximum specifications, to maximize service life. Thermal design receives particular attention, as excessive temperature is the primary cause of premature failure in power supplies. The IC697PWR711H's efficient design minimizes internal heat generation, while its layout optimizes airflow through the module to maintain safe operating temperatures.

DC Input Operation and Battery Backup Systems

In addition to AC input operation, the IC697PWR711H supports 125 VDC input, making it ideal for applications requiring battery backup or operation from DC power distribution systems. Facilities with uninterruptible power supply (UPS) systems often prefer DC-powered control systems because batteries can be connected directly to the DC bus without the efficiency losses associated with DC-to-AC conversion. In the event of AC power failure, the battery system maintains DC bus voltage, allowing the control system to continue operating seamlessly until backup generators come online or a controlled shutdown can be executed.

Substation automation applications particularly benefit from the DC input capability, as electrical substations typically maintain 125 VDC battery systems for protection relaying and control purposes. The IC697PWR711H can operate directly from this substation battery, eliminating the need for separate power supplies and ensuring that the control system remains operational during AC system disturbances. The wide input voltage range accommodates the voltage variations that occur as batteries charge and discharge, maintaining stable output regulation throughout the battery duty cycle.
