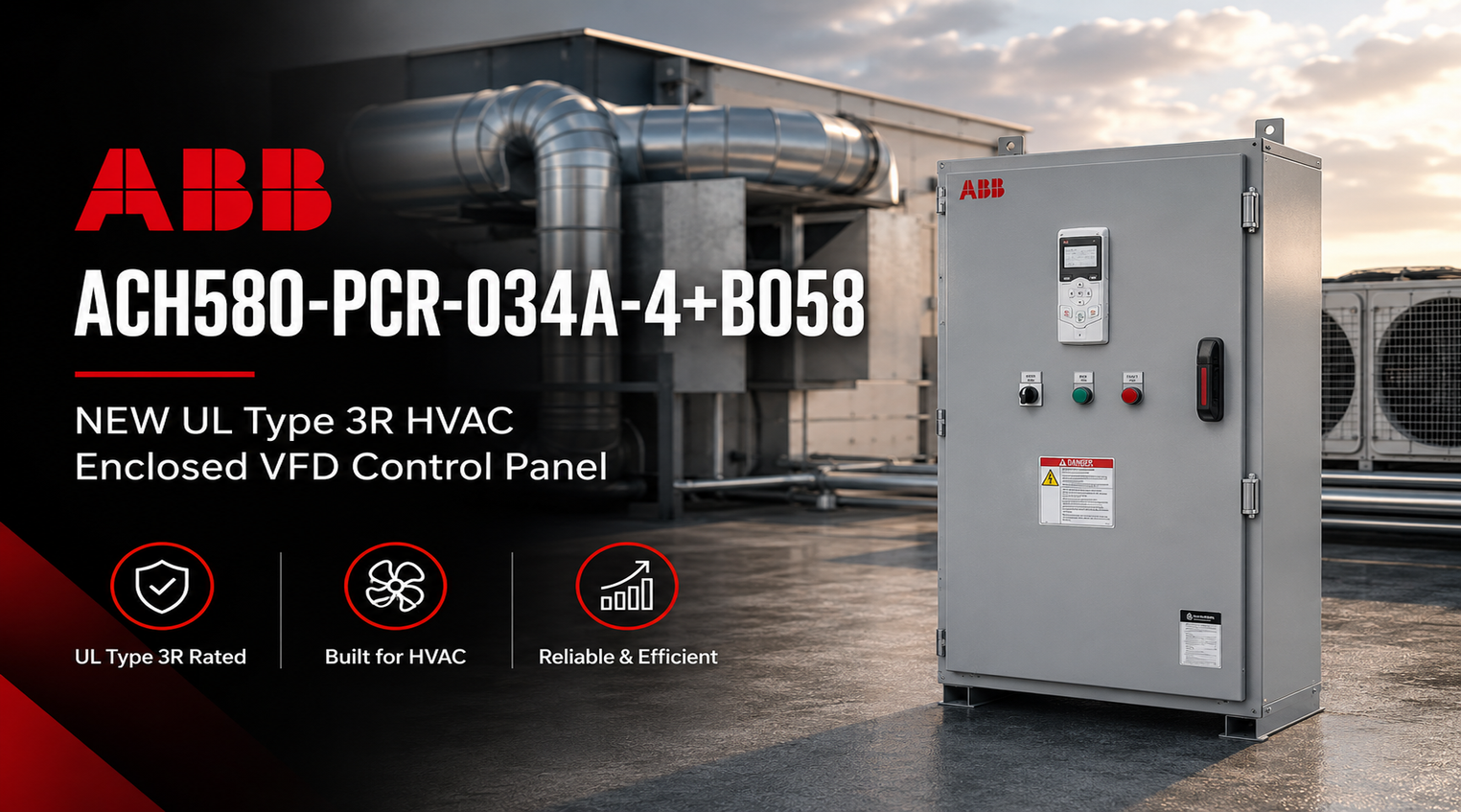

ABB ACH580-PCR-034A-4+B058 NEW UL Type 3R HVAC Enclosed VFD Control Panel

The ABB ACH580-PCR-034A-4+B058 HVAC Enclosed Control Panel is a factory-built, ready-to-install variable frequency drive (VFD) solution engineered specifically for heating, ventilation, and air conditioning applications. At Aeliya Marine Tech, we offer this NEW ABB ACH580 enclosed drive — delivering a complete, weather-resistant HVAC drive system that eliminates the engineering, assembly, and compliance validation typically required when building control panels from components.

This ABB ACH580 HVAC VFD arrives in a fully integrated UL Type 3R enclosure with a short-circuit current rating (SCCR) of 100kA, making it suitable for direct installation in outdoor or wash-down environments without additional protective housings. With an output current of 34A at 440-480VAC and a motor power range of 5-95 HP, this enclosed control panel handles the vast majority of commercial and industrial HVAC fan, pump, and compressor applications — from chilled water systems to air handling units and cooling tower installations.

As a NEW factory-sealed unit from ABB, this ACH580 panel carries full manufacturer warranty support, the latest firmware revision, and ABB's unmatched global service network. For facility managers, MEP contractors, and controls integrators seeking a proven HVAC drive solution with zero assembly time, this enclosed panel represents the fastest path from delivery to operational status.

Product Overview: ABB ACH580 HVAC Enclosed Control Panel

The ABB ACH580 is ABB's flagship drive platform for HVAC applications, incorporating decades of motor control expertise into a purpose-built solution for fan and pump automation. The ACH580-PCR-034A-4+B058 configuration combines the ACH580 drive with a pre-engineered control panel that includes circuit breakers, fuses, contactors, overload relays, and terminal blocks — all coordinated, wired, and tested at the ABB factory.

The "PCR" designation indicates the packaged drive configuration with a NEMA/UL Type 3R enclosure, while "+B058" specifies the factory-installed options that optimize this unit for HVAC duty. The result is a variable frequency drive system that ships as a single catalog number and installs with only power input, motor output, and control signal connections — reducing field wiring time by up to 80% compared to building a panel from individual components.

For commercial buildings, data centers, hospitals, universities, and industrial facilities, the ACH580 enclosed panel delivers BACnet/IP and Modbus RTU built-in communication, ABB's HVAC-specific application macros, and energy optimization algorithms that can reduce fan and pump energy consumption by 30-50% compared to constant-speed operation.

Technical Specifications

Parameter	Specification
Model	ACH580-PCR-034A-4+B058
Drive Family	ABB ACH580 HVAC Drive
Input Voltage	440-480 VAC, 3-Phase, 50/60 Hz
Output Current	34 A (Normal Duty)
Output Frequency	0-500 Hz (configurable)
Motor Power Range	1-350 HP (configurable, optimal at 5-95 HP)
Enclosure Type	UL Type 3R / NEMA 3R — Rainproof, Sleet Resistant
SCCR Rating	100 kA Short Circuit Current Rating
Overload Capacity	110% continuous, 150% for 1 minute
Control Method	Direct Torque Control (DTC), Scalar (V/Hz)
Communication	BACnet/IP, Modbus RTU, Modbus TCP/IP
Keypad	Built-in HVAC keypad with Hand-Off-Auto
Protection	Overcurrent, Overvoltage, Undervoltage, Ground Fault, Motor Thermal, Phase Loss
Operating Temperature	-4°F to 104°F (-20°C to 40°C)
Condition	NEW — Factory Sealed

Key Features & Benefits

• NEW Factory-Sealed Condition: This is a brand-new, never-installed ABB ACH580 enclosed panel. You receive full manufacturer warranty coverage, the latest firmware, and all factory documentation — complete peace of mind for critical HVAC installations.
• UL Type 3R / NEMA 3R Enclosure: The rainproof, sleet-resistant enclosure is designed for outdoor mounting on rooftops, mechanical yards, or building exteriors without requiring additional protective housings — saving $800-2,000 in external enclosure costs.
• 100kA SCCR Rating: The 100,000-amp short-circuit current rating meets the requirements of virtually all commercial and industrial electrical distribution systems, ensuring compliance with NEMA and NEC standards for fault current withstand.
• Pre-Engineered & Factory Tested: All internal wiring, component coordination, overload settings, and protection settings are engineered and validated at ABB's UL 508A listed panel shop. Field installation requires only power and motor connections.
• Built-in BACnet/IP Communication: Native BACnet/IP support enables direct integration with building automation systems (BAS) from Johnson Controls, Honeywell, Siemens, Trane, and Carrier — no external protocol gateway required.
• HVAC-Optimized Application Macros: Pre-configured macros for supply/return fans, chilled/hot water pumps, cooling tower fans, and compressors reduce startup commissioning time from hours to minutes.
• Direct Torque Control (DTC): ABB's patented DTC technology provides superior motor control accuracy, fast torque response, and exceptional low-speed performance — outperforming traditional V/Hz control by 15-20% in dynamic applications.
• Energy Optimization: Built-in energy calculators and automatic flux optimization reduce energy consumption by 30-50% compared to across-the-line or soft starter operation — with payback periods often under 18 months.
• Fireman's Override & Smoke Control: Dedicated fireman's override input and smoke purge mode meet NFPA 92 requirements for stairwell pressurization and smoke evacuation systems — essential for life safety compliance.
• Hand-Off-Auto Keypad: The built-in HOA keypad with HVAC-specific display provides intuitive local control, real-time parameter monitoring, and fault diagnostics without requiring a laptop or external programming tool.
• Fire & Smoke Mode Integration: Pre-programmed fire mode overrides all local and remote commands to run fans at full speed during smoke evacuation or stairwell pressurization events — meeting life safety code requirements.
• Sleep & Wake Functions: Intelligent sleep mode stops the motor when demand drops below a configurable threshold, then automatically restarts when demand returns — eliminating energy waste from continuous low-flow operation.



Industrial & Commercial Applications

The ABB ACH580 enclosed control panel is purpose-engineered for HVAC applications across commercial, institutional, and industrial facilities. The 34A output rating and UL Type 3R enclosure make it ideal for the following duty profiles:

Commercial Building HVAC Systems

Office buildings, retail centers, hotels, and mixed-use developments rely on the ACH580 for supply and return air handling units (AHUs), variable air volume (VAV) fan systems, and exhaust fans. The BACnet/IP interface integrates seamlessly with modern building management systems, while the energy optimization features deliver the utility rebates and LEED points that facility managers prioritize. The NEMA 3R enclosure permits rooftop installation without additional weather protection.

Healthcare Facilities

Hospitals, clinics, and laboratories require precise airflow control for operating suites, isolation rooms, and pharmacy cleanrooms. The ACH580's accurate speed control maintains constant pressure relationships between adjacent spaces — critical for infection control compliance. The smoke purge mode supports life safety requirements for corridor pressurization during fire events.

Data Centers & Critical Facilities

Data center cooling systems demand 24/7/365 reliability and precise temperature control. The ACH580 controls computer room air handler (CRAH) fans, chilled water pumps, and cooling tower fans with the redundancy and fault tolerance required for Tier III and Tier IV facilities. The sleep/wake function adapts cooling capacity to IT load variations, dramatically reducing PUE (Power Usage Effectiveness) metrics.

Industrial Process Cooling

Manufacturing facilities, food processing plants, and pharmaceutical production require process chilled water, cooling tower circulation, and ventilation systems. The 100kA SCCR rating handles the high fault currents present in industrial electrical rooms, while the variable frequency drive soft-start capability eliminates water hammer in pump systems and extends mechanical seal life by 40-60%.

Educational & Government Buildings

Schools, universities, courthouses, and municipal buildings benefit from the ACH580's compliance with energy efficiency mandates and building codes. The ABB ACH580 meets ASHRAE 90.1 energy standards and qualifies for utility rebate programs in most jurisdictions — reducing the total cost of ownership well below the initial purchase price.

Marine & Offshore HVAC

Shipboard HVAC systems, offshore platform living quarters, and FPSO accommodation modules require corrosion-resistant drives in harsh marine atmospheres. The UL Type 3R enclosure provides the environmental protection needed for salt-air environments, while the 440-480V input matches international marine electrical standards.

Why Buy From Aeliya Marine Tech?

Aeliya Marine Tech is a trusted global supplier of industrial automation, marine electrical, and HVAC control equipment. We source directly from manufacturers, authorized distributors, and verified surplus channels to bring our customers genuine products at competitive prices with professional support.

• Genuine NEW Product: This ABB ACH580-PCR-034A-4+B058 is a brand-new, factory-sealed unit with original ABB packaging, documentation, and warranty registration card. No gray market risk, no refurbished uncertainty.
• 30-Day Warranty: All products purchased from Aeliya Marine Tech are covered by our 30-day satisfaction guarantee. If the unit is defective or not as described, we provide replacement or full refund.
• Free Worldwide Shipping: We ship globally using professional freight packaging designed for sensitive electronic equipment. Your enclosed panel arrives protected from shock, moisture, and electrostatic discharge.
• Technical Consultation: Unsure if the 34A rating matches your motor? Our engineering team will review your motor nameplate data, application requirements, and electrical distribution specifications to confirm compatibility before you buy.
• Bulk & Contractor Pricing: MEP contractors and systems integrators purchasing multiple units receive volume pricing. Contact our sales team for project-specific quotations.
• Export Documentation: We provide commercial invoices, packing lists, certificates of origin, and HS code declarations for smooth customs clearance in any destination country.

How to Order & Installation Guide

Purchasing your New ABB ACH580 HVAC enclosed control panel from Aeliya Marine Tech is a simple process:

1. Click "Buy Now" above to proceed to checkout, or contact our sales team for a formal quotation.
2. Confirm Specifications: Our team will verify your motor full-load amps, supply voltage, and enclosure environment to ensure this 34A unit is properly sized for your application.
3. Secure Payment: We accept wire transfer, credit card, and PayPal. NET-30 terms are available for qualified commercial accounts.
4. Professional Shipping: Your enclosed panel ships on a pallet in custom crating with impact indicators and moisture barriers.
5. Installation Support: Our technicians are available by phone and email to guide mounting, power connection, motor wiring, and BACnet commissioning.

Installation Requirements

Install the ABB ACH580 enclosed control panel on a level, structurally rated wall or pad with adequate clearance (minimum 12 inches top and sides) for ventilation airflow. Connect 3-phase 480VAC supply to the labeled line terminals, motor leads to the load terminals, and control signals (start/stop, speed reference, BACnet Ethernet) to the terminal blocks. The enclosure includes a hinged door with padlock provision for security compliance.

Before energizing, verify the SCCR of your upstream protective device is coordinated with the panel's 100kA rating. Commission the drive using the built-in HVAC keypad — select the appropriate application macro (fan, pump, or compressor), enter your motor nameplate data, and set minimum/maximum frequency limits. BACnet/IP address configuration is performed through the integrated control panel menu.
