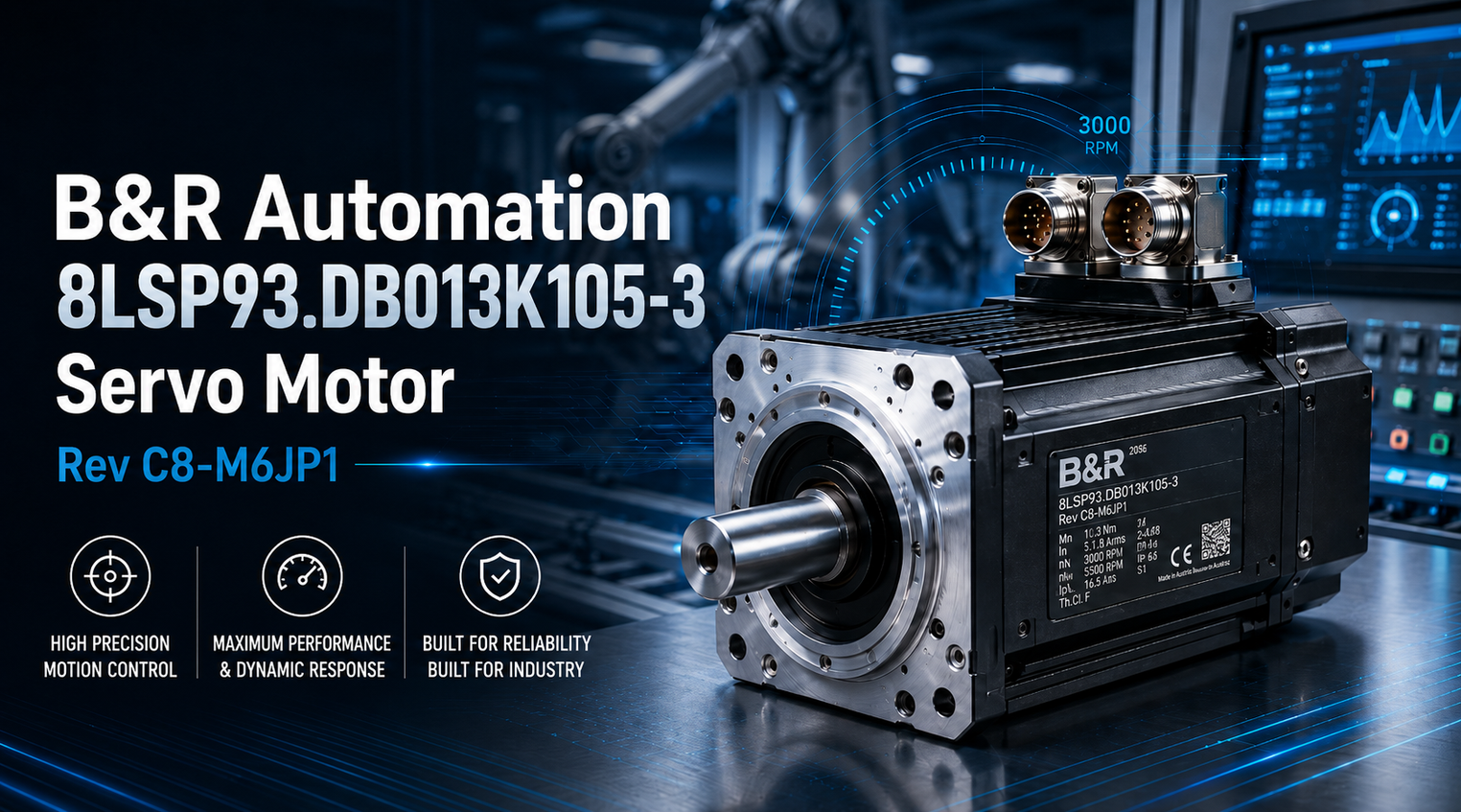

B&R Automation 8LSP93.DB013K105-3 Servo Motor — Rev C8-M6JP1

Introduction to the B&R 8LSP93 Servo Motor

When it comes to high-performance motion control in industrial automation, the B&R Automation 8LSP93.DB013K105-3 servo motor stands as a benchmark of precision engineering and reliability. Manufactured in Italy by B&R Industrial Automation — a global leader in automation technology now part of the ABB group — this servo motor delivers exceptional torque density, precise positioning accuracy, and robust construction designed to withstand the harshest industrial environments.

The 8LSP93.DB013K105-3 is part of B&R's premium LSP series of synchronous servo motors, engineered specifically for demanding applications requiring high dynamic response and continuous torque output. With a rated torque of 160 Nm and a rated speed of 1300 RPM, this motor provides the power and precision needed for CNC machinery, robotic arms, packaging lines, and heavy-duty material handling systems. Whether you are upgrading an existing automation line or building a new motion control system from the ground up, this Italian-built servo motor represents a proven, cost-effective solution that balances performance with long-term operational reliability.

At Aeliya Marine Tech, we specialize in sourcing and supplying premium used industrial automation equipment that has been thoroughly inspected and tested to meet stringent quality standards. This B&R servo motor is available with our standard 30-day warranty, giving you confidence in your investment. With a substantial weight of 145 kg, the motor's heavy-duty construction reflects its industrial-grade design, built to deliver consistent performance over years of continuous operation.

Product Overview

The B&R 8LSP93.DB013K105-3 is a brushless permanent magnet synchronous servo motor designed for high-precision motion control applications. Its robust construction and advanced electromagnetic design enable it to deliver outstanding torque-to-inertia ratios, resulting in rapid acceleration and deceleration cycles that are essential for modern production environments. The motor features a compact frame size relative to its torque output, making it easier to integrate into space-constrained machinery layouts without sacrificing performance.

This particular revision — Rev C8-M6JP1 — incorporates B&R's latest electromagnetic and thermal design improvements, ensuring maximum efficiency and thermal stability under continuous duty cycles. The motor is equipped with a 24VDC fan cooling system that provides active thermal management, allowing the unit to maintain peak performance even in high-ambient-temperature environments. The external fan ensures that heat is efficiently dissipated from the motor windings, extending insulation life and reducing the risk of thermal overload.

With an IP64 protection rating, the 8LSP93.DB013K105-3 is well-protected against dust ingress and water splashes from any direction. This level of environmental sealing makes it suitable for use in demanding industrial settings such as metalworking shops, food processing plants, and marine environments where moisture and particulate contamination are common concerns. The Class F insulation system further enhances thermal endurance, providing a temperature reserve that contributes to long service life and reduced maintenance requirements.

The motor operates at a nominal voltage of 400V AC, making it compatible with standard three-phase industrial power supplies and most modern servo drives available on the market today. Its high-efficiency design reduces energy consumption and operating costs, an important consideration for facilities running large numbers of servo axes simultaneously. For system integrators and maintenance engineers, the motor's straightforward mounting interface and standardized electrical connections simplify installation and commissioning procedures.

Technical Specifications

Key Features & Benefits

• High Torque Output: With a rated torque of 160 Nm and stall torque of 180 Nm, this servo motor handles heavy-duty industrial loads with ease, making it ideal for applications requiring significant continuous power delivery.
• Active Fan Cooling: The integrated 24VDC fan cooling system provides superior thermal management compared to naturally ventilated designs, enabling the motor to maintain rated torque output under demanding ambient conditions without derating.
• IP64 Environmental Protection: Dust-tight and protected against water splashing from all directions, this motor is suitable for use in challenging environments including marine, food processing, and heavy industrial settings.
• Class F Insulation System: The high-temperature insulation system provides substantial thermal margin over Class B alternatives, resulting in longer winding life, improved reliability, and reduced risk of insulation failure.
• Italian Manufacturing Quality: Built in Italy by B&R Industrial Automation, this servo motor benefits from European precision manufacturing standards and rigorous quality control processes.
• 400V Compatibility: Designed for standard three-phase 400V industrial supplies, the motor integrates seamlessly with most modern servo drive systems without requiring additional transformers or voltage converters.
• Compact Power Density: B&R's advanced electromagnetic design delivers exceptional torque per unit volume, saving valuable machine space and enabling more compact overall system designs.
• Smooth Low-Speed Operation: The precision-engineered rotor and stator geometry minimize cogging torque, ensuring smooth motion at low speeds — a critical requirement for applications such as welding, coating, and precision assembly.

Industrial Applications

CNC Machine Tool Axis Drives

In modern CNC machining centers, precise axis positioning and rapid feed rates are essential for achieving tight tolerances and high surface finish quality. The B&R 8LSP93's 160 Nm torque output and 1300 RPM rated speed make it an excellent choice for driving the linear axes of large milling machines, lathes, and grinding equipment. The motor's high dynamic response enables fast tool changes and rapid traverse movements that reduce non-cutting time and improve overall machine productivity.

Robotic Motion Systems

Industrial robots require servo motors that can deliver precise, repeatable motion with fast acceleration and deceleration profiles. The 8LSP93.DB013K105-3 provides the torque density and responsiveness needed for medium-to-heavy payload robotic arms used in automotive assembly, palletizing, and material handling operations. Its smooth low-speed characteristics are particularly valuable for robotic welding and painting applications where velocity stability directly impacts process quality.

Packaging and Converting Machinery

High-speed packaging lines demand servo drives that can execute rapid, synchronized motion sequences for product feeding, cutting, sealing, and labeling. The B&R servo's 1300 RPM rated speed and high torque output enable it to power the main drive rollers and flying cutoff mechanisms in converting equipment, ensuring accurate registration and consistent product quality at high production rates.

Marine and Offshore Equipment

The combination of IP64 protection rating and robust mechanical construction makes this servo motor well-suited for marine applications where exposure to salt spray, humidity, and vibration is commonplace. Potential marine uses include winch drives, steering gear, crane systems, and auxiliary equipment on vessels and offshore platforms. The Class F insulation system provides additional protection against the thermal stresses associated with enclosed machinery spaces.

Material Handling and Conveyor Systems

Heavy-duty conveyor systems, overhead cranes, and automated storage/retrieval systems (AS/RS) require motors that can deliver sustained high torque for lifting and moving heavy loads. The B&R 8LSP93's 180 Nm stall torque provides the starting torque necessary to accelerate inertial loads from rest, while its continuous torque rating of 160 Nm ensures reliable operation during extended duty cycles.

Product Configuration & Setup

Configuring the B&R 8LSP93.DB013K105-3 servo motor for your application requires careful consideration of several factors to ensure optimal performance and reliability. The motor is designed to operate with B&R servo drives such as the ACOPOSmulti and ACOPOSmicro series, which provide advanced control algorithms for position, velocity, and torque modes. When pairing the motor with a servo drive, ensure that the drive's continuous and peak current ratings are matched to the motor's 43A rated current and 49A stall current respectively.

The 24VDC fan cooling requires a separate power supply connection. The fan must be powered whenever the motor is operational to prevent thermal overload. Install a suitable 24VDC power supply with adequate current capacity and consider adding a temperature monitoring relay that can interrupt the main drive enable signal in the event of cooling system failure. The fan's airflow path should be kept clear of obstructions, and filters (if used) should be inspected and cleaned at regular maintenance intervals.

For encoder feedback, B&R servo motors typically use high-resolution optical encoders or resolver systems. The specific feedback device on this motor should be verified before ordering cables and configuring the drive. Proper encoder alignment during installation is critical — follow B&R's commissioning guidelines to ensure that the drive can accurately commutate the motor and achieve the specified positioning precision.

Mechanical installation requires a rigid mounting surface and accurate shaft alignment with the driven load. The motor's 145 kg weight demands substantial support structure and lifting equipment during installation. Use precision alignment tools (laser or dial indicator) to minimize coupling misalignment, which can cause bearing wear, vibration, and premature failure. Flexible couplings are recommended to accommodate minor misalignment and protect the motor shaft from shock loads.

Related Products from Aeliya Marine Tech

Explore our comprehensive inventory of industrial automation and power distribution products:

• GE IS2020RKPSG2A Power Supply Module — 400W multi-voltage power supply for Mark VI Speedtronic turbine control systems
• Woodward 5466-1002 Power Supply — MicroNet Plus compatible power module for turbine control applications
• Supcon FW243X WebField Module — Distributed control system rack module for process automation
• Dongan ES-30360 Isolation Transformer — 10KVA three-phase isolation transformer for industrial power conditioning
• Schneider ATS48C59Q Soft Starter — Altistart 48 soft starter for motor starting applications
• Siemens 6SY7010-0AB41 Thyristor Module — SCR power module for industrial drive systems

Frequently Asked Questions (FAQ)

Q: What is the rated torque and speed of the B&R 8LSP93.DB013K105-3 servo motor?

A: This servo motor has a rated torque (Mn) of 160 Nm at a rated speed (Nn) of 1300 RPM. The stall torque is 180 Nm and the rated current is 43A. These specifications make it suitable for heavy-duty industrial automation applications requiring high continuous torque output.

Q: What does the IP64 protection rating mean for this motor?

A: IP64 means the motor is completely protected against dust ingress (the "6" rating) and protected against water splashing from any direction (the "4" rating). This makes the motor suitable for use in industrial environments where dust, coolant mist, and occasional water exposure may occur.

Q: What is the cooling method for this servo motor?

A: The B&R 8LSP93.DB013K105-3 uses an external fan cooled design powered by 24VDC. The active cooling system allows the motor to maintain its full rated torque output across a wide range of ambient temperatures. The fan must be powered continuously during motor operation to prevent thermal overload.

Q: What servo drives are compatible with this B&R motor?

A: This motor is designed to work with B&R ACOPOS series servo drives including ACOPOS multi and ACOPOS micro. It may also be compatible with third-party servo drives that support 400V three-phase motors with appropriate current ratings and encoder interfaces. Always verify drive compatibility with the specific motor feedback device before installation.

Q: What warranty is provided with this used servo motor?

A: Aeliya Marine Tech provides a 30-day warranty on this used B&R servo motor. The motor has been inspected and tested to verify operational integrity before listing. Free shipping and technical support are also included.

Q: Where is this servo motor manufactured?

A: The B&R 8LSP93.DB013K105-3 servo motor is manufactured in Italy by B&R Industrial Automation, a member of the ABB Group since 2017. Italian manufacturing ensures adherence to stringent European quality and safety standards.
