From Module Mounting to System Reliability: Understanding the ABB RF615 Rack

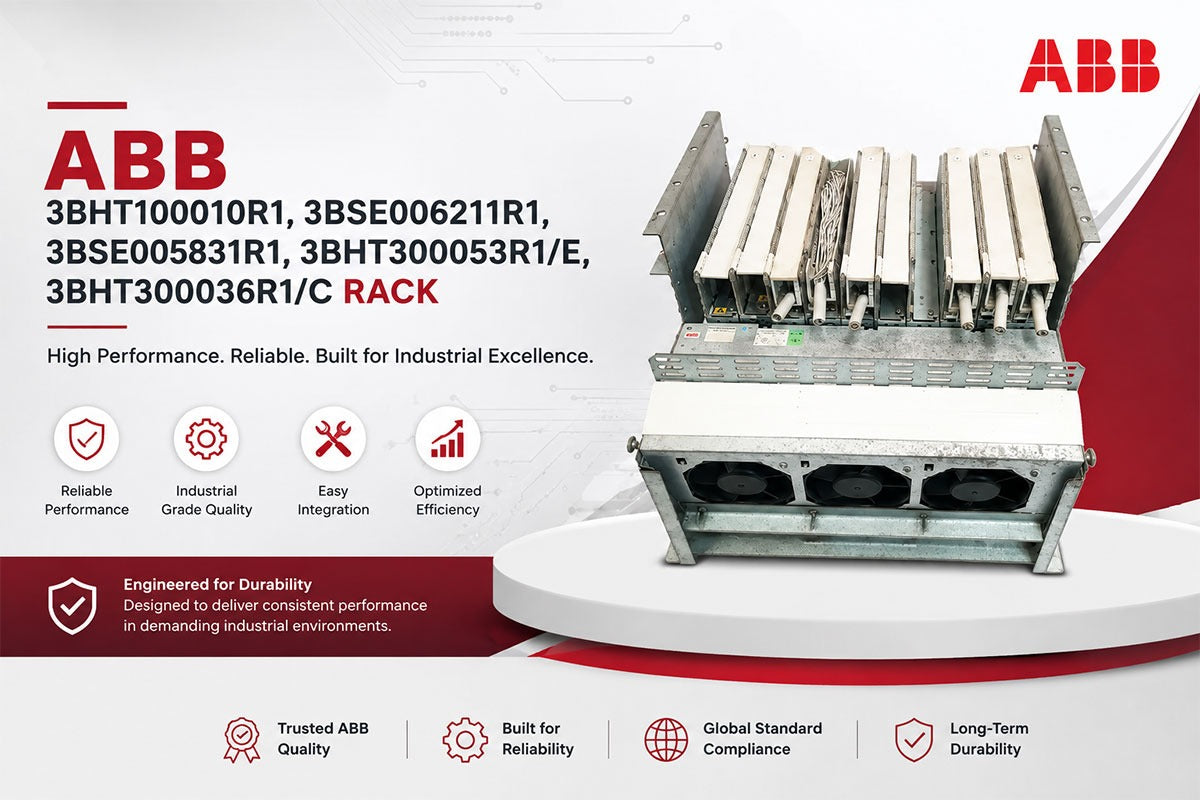

The structural backbone of any industrial control system is the module rack that houses, powers, and interconnects the various control, I/O, and communication modules. The ABB 3BHT100010R1, 3BSE006211R1, 3BSE005831R1, 3BHT300053R1/E, 3BHT300036R1/C Rack from ABB Industrial Systems represents a comprehensive, factory-integrated chassis assembly that provides the foundation for building robust automation systems. This RF615/RC621 series rack assembly combines Swedish engineering excellence with practical industrial design to deliver a platform that stands up to the most demanding operating environments.

Aeliya Marine Tech is pleased to offer this complete ABB control rack assembly to industries worldwide. Our extensive inventory of industrial automation products includes genuine ABB control system components backed by our commitment to quality and customer satisfaction.

RF615/RC621 Series: Engineering Excellence from ABB Industrial Systems

The RF615 and RC621 designations identify this rack as part of ABB's established industrial control system chassis family. Manufactured in Sweden by ABB Industrial Systems, this rack assembly embodies the precision engineering and quality manufacturing that have made ABB a global leader in industrial automation. At 25.710 kilograms, the rack provides a substantial, stable platform that resists the effects of vibration, shock, and thermal cycling common in industrial environments.

The comprehensive part number listing reflects the complete nature of this assembly. The 3BHT100010R1 identifies the primary RF615 rack chassis, while the 3BSE006211R1/006217R1 represents the RC621 rack controller module. The 3BSE005831R1 covers supporting components, and the 3BHT300053R1/E and 3BHT300036R1/C represent specific module configurations installed within the rack. Additional module references including 3BHT300036R1/1, 3BHT300008R1/B, 3BHT300002R1 4H, and 3BHT300002R1 4I complete the fully populated assembly.

Rack Construction and Design Features

Mechanical Engineering

The rack chassis is fabricated from high-grade steel with protective finishes that resist corrosion, scratching, and chemical attack. Precision-machined card guides ensure that modules slide smoothly into position while maintaining accurate alignment with the backplane connectors. Module retention mechanisms secure each card against vibration and shock, preventing connector fretting and intermittent contacts that could cause system faults.

The chassis design provides adequate spacing between modules to permit air circulation for cooling while maintaining electromagnetic compatibility between high-speed digital circuits and sensitive analog circuits. Grounding studs and bonding points throughout the chassis ensure that all modules share a common ground reference, minimizing noise pickup and ground loop issues.

Backplane Architecture

The backplane is the unsung hero of any module rack, providing the electrical pathways that interconnect all installed modules. The RF615 backplane is implemented on high-quality multilayer printed circuit board material, with dedicated power planes, ground planes, and signal layers optimized for high-speed digital communication and low-noise analog signal transfer. Gold-plated backplane connectors provide reliable, low-resistance contacts that maintain performance over thousands of insertion and extraction cycles.

Power Distribution System

The rack's power distribution system provides clean, regulated DC voltages to all installed modules. Input power filtering prevents noise on the supply lines from affecting module operation, while comprehensive overcurrent protection safeguards against damage from power supply faults or module failures. Decoupling capacitors on the backplane minimize the effects of switching transients, ensuring stable operation even when multiple outputs change state simultaneously.

Installed Module Capabilities

The modules factory-installed in this rack assembly provide a range of control and I/O capabilities. Processor modules execute control algorithms and manage system communication. I/O modules interface with field devices, converting real-world signals into digital data and translating digital commands into analog outputs or discrete switching actions. Communication modules connect the local rack to higher-level control networks, enabling data exchange with operator stations, historians, and enterprise systems.

The specific module complement in this assembly provides a balanced mix of processing power, I/O capacity, and communication flexibility suitable for medium-scale control applications. Additional modules can typically be added to expand I/O capacity or add specialized functions as application requirements evolve.

System Integration and Compatibility

This ABB rack assembly is designed for seamless integration within ABB's comprehensive automation ecosystem. It communicates natively with ABB's AC 800M controllers, Symphony Plus DCS, and other platforms, ensuring smooth data exchange and coordinated operation. The standardized communication protocols eliminate the compatibility issues that can arise when integrating equipment from multiple vendors.

For system integrators, this native compatibility translates into reduced engineering effort, faster commissioning, and lower total cost of ownership. Diagnostic capabilities built into the rack and modules enable rapid fault identification, minimizing troubleshooting time and reducing unplanned downtime.

Installation Guidelines

Proper installation is essential for achieving the full performance and reliability potential of the rack assembly. The rack should be mounted in an industrial enclosure that provides adequate environmental protection, with sufficient clearance around all sides for air circulation and maintenance access. All mounting points must be securely fastened, and the chassis must be properly bonded to the facility grounding system.

Field wiring should follow ABB's recommendations for wire sizing, shielding, and segregation of power and signal circuits. Proper cable management prevents strain on connector shells and maintains organized, serviceable wiring. Aeliya Marine Tech can provide installation guidance and recommendations based on our extensive field experience.

Applications in Industrial Automation

The RF615 rack assembly serves as the control foundation for a wide range of industrial applications. In process industries, it hosts the I/O and control modules that monitor temperature, pressure, flow, and level while executing regulatory and sequential control strategies. In manufacturing, it provides the fast I/O update rates and precise timing needed for motion control, packaging, and assembly operations.

In marine automation applications, the rack controls propulsion systems, power management, and auxiliary machinery. The robust construction and reliable operation are particularly valuable in the maritime environment where equipment must operate continuously despite vibration, humidity, and temperature extremes. Power generation facilities use similar rack assemblies for turbine control, generator protection, and auxiliary systems.

Quality Assurance and Support

Every rack assembly supplied by Aeliya Marine Tech undergoes thorough inspection to verify completeness, condition, and functionality. We source directly from ABB or authorized channels to ensure that our customers receive genuine products that meet all manufacturer specifications. Our quality assurance process includes visual inspection, physical verification of all modules, and secure packaging for safe transport.

Our commitment to customer satisfaction extends beyond product delivery. We provide technical support to assist with application questions, compatibility verification, and system integration guidance. Our team brings years of experience with ABB control systems to every customer interaction, ensuring that you receive knowledgeable, practical assistance.

Frequently Asked Questions

What modules are included in this rack assembly?

The assembly includes the RF615 rack chassis (3BHT100010R1), RC621 rack controller (3BSE006211R1/006217R1), supporting components (3BSE005831R1), and installed modules including 3BHT300053R1/E, 3BHT300036R1/C, 3BHT300036R1/1, 3BHT300008R1/B, and 3BHT300002R1 variants.

Where is this ABB rack assembly manufactured?

This rack assembly is manufactured in Sweden by ABB Industrial Systems, ensuring European quality standards and precision engineering.

What is the weight of the complete rack assembly?

The complete ABB RF615/RC621 rack assembly weighs approximately 25.710 kilograms, reflecting the robust steel chassis and fully populated module complement.

Can additional modules be added to this rack?

Depending on the available slot positions, additional ABB modules compatible with the RF615/RC621 series can typically be added to expand I/O capacity or add new functionality. Contact Aeliya Marine Tech for specific expansion guidance.

Does Aeliya Marine Tech provide warranty coverage?

Yes, Aeliya Marine Tech provides a 30-day technical warranty on all products. We offer replacement or refund options for any technical or functionality issues reported during the warranty period.
