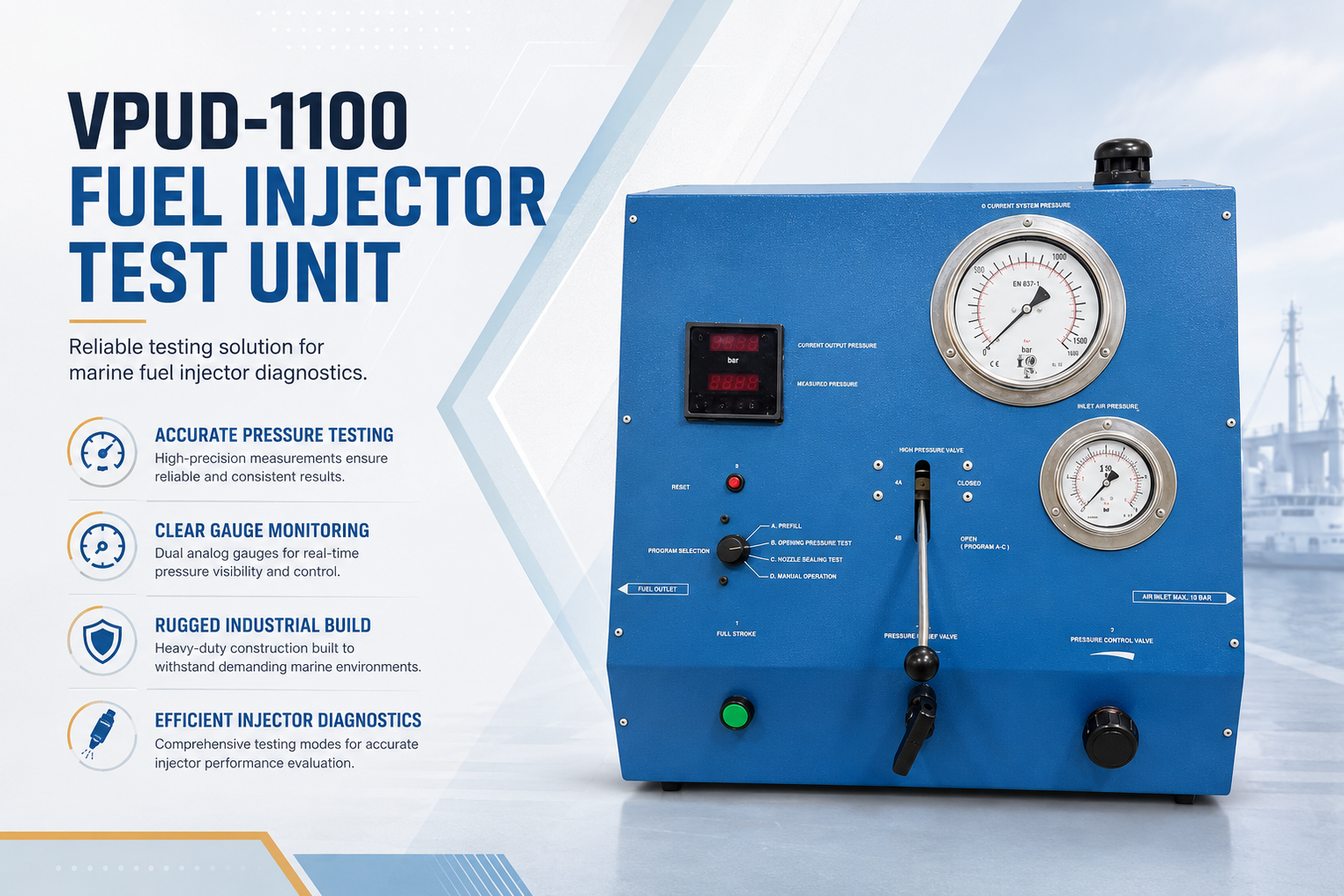

LOP Marine VPUD-1100: Advanced Pressure Testing for Fuel Injection Systems

The LOP Marine VPUD 1100 Fuel Injector Test Unit is a specialized piece of marine diagnostic equipment designed for testing, calibrating, and verifying the performance of marine diesel engine fuel injectors. Manufactured by LOP Marine (Obel-p Products) in Denmark, this precision test unit enables marine engineers and maintenance technicians to ensure that fuel injectors operate within manufacturer specifications, directly impacting engine efficiency, emissions compliance, and operational reliability. Properly calibrated injectors are essential for optimal combustion, fuel economy, and the prevention of engine damage caused by improperly atomized fuel delivery.

Fuel injector testing is a critical maintenance activity for any marine propulsion system or auxiliary engine. Over time, injectors can develop problems including nozzle wear, spring fatigue, carbon buildup, and orifice erosion that compromise their ability to deliver precisely metered fuel at the correct pressure and spray pattern. The VPUD 1100 provides the diagnostic capability to identify these issues before they cause engine performance degradation, increased fuel consumption, or catastrophic failure. At Aeliya Marine Tech, we recognize the importance of reliable marine diagnostic equipment, which is why we source and supply premium test units like the VPUD 1100 backed by our comprehensive 30-day warranty and free shipping.

Marine engine maintenance represents a significant operational cost for vessel operators, and the ability to perform fuel injector testing onboard or in the workshop reduces dependence on shore-based service providers. The VPUD 1100 test unit supports this capability with its self-contained design, accurate pressure measurement systems, and straightforward operation. With a current system pressure measurement range of 0-1600 Bar (0-160 MPa) conforming to EN 837-1 Class 1.0 accuracy standards, this unit provides the precision that marine engineering professionals demand.

Key Features & Specifications

The LOP Marine VPUD 1100 Fuel Injector Test Unit incorporates numerous features that make it an essential tool for marine engine maintenance professionals. Its robust construction, precision measurement systems, and user-friendly design reflect the demanding requirements of the marine environment.

• High-Pressure Testing Capability: Current system pressure measurement range of 0-1600 Bar (0-160 MPa) with Class 1.0 accuracy per EN 837-1, enabling testing of high-pressure marine fuel injectors.
• Inlet Air Pressure Control: Inlet air pressure range of 0-10 Bar (0-1.0 MPa) with Class 1.0 accuracy for precise control of test conditions.
• Dual Voltage Operation: Designed for 230/115V operation, providing flexibility for use in different electrical environments worldwide.
• Danish Engineering Quality: Manufactured in Denmark by LOP Marine (Obel-p Products) to stringent European quality standards for marine equipment.
• Compact and Portable: At 61 Kg, the unit is sufficiently portable for workshop use while maintaining the stability required for accurate testing.
• Comprehensive Identification: Clearly marked with type codes 1113021/8600-19-004 and 1112573/4704-19-490 for traceability and parts ordering.

Technical Specifications

Specification	Details
Manufacturer	LOP Marine / Obel-p Products
Model/Type	VPUD 1100
Type Code	1113021/8600-19-004
Pump Designation	Pump B1100-2, 95272600
Operating Voltage	230/115V
Revision	03
System Pressure Range	0-1600 Bar / 0-160 MPa
Pressure Standard	EN 837-1, Class 1.0
Inlet Air Pressure Range	0-10 Bar / 0-1.0 MPa
Air Pressure Accuracy	Class 1.0
Secondary Type Code	1112573/4704-19-490, 7030020400
Country of Origin	Made in Denmark
Weight	61 Kg

Applications & Use Cases

The LOP Marine VPUD 1100 Fuel Injector Test Unit serves a critical role in marine engine maintenance programs across the global maritime industry. Fuel injectors are among the most important components affecting diesel engine performance, and regular testing using precision equipment like the VPUD 1100 is essential for maintaining optimal combustion characteristics, fuel efficiency, and emission compliance. Understanding where and how this test unit is deployed helps marine engineers evaluate its suitability for their specific maintenance operations.

Onboard commercial vessels including container ships, tankers, bulk carriers, and cruise ships, the VPUD 1100 enables shipboard engineering teams to perform routine fuel injector testing without returning to port. This capability is particularly valuable for long voyages where engine performance issues must be addressed promptly to maintain schedule integrity. Chief engineers and second engineers use the test unit to verify injector opening pressure, spray pattern quality, leakage rates, and needle valve seating – all critical parameters that directly affect engine performance and reliability.

Marine workshops and shore-based service facilities utilize the VPUD 1100 as a cornerstone of their fuel system service capability. When injectors are removed from vessels for overhaul, the test unit provides the diagnostic data needed to determine whether components can be refurbished or must be replaced. Independent marine service companies, shipyard repair divisions, and authorized engine distributor workshops all depend on accurate injector testing equipment to deliver quality service to their customers. The 1600 Bar pressure capacity accommodates the high injection pressures characteristic of modern marine diesel engines.

Why Choose the LOP Marine VPUD 1100

The selection of fuel injector testing equipment should be guided by considerations of accuracy, reliability, ease of use, and compatibility with the engines being serviced. The LOP Marine VPUD 1100 excels in all these areas, representing a professional-grade solution that marine engineers have trusted for years. Danish manufacturing by Obel-p Products ensures adherence to strict European quality standards, producing equipment that withstands the rigors of marine workshop environments.

The 1600 Bar system pressure measurement capability with EN 837-1 Class 1.0 accuracy is a standout specification that distinguishes the VPUD 1100 from less capable alternatives. Modern marine diesel engines, particularly those employing common rail fuel injection systems, operate at extremely high injection pressures that demand equally capable testing equipment. The Class 1.0 accuracy rating guarantees that test results can be relied upon for making critical maintenance decisions affecting engine performance and safety. When injector opening pressure must be set within tight tolerances, the precision of the test equipment directly impacts the quality of the maintenance outcome.

Portability and operational flexibility are additional advantages of the VPUD 1100. At 61 Kg, the unit can be positioned where needed within a workshop or engine room environment. The dual 230/115V voltage capability ensures compatibility with the electrical systems found on vessels and in facilities worldwide, eliminating the need for voltage converters that could compromise reliability. These practical design considerations reflect LOP Marine's understanding of the operational realities faced by marine engineering professionals.

Compatibility & Integration

The LOP Marine VPUD 1100 Fuel Injector Test Unit is designed for broad compatibility with the fuel injectors used in marine diesel engines. Its 1600 Bar maximum test pressure accommodates the injection pressures found in most marine propulsion and auxiliary engines, from medium-speed trunk piston engines to large two-stroke crosshead engines. The test unit can be used to evaluate both mechanically controlled and electronically controlled injectors, provided appropriate adapters and connection fixtures are available.

The dual voltage input capability (230/115V) is a significant compatibility advantage for global marine operations. Vessels registered in different regions may have different nominal electrical system voltages, and the ability to operate the test unit on either voltage eliminates compatibility concerns. The air pressure input (0-10 Bar) works with standard shipboard compressed air systems, enabling the test unit to be operated without specialized gas supplies. These compatibility features reduce logistical complexity and ensure that the VPUD 1100 can be put to work quickly in virtually any marine environment.

For integration into comprehensive engine maintenance programs, the VPUD 1100 complements other diagnostic equipment including cylinder pressure indicators, exhaust gas analyzers, and crankshaft deflection measurement tools. Together, these instruments provide a complete picture of engine condition that guides maintenance scheduling, component replacement decisions, and performance optimization efforts. The data produced by the VPUD 1100 contributes directly to compliance with classification society requirements for engine maintenance documentation.

Maintenance & Support

The VPUD 1100 test unit itself requires periodic maintenance to ensure that its measurement accuracy is preserved over time. The pressure measurement system, calibrated to EN 837-1 Class 1.0 standards, should be verified against certified reference standards at regular intervals as recommended by the manufacturer. Air supply filters should be inspected and replaced as needed to prevent contamination of the pneumatic system. External surfaces should be cleaned regularly, and moving parts lubricated according to the maintenance schedule provided in the unit's documentation.

Aeliya Marine Tech provides comprehensive support for the VPUD 1100 units we supply. Our 30-day warranty gives you confidence in your purchase, with prompt resolution of any issues that may arise. Free shipping ensures that you receive your equipment economically and efficiently. Our technical team is available to answer questions about setup, operation, and maintenance of the test unit, drawing on extensive experience with marine diagnostic equipment.

Calibration is a critical aspect of maintaining measurement accuracy for any precision test equipment. We recommend that users establish a regular calibration schedule based on frequency of use and the requirements of their quality management system. Aeliya Marine Tech can provide guidance on calibration procedures and recommend qualified calibration service providers if needed. Properly maintained, the VPUD 1100 will deliver years of reliable service, supporting your marine engine maintenance program with accurate, trustworthy diagnostic data.

Frequently Asked Questions

Q1: What is the maximum test pressure of the VPUD 1100?

The VPUD 1100 can measure system pressures up to 1600 Bar (160 MPa) with Class 1.0 accuracy according to EN 837-1, making it suitable for testing high-pressure marine fuel injectors.

Q2: What voltage does the VPUD 1100 require?

The test unit operates on dual voltage 230/115V, providing flexibility for use in different electrical environments on vessels and in workshops worldwide.

Q3: Where is the VPUD 1100 manufactured?

The VPUD 1100 is manufactured in Denmark by LOP Marine (Obel-p Products), ensuring European engineering quality and manufacturing precision.

Q4: What types of fuel injectors can be tested?

The VPUD 1100 is designed to test marine diesel engine fuel injectors, including both mechanically and electronically controlled types, with appropriate adapters.

Q5: What is the pressure measurement accuracy?

Both the system pressure and inlet air pressure measurements achieve Class 1.0 accuracy per EN 837-1, providing the precision needed for professional marine engine diagnostics.

Q6: What warranty and shipping does Aeliya Marine Tech provide?

Aeliya Marine Tech provides a 30-day warranty on all products plus free shipping on every order, with technical support available for setup and operation guidance.
