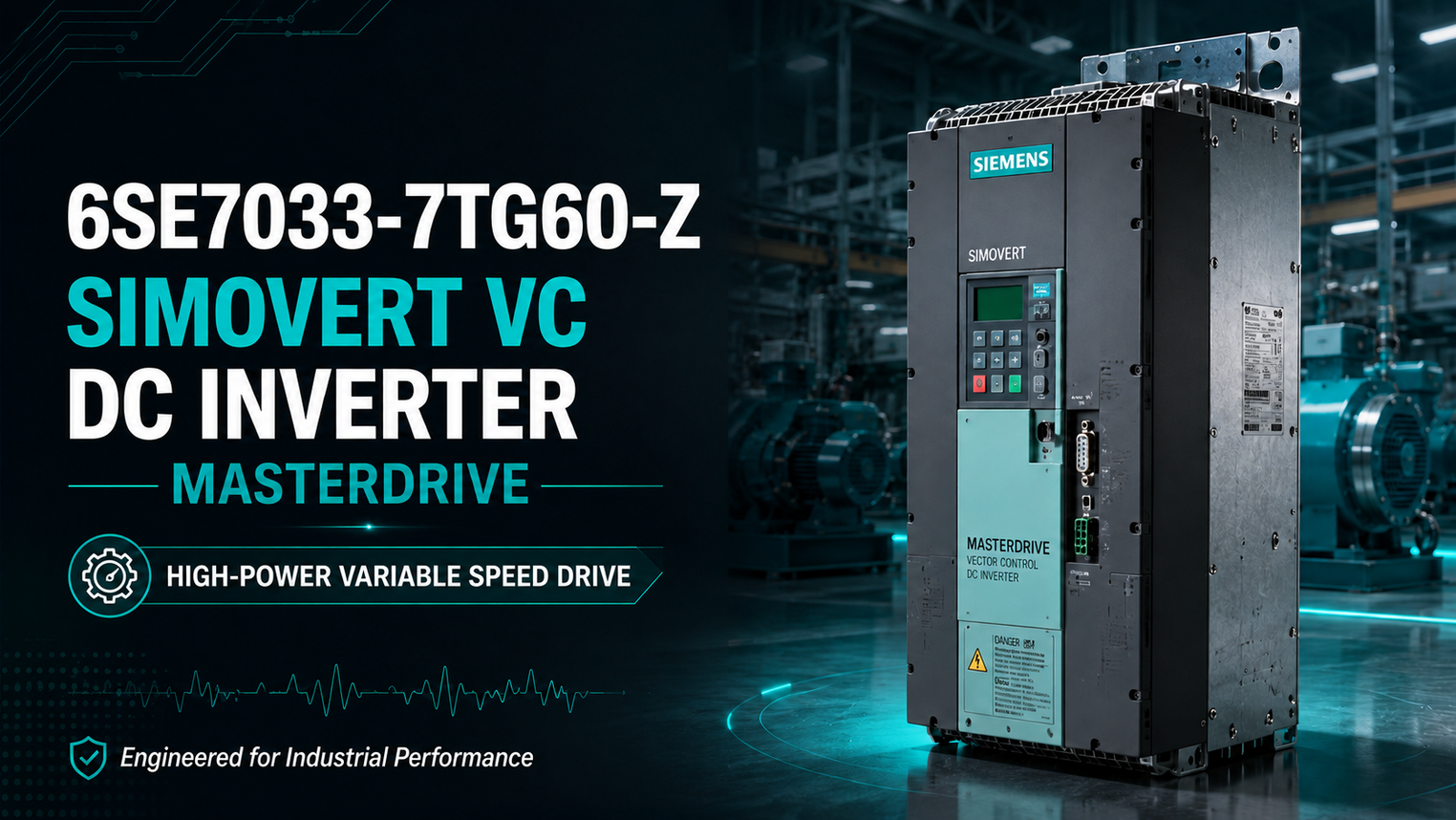

Siemens 6SE7033-7TG60-Z SIMOVERT VC DC Inverter Masterdrive — High-Power Variable Speed Drive

The Siemens 6SE7033-7TG60-Z SIMOVERT VC DC Inverter Masterdrive is a high-power variable speed drive engineered for DC-to-AC conversion in the most demanding heavy industrial motor control applications. At Aeliya Marine Tech, we offer this fully tested used Siemens SIMOVERT VC Masterdrive — delivering 440A of three-phase AC output from a 510-650V DC input, making it the ideal solution for large DC-bus fed drive systems, common DC-link configurations, and battery-powered or rectifier-fed industrial installations.

The SIMOVERT VC (Vector Control) series represents Siemens' flagship large-drive platform, renowned throughout heavy industry for its rugged construction, precise motor control, and exceptional overload capability. The 6SE7033-7TG60-Z configuration delivers Vector Torque (VT) rating of 370A with 136% overload and Constant Torque (CT) rating of 337A with 150% overload — performance headroom that ensures reliable operation through motor starting surges, impact loads, and process upset conditions that would trip lesser drives.

With an output frequency range of 0-500Hz and three-phase AC output voltage of 0-480V, this DC inverter controls standard induction motors, servo motors, and specialized high-frequency spindle motors across an exceptionally broad speed range. The integrated Fan 6SY7000-0AB67 cooling system ensures thermal stability even in high-ambient-temperature environments up to 50°C with appropriate derating.

Product Overview: Siemens SIMOVERT VC Masterdrive

The Siemens SIMOVERT VC (6SE70 series) is a DC voltage link inverter designed for integration into DC-bus architectures where multiple drives share a common rectifier or where the DC supply originates from battery banks, DC generators, or photovoltaic arrays. Unlike standard AC-fed variable frequency drives, the SIMOVERT VC accepts a DC input directly — eliminating the rectifier stage and enabling system-level energy optimization through regenerative braking and DC-bus energy exchange.

This particular unit — 6SE7033-7TG60-Z — is a G-frame (Size G) inverter rated for 440A continuous output current. The "Z" suffix indicates customer-specific options or factory modifications that enhance this unit for its intended application class. The chassis-mount construction requires installation in an electrical enclosure or switchgear lineup with adequate ventilation airflow.

The SIMOVERT VC employs Siemens' proven vector control algorithm, providing flux-oriented current control that delivers full torque from zero speed — a critical requirement for crane hoists, elevator systems, winders, and extruders where the motor must produce rated torque at standstill. The control accuracy of ±0.5% speed and ±2% torque makes this drive suitable for the most demanding process control loops.

For system integrators and maintenance engineers managing large DC-bus drive systems, the SIMOVERT VC's modular architecture, comprehensive diagnostic capabilities, and extensive spare parts availability make it the preferred choice for applications where downtime costs are measured in thousands of dollars per hour.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens AG
Order Number (MLFB)	6SE7033-7TG60-Z
Product Family	SIMOVERT VC Masterdrive
Drive Type	DC-to-AC Inverter (DC Voltage Link)
DC Input Voltage	510-650 V DC
AC Output Current (Continuous)	440 A
VT Rating / Overload	370 A / 136% overload capacity
CT Rating / Overload	337 A / 150% overload capacity
AC Output Voltage	3-Phase, 0-480 V AC
Output Frequency Range	0-500 Hz
Control Method	Vector Control (Flux-Oriented)
Frame Size	Size G (Chassis Mount)
Cooling System	Internal Fan 6SY7000-0AB67 (Included)
Max Motor Power (typical)	Approximately 300-350 HP @ 460V VT
Switching Frequency	2.5 kHz (standard), up to 8 kHz (derated)
Communication Options	PROFIBUS DP, USS, SIMOLINK (via option boards)
Protection Class	IP00 (Chassis) — Requires External Enclosure
Operating Temperature	0°C to +40°C (up to 50°C with derating)
Standards Compliance	EN 50178, IEC 61800-2, UL/cUL (where applicable)
Condition	Used — Fully Tested

Key Features & Benefits

• 440A Continuous Output: With 440A rated output current, this SIMOVERT VC handles the largest standard industrial motors in the 250-400 HP range — covering the vast majority of heavy-duty pump, fan, compressor, and extruder applications.
• Exceptional Overload Capacity: The VT rating of 370A with 136% overload and CT rating of 337A with 150% overload provides the surge capacity needed for high-inertia loads, cyclic duty cycles, and emergency process conditions. Many competing drives in this class offer only 110-120% overload.
• DC Bus Input Architecture: By accepting a DC input (510-650V), the SIMOVERT VC eliminates the rectifier stage found in conventional AC drives. This enables common DC-bus configurations where multiple inverters share a single rectifier, regenerative braking energy is recirculated between drives, and overall system efficiency improves by 5-10%.
• Flux-Oriented Vector Control: Siemens' vector control algorithm delivers full rated torque at zero speed with ±0.5% speed accuracy and ±2% torque accuracy — performance that rivals DC drive systems and meets the requirements of precision process control, crane positioning, and test stand applications.
• 0-500Hz Output Frequency: The exceptionally wide frequency range supports standard 50/60Hz induction motors, high-speed spindle motors (up to 30,000 RPM with 2-pole motors), and specialized traction or pump-jack motors that operate well above line frequency.
• Integrated Cooling Fan 6SY7000-0AB67: The included internal fan assembly provides forced-air cooling across the IGBT power modules and DC-link capacitors. Proper cooling is verified during our testing protocol to ensure thermal stability under full-load conditions.
• PROFIBUS & SIMOLINK Integration: Optional communication boards enable integration into Siemens S7 PLC systems, PCS7 distributed control systems, and TIA Portal architectures — making this drive the natural choice for existing Siemens-automated facilities.
• Regenerative Braking Capability: When configured in a DC-bus system with an active front-end rectifier or braking chopper, the SIMOVERT VC returns deceleration energy to the line or to other drives on the common bus — eliminating braking resistor heat dissipation and reducing energy costs.
• Rugged Industrial Construction: The chassis-mount G-frame construction with isolated IGBT modules, film capacitors, and conformal-coated control boards is engineered for decades of service in harsh industrial environments with dust, vibration, and temperature extremes.
• Extensive Spare Parts Availability: The SIMOVERT 6SE70 series has one of the largest installed bases of any large industrial drive. Replacement IGBT modules, capacitors, fans, and control boards are readily available worldwide — protecting your long-term maintenance investment.
• Comprehensive Diagnostic Capability: The drive's fault memory stores the last 64 fault events with timestamp, operating conditions, and diagnostic codes — dramatically reducing troubleshooting time and enabling predictive maintenance strategies.
• Significant Cost Advantage: This tested used SIMOVERT VC represents approximately 50% savings compared to a new equivalent drive, with immediate availability versus 16-24 week factory lead times for current-generation large drives.




Industrial Applications

The Siemens SIMOVERT VC 440A DC inverter is engineered for the most demanding motor control applications in heavy industry, where the combination of high current, precise speed control, and DC-bus architecture delivers measurable operational advantages:

Common DC-Bus Multi-Drive Systems

Paper mills, steel processing lines, and textile plants frequently employ common DC-bus architectures where a single rectifier feeds multiple inverters. The SIMOVERT VC's DC input eliminates individual rectifiers, reducing cabinet space, component count, and heat generation. When one drive decelerates a large inertia load, its regenerated energy flows across the DC bus to power accelerating drives — net energy consumption drops by 15-30% compared to individually rectified systems.

Crane & Hoist Applications

Container cranes, steel mill ladle cranes, and shipyard gantry cranes require precise load positioning, high starting torque, and controlled lowering. The SIMOVERT VC's 150% overload capacity provides the starting torque for heavy lifts, while vector control maintains zero-speed holding without mechanical brakes. Regenerative lowering returns potential energy to the DC bus rather than dissipating it in brake resistors — a critical advantage in continuous-duty crane operations.

Extruders & Mixers

Plastics extruders, rubber mixers, and food processing extruders operate at constant torque across a wide speed range with high overload requirements during material surges. The CT rating of 337A with 150% overload ensures the drive never trips during process upsets, while the precise torque control maintains consistent product quality. The 0-500Hz output supports high-speed extrusion processes.

Test Stands & Dynamometers

Engine test cells, motor test stands, and transmission dynamometers require bidirectional speed control, fast torque response, and precise load simulation. The SIMOVERT VC's vector control accuracy and four-quadrant operation (motoring and generating in both rotation directions) make it the industry-standard drive for automotive and aerospace propulsion testing.

Winders & Unwinders

Printing presses, film lines, and metal foil processing require tension-controlled winding and unwinding with torque control accuracy better than ±2%. The SIMOVERT VC's dancer control algorithms and taper tension functions deliver uniform roll density and prevent material wrinkling, stretching, or telescoping — directly impacting product yield and quality.

Marine & Offshore Propulsion

Electric propulsion systems on offshore supply vessels, dynamic positioning (DP) vessels, and diesel-electric LNG carriers employ DC-bus architectures with multiple inverter-fed propulsion motors. The SIMOVERT VC's 660V DC input capability and marine-grade robustness have made it a proven choice for Siemens marine propulsion systems worldwide.

Renewable Energy & Energy Storage

Large photovoltaic arrays and battery energy storage systems (BESS) operate at DC voltages that align directly with the SIMOVERT VC's 510-650V DC input range. The inverter converts DC power to three-phase AC for grid connection, motor loads, or islanded microgrids — with vector control providing grid-forming capability when configured with appropriate control software.

DC Inverter vs. Standard AC Drive: Understanding the Architecture

Buyers unfamiliar with DC-fed drive systems may wonder why the Siemens SIMOVERT VC uses a DC input rather than the standard AC input found on most VFDs. The answer lies in system-level engineering advantages that become significant in large industrial installations:

Standard AC Drive Architecture: A conventional VFD (such as the ABB ACH580) contains an input rectifier, DC-link capacitors, and an output inverter. Each drive is a self-contained unit with its own rectifier. When multiple drives operate together, each draws current from the AC line independently, and braking energy is dissipated in resistor banks.

DC Inverter Architecture: The SIMOVERT VC contains only the output inverter section. The DC input connects to a common DC bus that is supplied by a central rectifier (or active front end), battery bank, or photovoltaic array. Multiple SIMOVERT VC inverters can connect to the same DC bus. When one drive brakes (generates), its energy flows to the DC bus and can be consumed by other drives that are motoring — no braking resistors required.

Key advantages of the DC-bus architecture include: reduced line harmonics (one rectifier vs. many), lower installation cost (shared components), energy regeneration between drives, smaller physical footprint per axis, simplified maintenance (centralized rectifier), and compatibility with battery/DC renewable sources.

For facilities already operating a DC bus, or for new designs where the DC-bus approach offers engineering advantages, the Siemens SIMOVERT VC is the proven, cost-effective choice that has dominated this market segment for over two decades.

Why Buy From Aeliya Marine Tech?

Aeliya Marine Tech specializes in high-value industrial drives, power electronics, and automation equipment for the world's most demanding industries. When you purchase a Siemens SIMOVERT VC from us, you receive far more than a product — you gain a technical partner invested in your operational success.

• Full Power Testing: Every large drive we sell undergoes power-on testing including DC-link charging verification, IGBT gate signal testing, output voltage measurement at multiple frequencies, thermal imaging under load, and cooling fan operational verification. We provide a test report with your shipment.
• 30-Day Functional Warranty: This SIMOVERT VC carries our standard 30-day warranty covering all electrical and mechanical functions. If the drive fails to produce rated output or exhibits any fault condition within 30 days, we provide replacement or full refund.
• Professional Industrial Packaging: A 440A chassis drive is a substantial piece of equipment. We package in custom wooden crating with anti-vibration mounts, moisture barriers, VCI corrosion protection, and impact indicators. Your drive arrives in the same condition it left our facility.
• Technical Integration Support: Our drive specialists assist with parameter configuration, PLC integration, encoder feedback setup, and DC-bus system design. Whether you're replacing a failed unit or integrating into a new system, we provide the engineering guidance to ensure success.
• Global Freight Logistics: We coordinate freight forwarding, customs clearance, and final-mile delivery to any destination worldwide. Project cargo and expedited air freight are available for urgent requirements.
• Replacement Parts Sourcing: As a Siemens equipment specialist, we can source IGBT modules, capacitor banks, control boards, fan assemblies, and other spare parts for your SIMOVERT VC — ensuring long-term maintainability of your investment.
• Large Drive Inventory: In addition to this 440A unit, we regularly stock SIMOVERT drives from 45A to 1200A ratings. Contact us for your complete multi-axis DC-bus drive requirements.

How to Order & Installation Guidance

Purchasing the Siemens SIMOVERT VC 440A DC inverter from Aeliya Marine Tech follows our established process for high-value industrial equipment:

1. Submit Inquiry or Buy Online: Click "Buy Now" above for immediate purchase, or contact our sales team for a formal quotation with shipping costs and delivery schedule.
2. Technical Consultation: Our drive engineers review your DC bus voltage, motor specifications, duty cycle, and control architecture to confirm this 6SE7033-7TG60-Z is the correct selection for your application.
3. Payment & Documentation: Wire transfer, credit card, or NET-30 terms for qualified accounts. We provide pro-forma invoices, technical datasheets, and export documentation as required.
4. Professional Shipping: Your drive ships in custom industrial crating via ocean freight (economical) or air freight (expedited). Tracking and customs documentation are provided.
5. Installation & Commissioning Support: Our technical team provides remote guidance for mounting, DC bus connection, motor wiring, control interface setup, and parameter configuration.

Installation Requirements

The Siemens SIMOVERT VC is a chassis-mount (IP00) drive that must be installed in a suitable electrical enclosure with adequate ventilation. The enclosure must provide filtered intake air at the bottom front and exhaust airflow at the top rear. Minimum clearances of 150mm (6 inches) above and below the drive, and 50mm (2 inches) on each side, must be maintained for airflow. The DC input terminals (+DC and -DC) connect to your common DC bus through appropriately rated fuses or circuit breakers. The three-phase output terminals (U, V, W) connect to the motor via shielded power cable with the shield grounded at both ends to contain EMI. The control terminals accept speed reference (±10V or 4-20mA), start/stop commands, and encoder feedback signals. PROFIBUS or SIMOLINK option boards install in the control slot for digital network integration. Commissioning requires entry of motor nameplate data (rated voltage, current, frequency, speed, power factor) and selection of control mode (V/Hz, sensorless vector, or closed-loop vector with encoder) through the operator panel.
