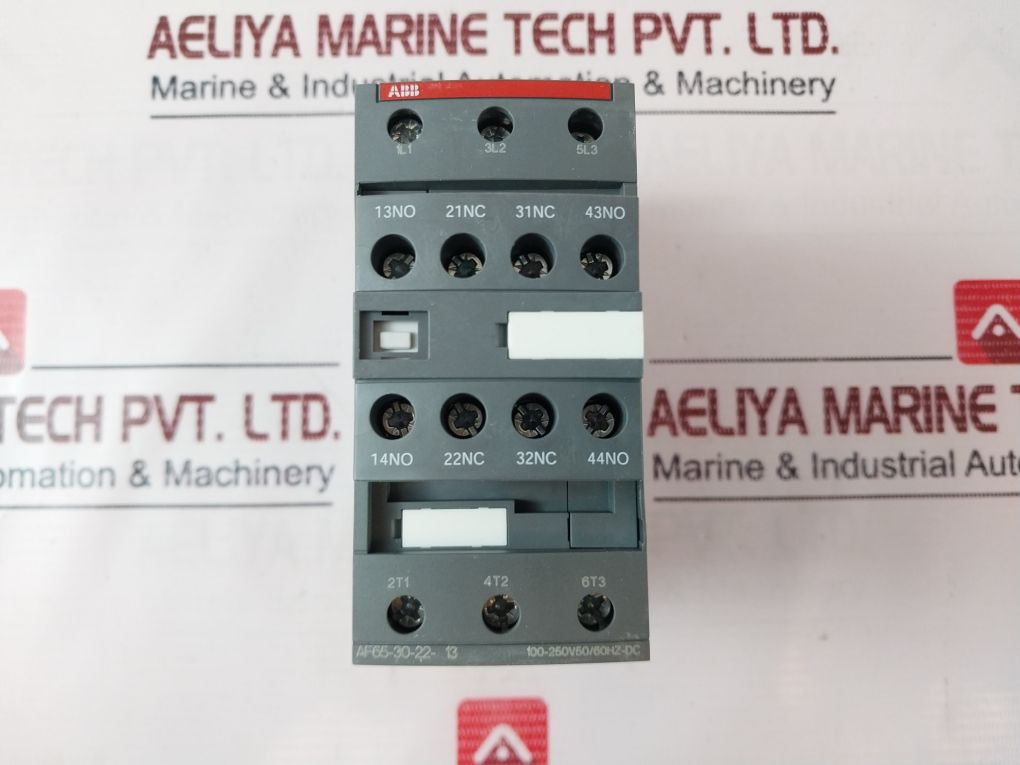

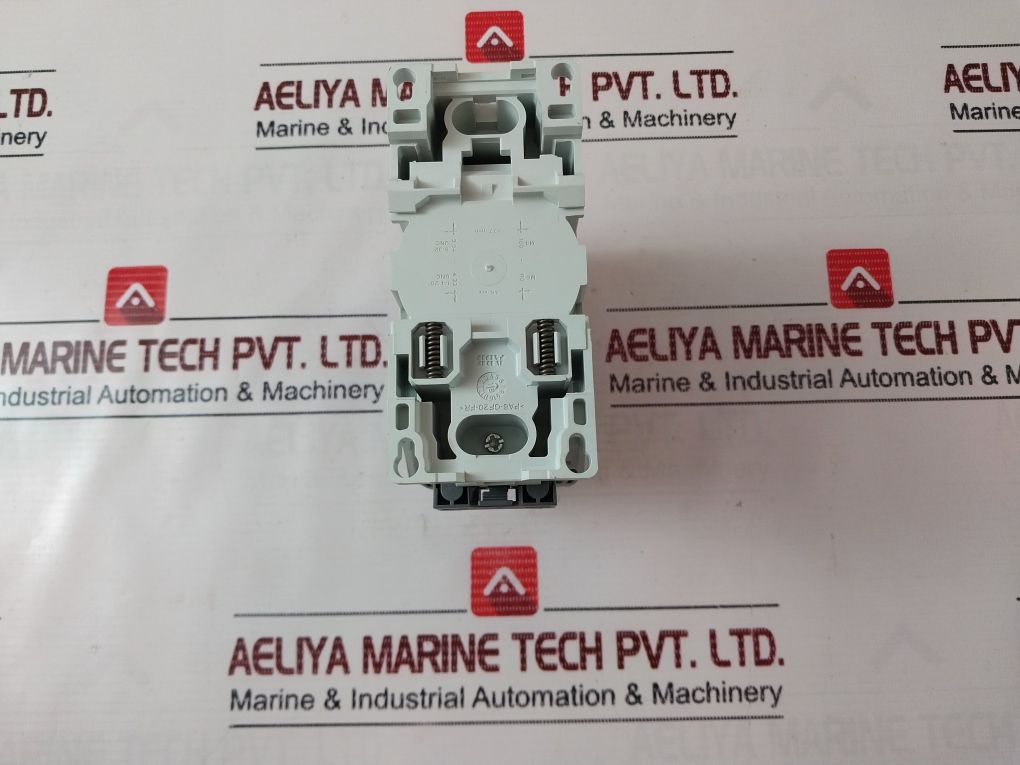

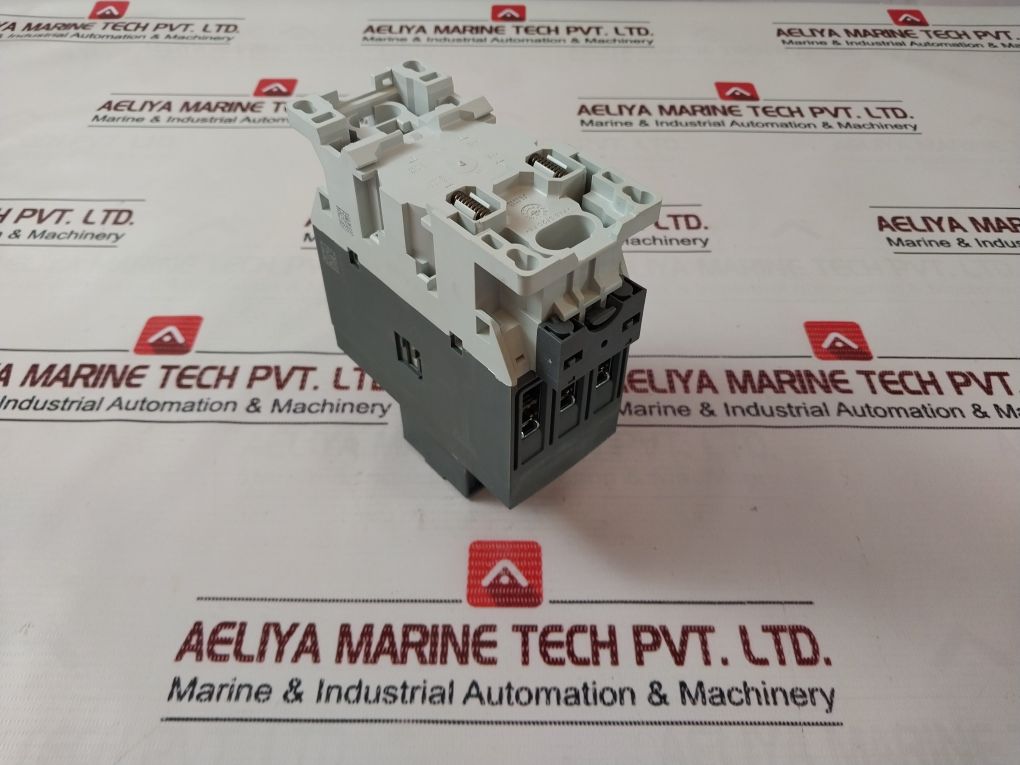

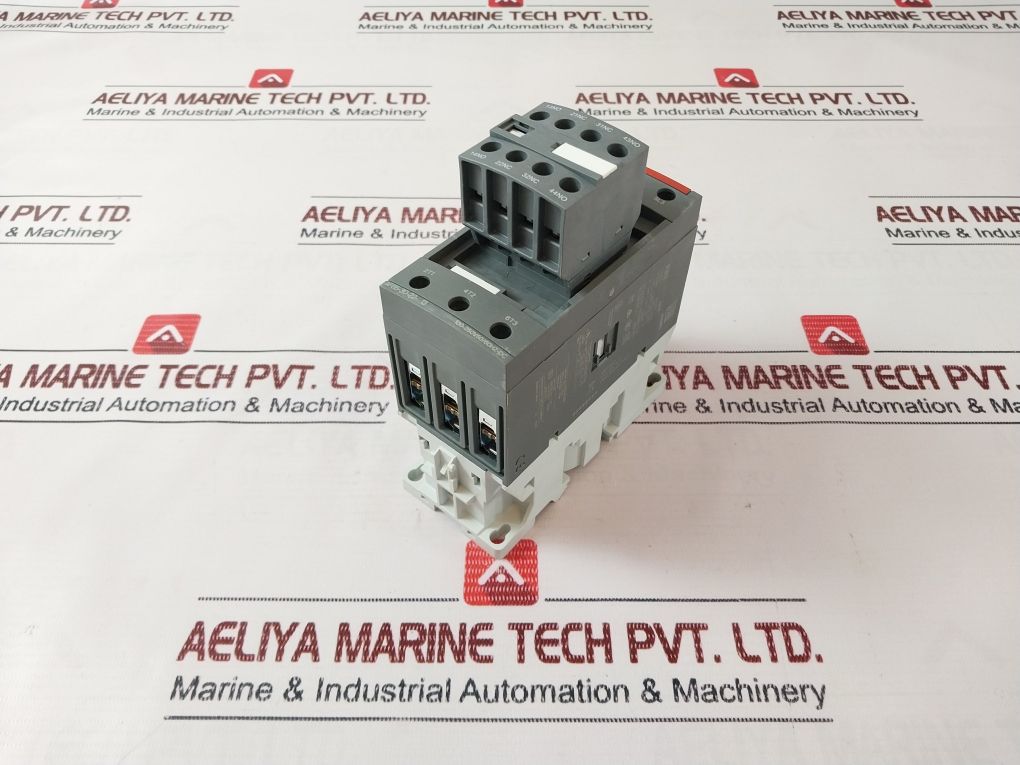

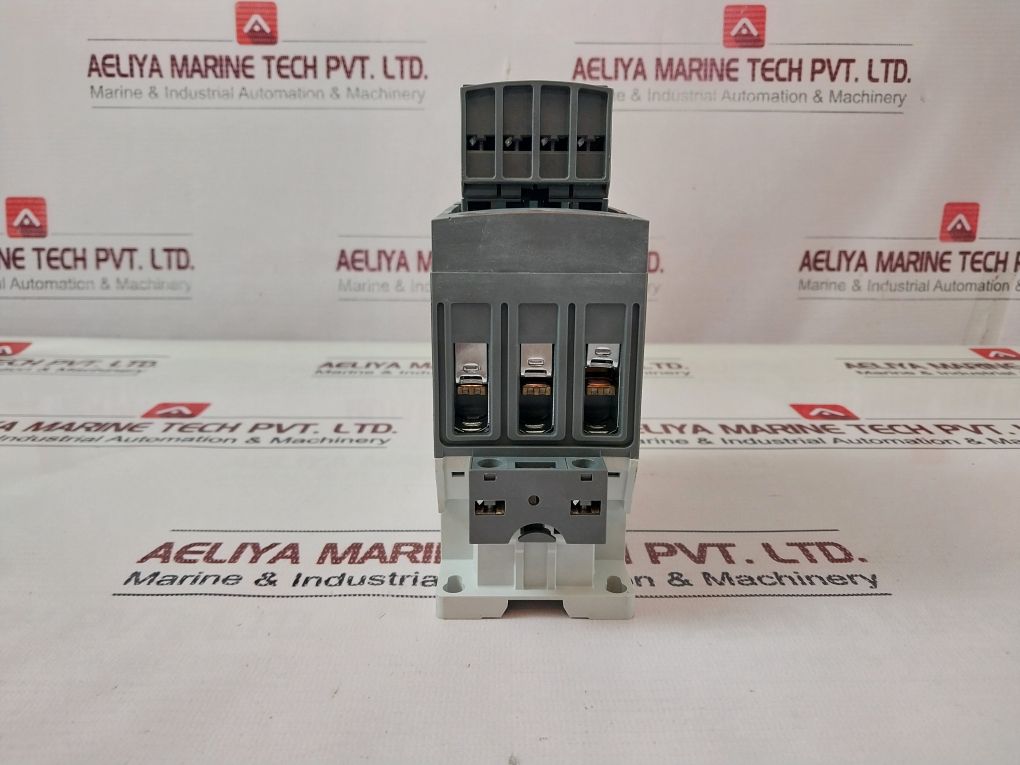

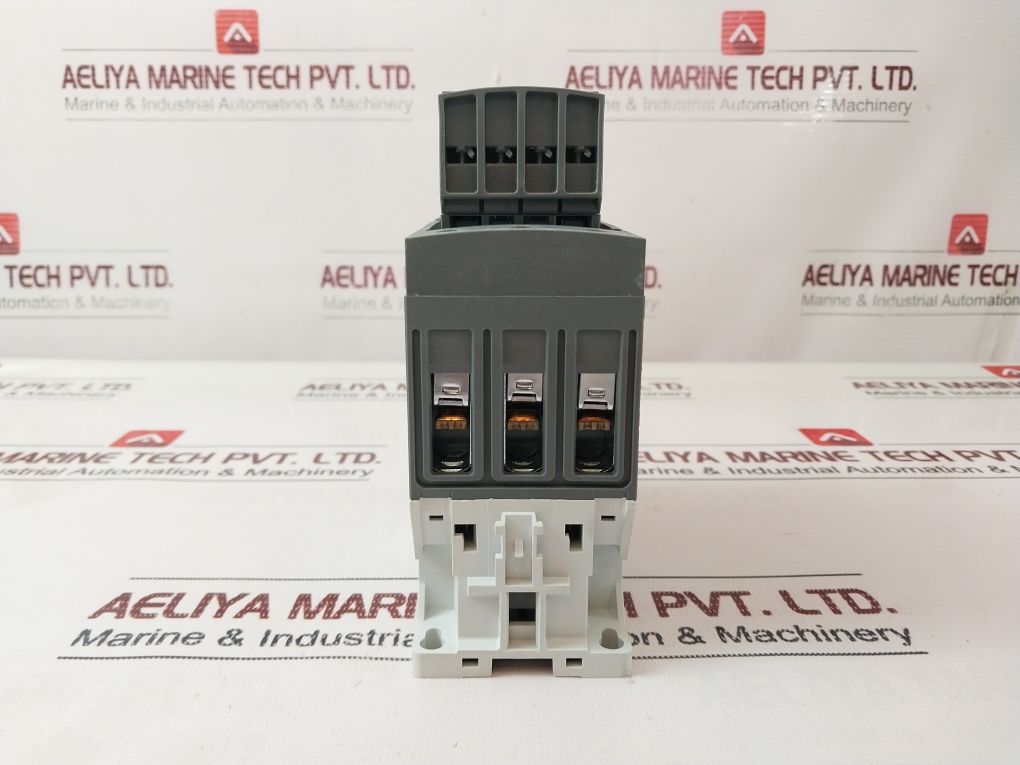

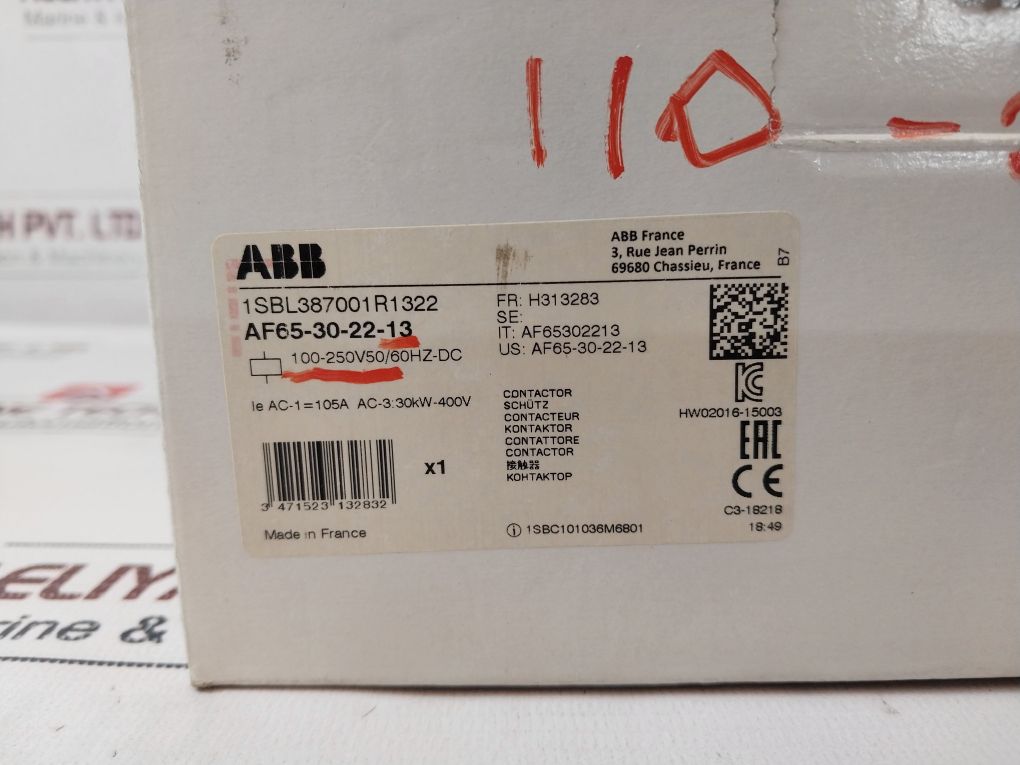

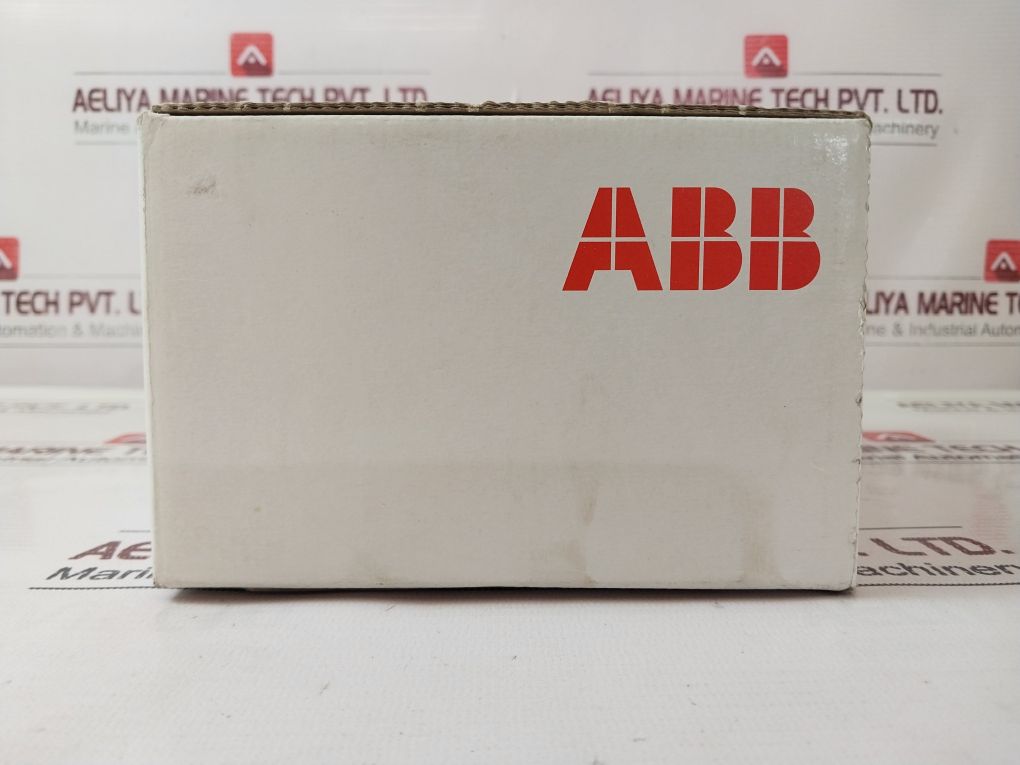

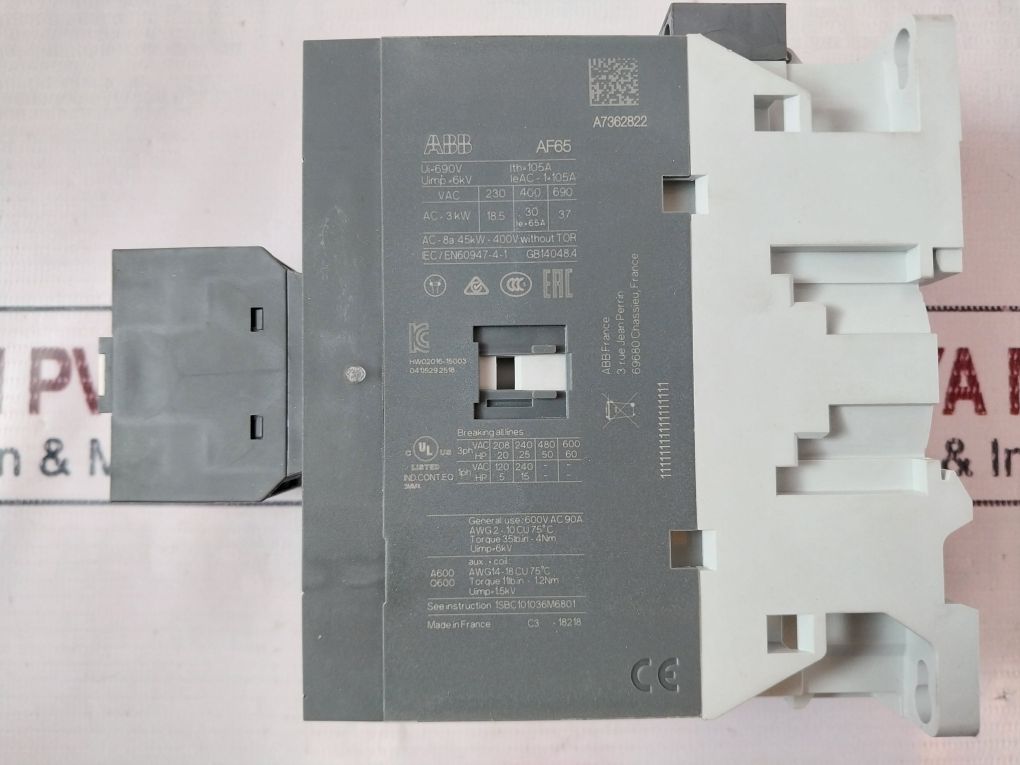

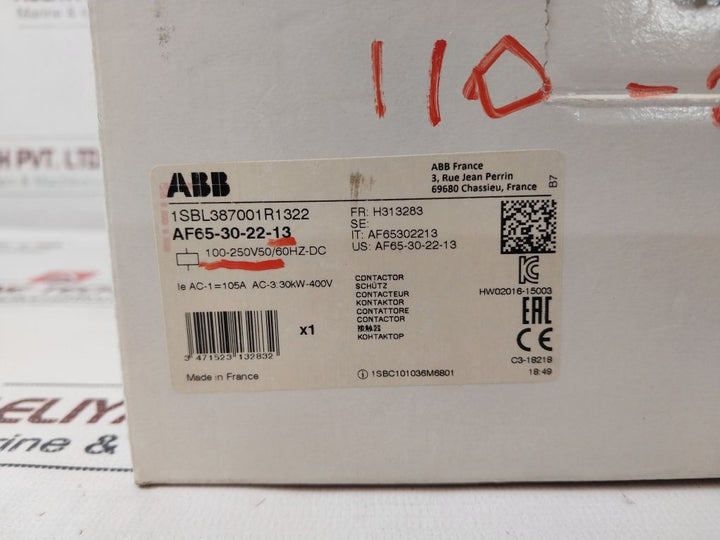

Abb Af65-30-22-13 Contactor 1Sbl387001R1322

ABB AF65-30-22-13 Contactor is an industrial-grade electrical switching device, which can be reliable under severe conditions. It is a France-made contactor produced in ABB's high-quality standard. The AF65-30-22-13 can be used for general-purpose electrical switching in both AC and DC applications with its 100-250V (50/60Hz DC) voltage range and a 45kW at 400V power rating.

Key Specifications:

• Model: AF65-30-22-13
• Part Number: 1SBL387001R1322
• Voltage: 100-250V AC/DC, 50/60Hz
• Power Rating (AC-8A): 45kW at 400V
• Thermal Current (Ith): 105A
• Insulation Voltage (Ui): 690V
• Impulse Withstand Voltage (Uimp): 6 kV
• Current Capacity (General Use): 600V AC, 90A
• Auxiliary Coil Torque: 11 lb.in (1.2 Nm), AWG 14-18 Cu, rated at 75°C
• Main Terminal Torque: 35 lb.in (4 Nm), AWG 2-10 Cu, rated at 75°C
• Compliance: IEC/EN 60947-4-1, GB14048.4
• Certifications: A600, Q600
• Country of Manufacture: France
• Weight: 1.12 kg

Product Features:

• High Current and Voltage Capacity: The AF65-30-22-13 is capable of handling up to 105A and supports insulation voltage up to 690V, making it suitable for a variety of high-power applications.
• Wide Voltage Range: Operating efficiently within a voltage range of 100-250V AC/DC, this contactor offers flexibility in both AC and DC power environments.
• Durable Construction: Engineered with robust materials and built to ABB’s high standards, the contactor is made for durability, ensuring reliable performance in industrial and commercial setups.
• Thermal and Impulse Withstand Capabilities: With an impulse withstand voltage of 6 kV and thermal current rating of 105A, the AF65-30-22-13 is designed to perform under high-stress conditions.
• Standards Compliant: Fully compliant with IEC/EN 60947-4-1 and GB14048.4, this contactor meets international standards for safety and reliability, making it suitable for use in regulated environments.
• Versatile Auxiliary Coil: With an auxiliary coil rated for AWG 14-18 Cu, this contactor offers dependable switching, backed by a torque of 11 lb.in for secure connections.

Applications:

The ABB AF65-30-22-13 Contactor is ideal for use in:

• Industrial Electrical Switching Systems: Suitable for general-purpose switching in industrial settings, handling high loads and ensuring consistent performance.
• Manufacturing and Processing Equipment: Reliable contactor for machinery requiring stable power flow, supporting equipment in automated processes.
• Commercial and Industrial HVAC Systems: Ideal for use in HVAC systems, providing stable and efficient switching in temperature control applications.
• Power Distribution and Control Panels: Used in power distribution boards for managing load switching and power distribution across various control systems.
• Backup Power and Emergency Systems: With its high current rating and reliable switching capabilities, this contactor is effective in backup power setups, providing dependable switching in emergency power situations.

Why Choose the ABB AF65-30-22-13 Contactor?

The ABB AF65-30-22-13 Contactor gives excellent reliability, durability, and good performance to satisfy any requirements in high-stress industrial environments. It has a very wide power range; it is very compliant to international standards, and above all, its construction is robust. In a few words, it is one of the best that is ideal for the contactor professionals who look out for an industrial-grade contactor for handling heavy duty switching tasks. It was made in France to standards set by ABB ensuring efficiency and long-term operation in a wide variety of applications.
