| Specification | Details |
|---|---|
| Brand | Telemecanique |
| Product Type | 3 Pole Isolated Load Break Switch |
| Model | Vario V2 (KCF1PZ) |

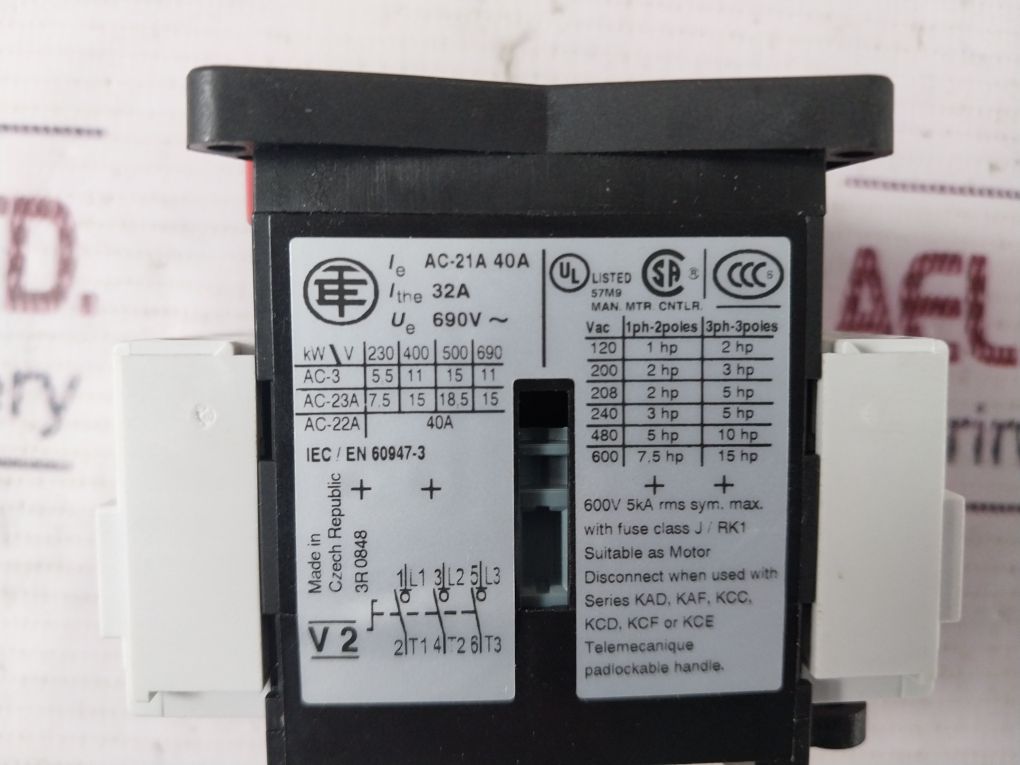

| Current Rating (Ie) | 40A (AC-21A) |
| Thermal Current Rating (Ithe) | 32A |
| Voltage Rating (Ue) | 690V~ |
| Standard Compliance | IEC/EN 60947-3 |
| Short Circuit Rating | 600V 5kA RMS Sym. Max. |
| Thermal Rating (Ith) | 40A |

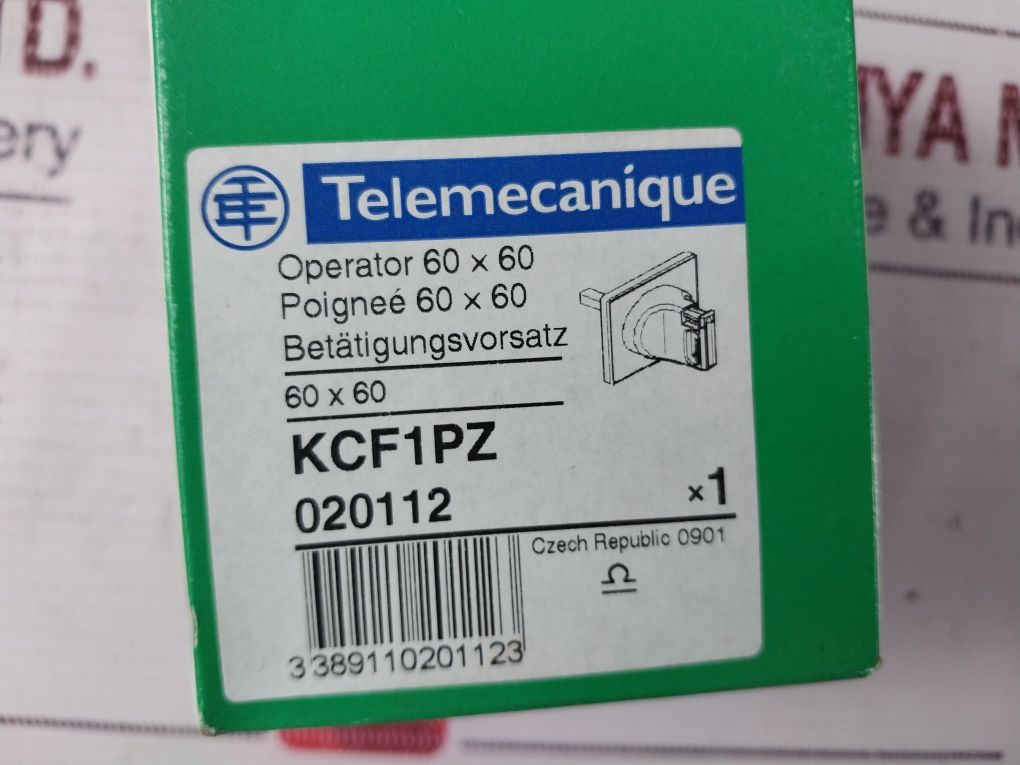

| Operator Size | 60 x 60 mm |

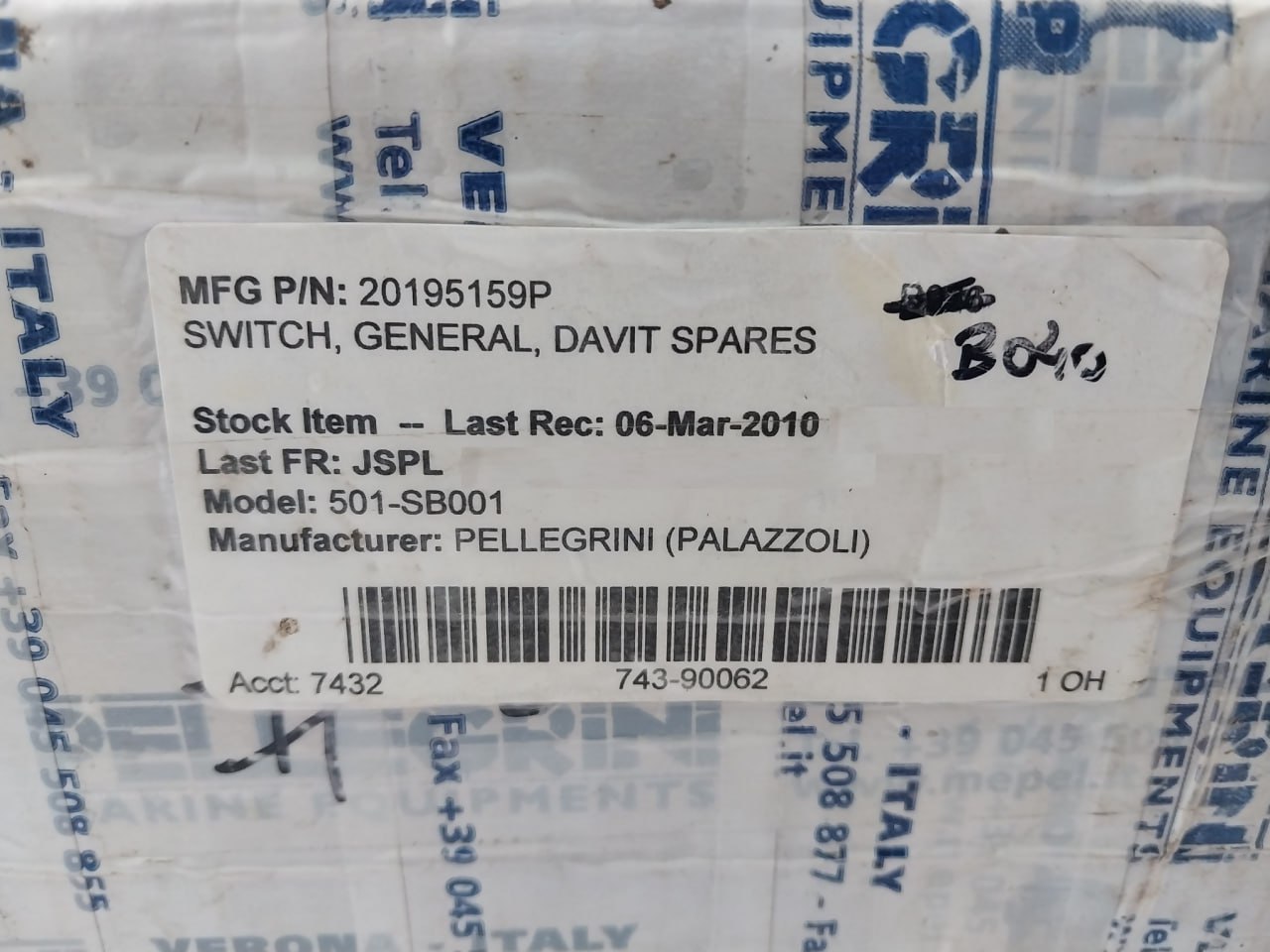

| Additional Model Codes | 501-sb001, 15403 01 A 3, 3R 0848 |
| Accessories | Contact Block, Shaft with Zero-Position (Vz17) |
| Manufacturing Part Number | 20195159p |
| Weight | 800 gm |
| Country of Manufacture | Czech Republic |

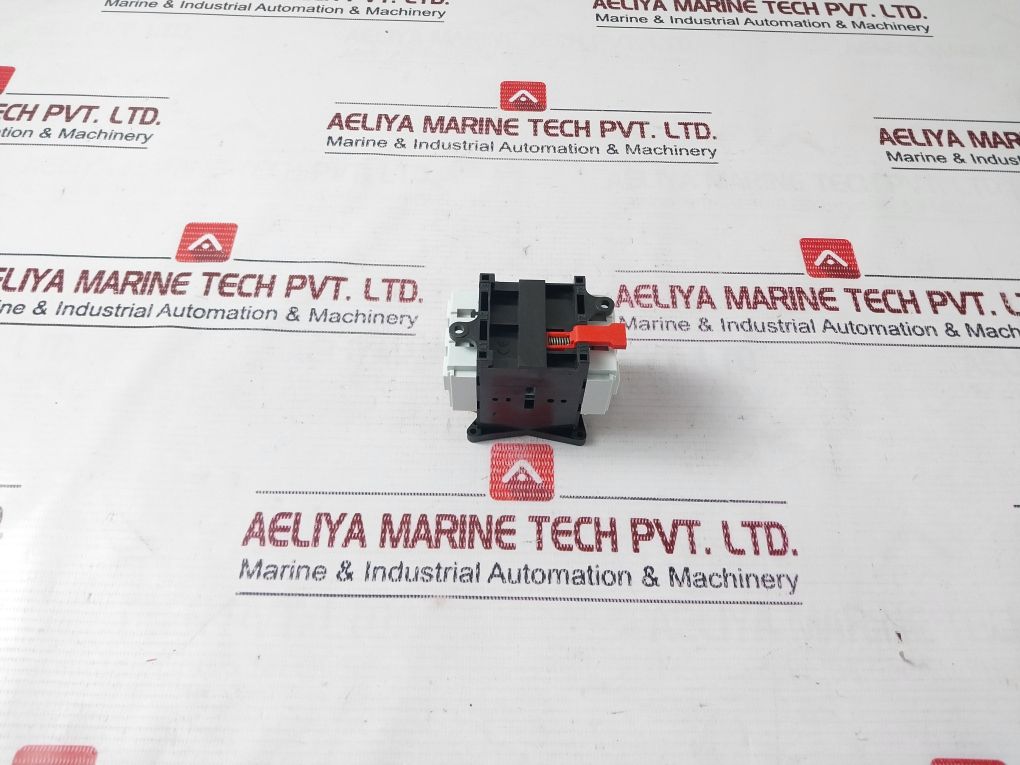

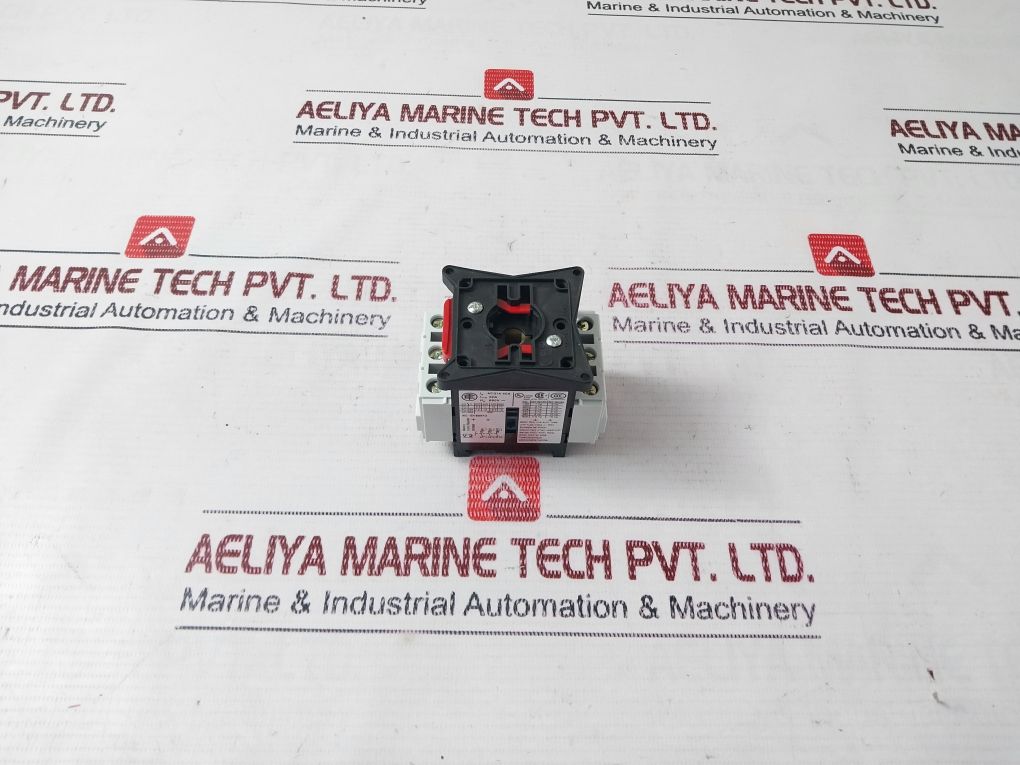

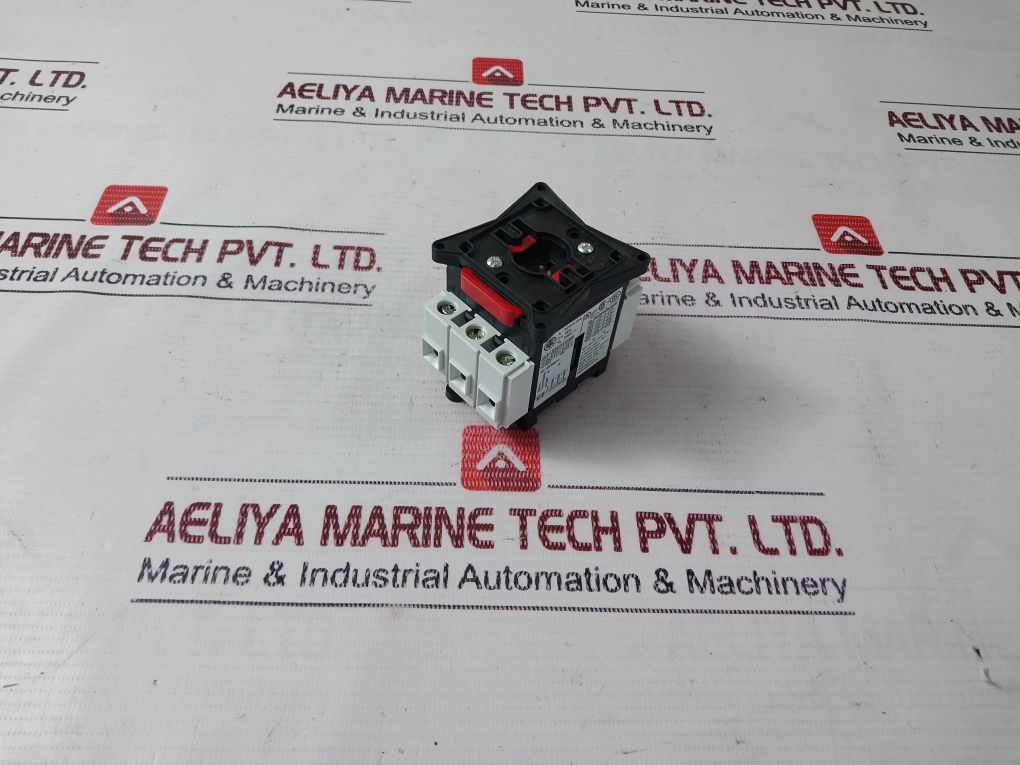

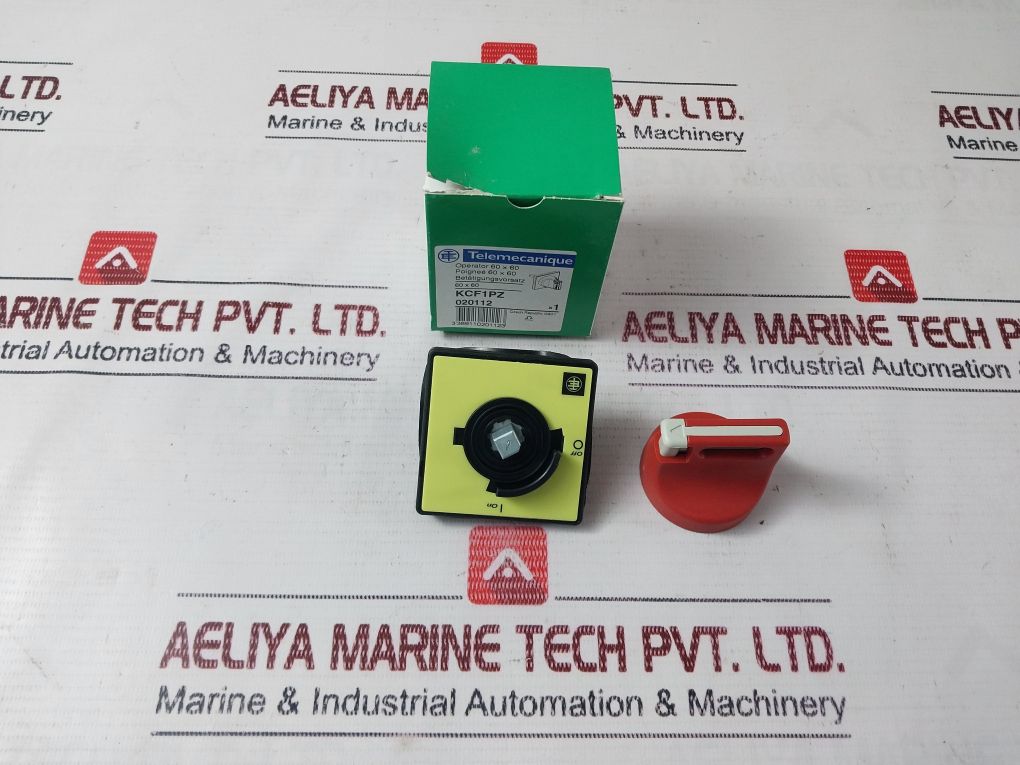

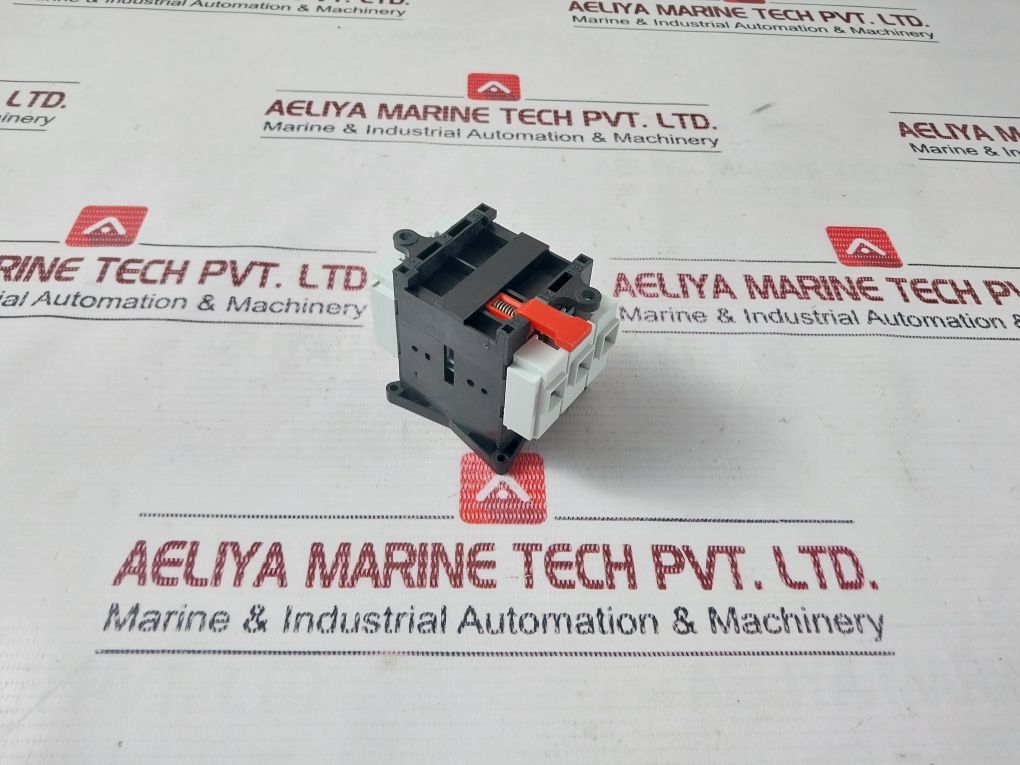

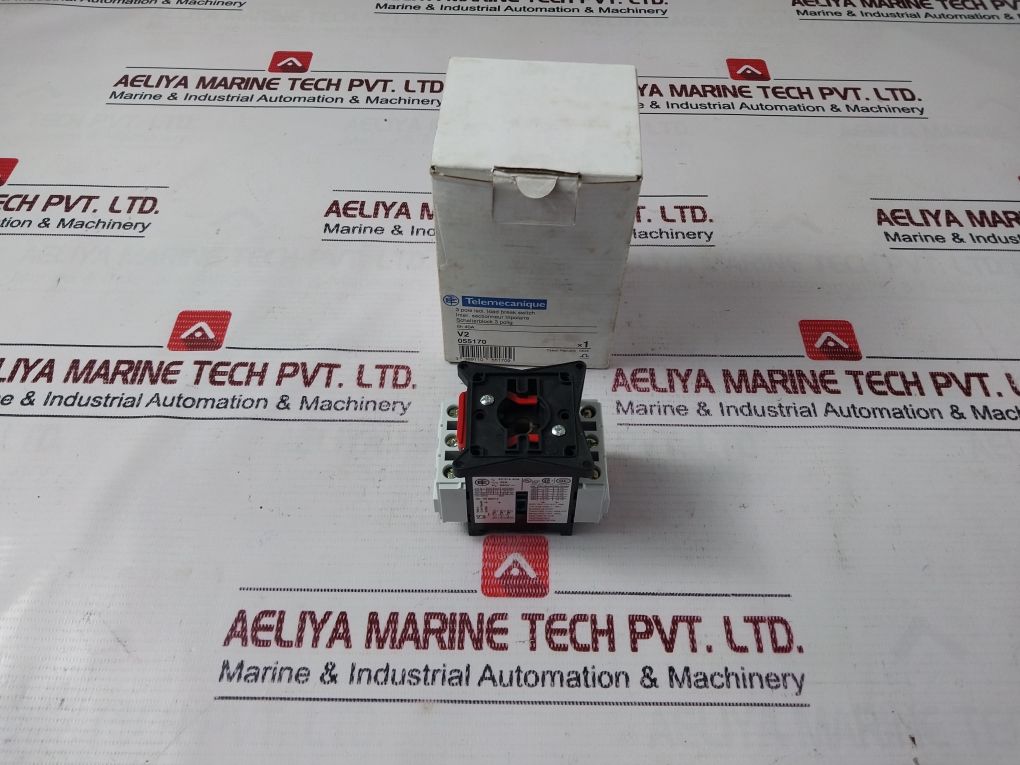

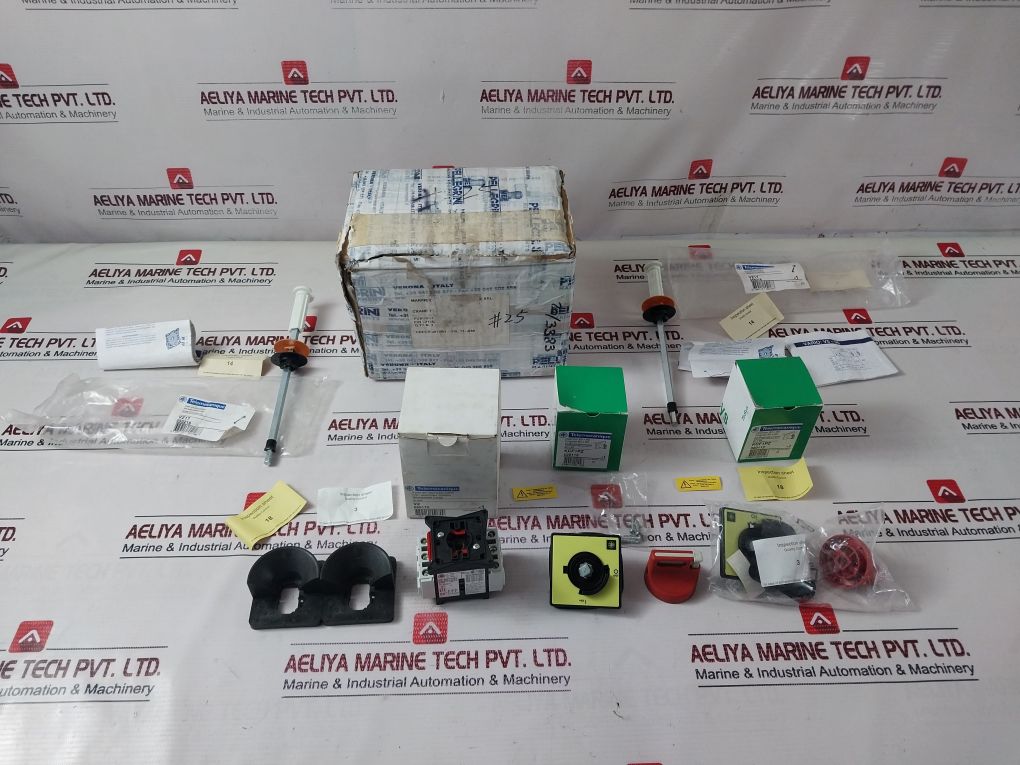

Telemecanique KCF1PZ 3 Pole Isolated Load Break Switch - industrial-grade power disconnection in the most demanding environments, as engineered by the leaders of electrical equipment company, Telemecanique, designed to offer an effective isolation of the load in safety and efficiency of power management. The KCF1PZ model is designed for applications requiring a secure, consistent load disconnection.
Key Features and Specifications:
- Manufacturer: Telemecanique
- Model: KCF1PZ
- Product Type: 3 Pole Isolated Load Break Switch
- Series: Vario V2
- Current Rating (Ie): 40A (AC-21A), suitable for handling industrial power loads
- Thermal Current Rating (Ithe): 32A, ensuring safe thermal management
- Voltage Rating (Ue): 690V~, capable of handling high-voltage applications
- Compliance: IEC/EN 60947-3, meeting international standards for safety and performance
- Short Circuit Rating: 600V, 5kA RMS symmetrical maximum, providing protection against surges
- Thermal Rating (Ith): 40A, for consistent and safe operation

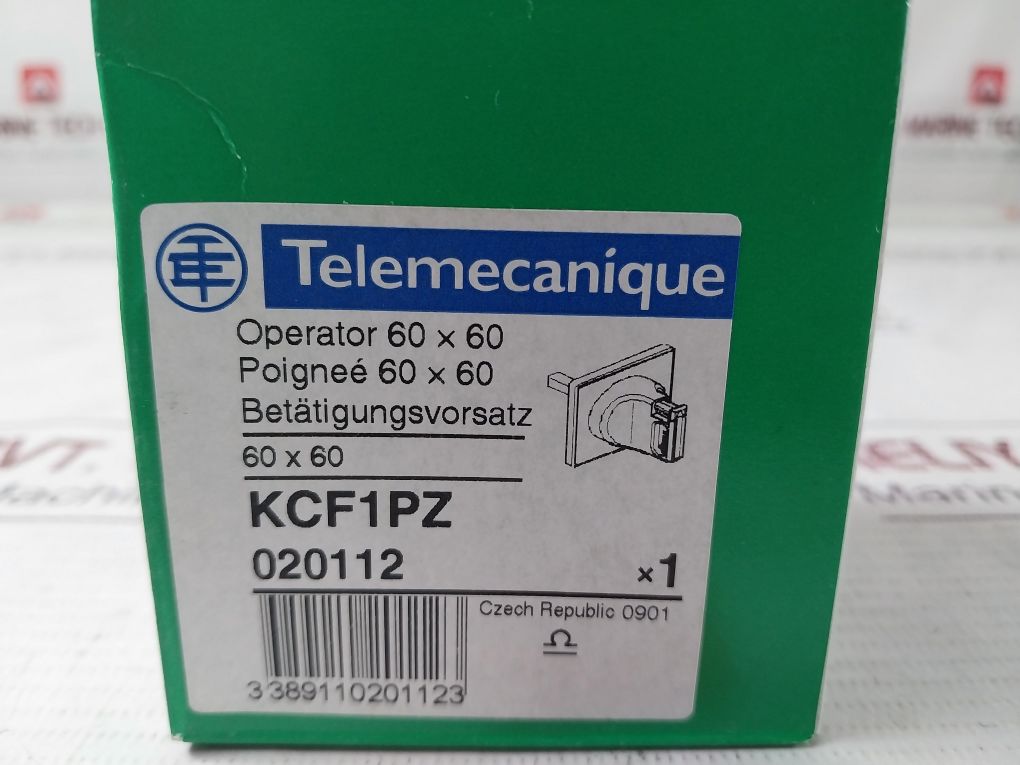

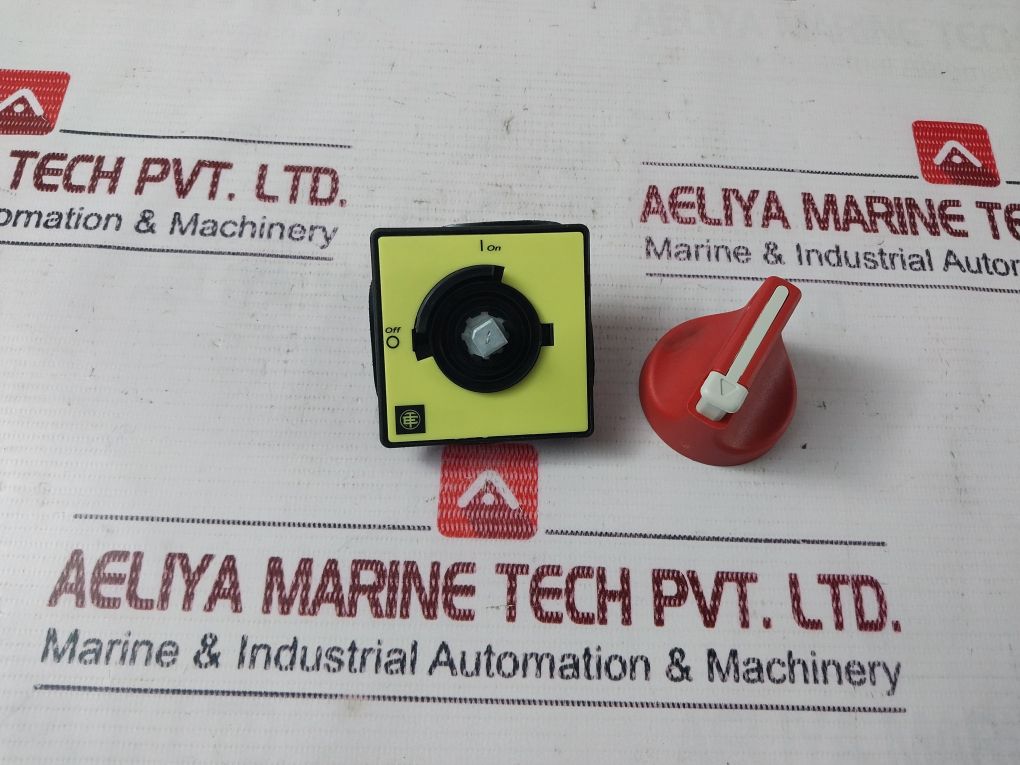

- Operator Size: 60 x 60 mm, ergonomic and easy to handle for manual control

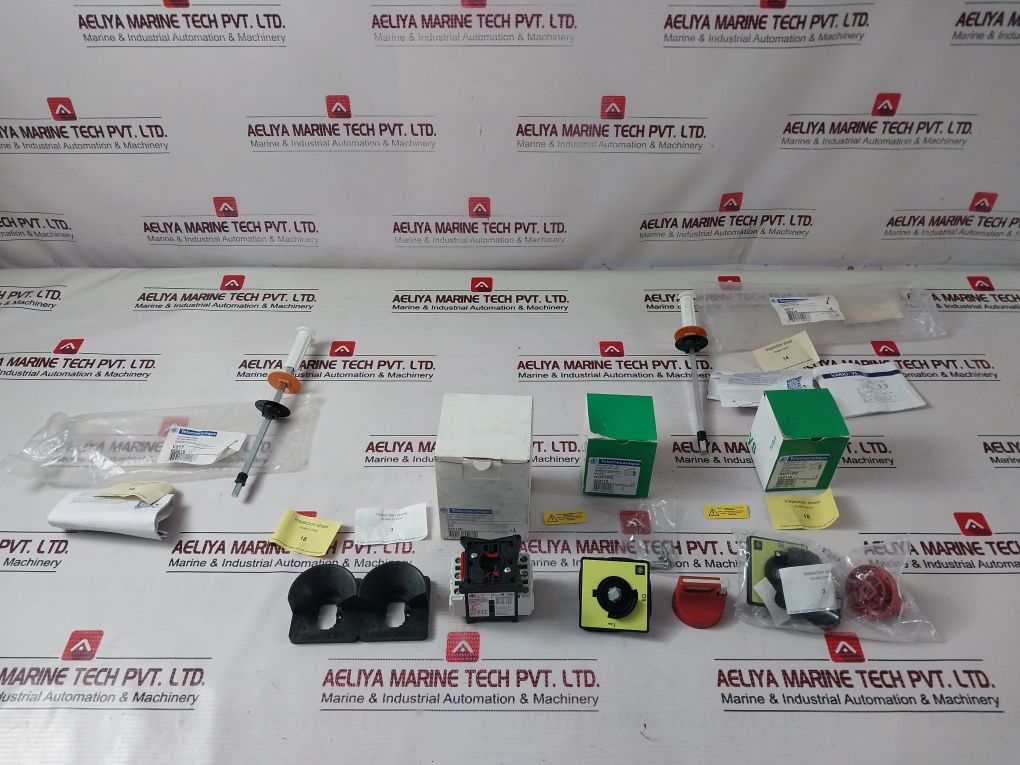

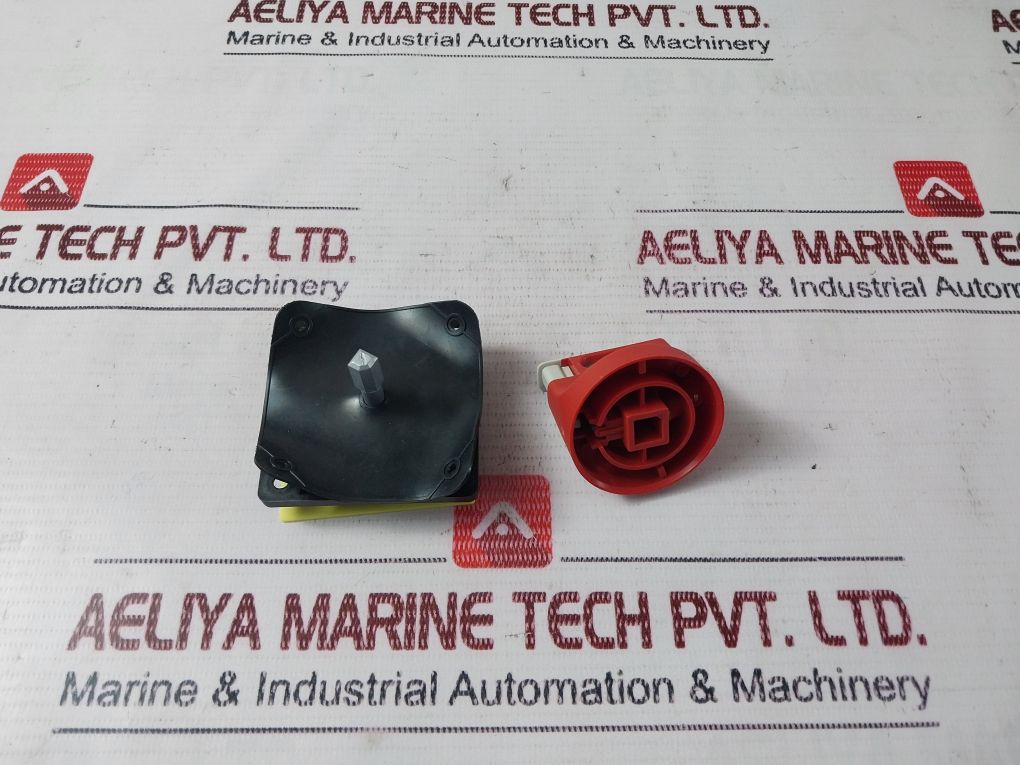

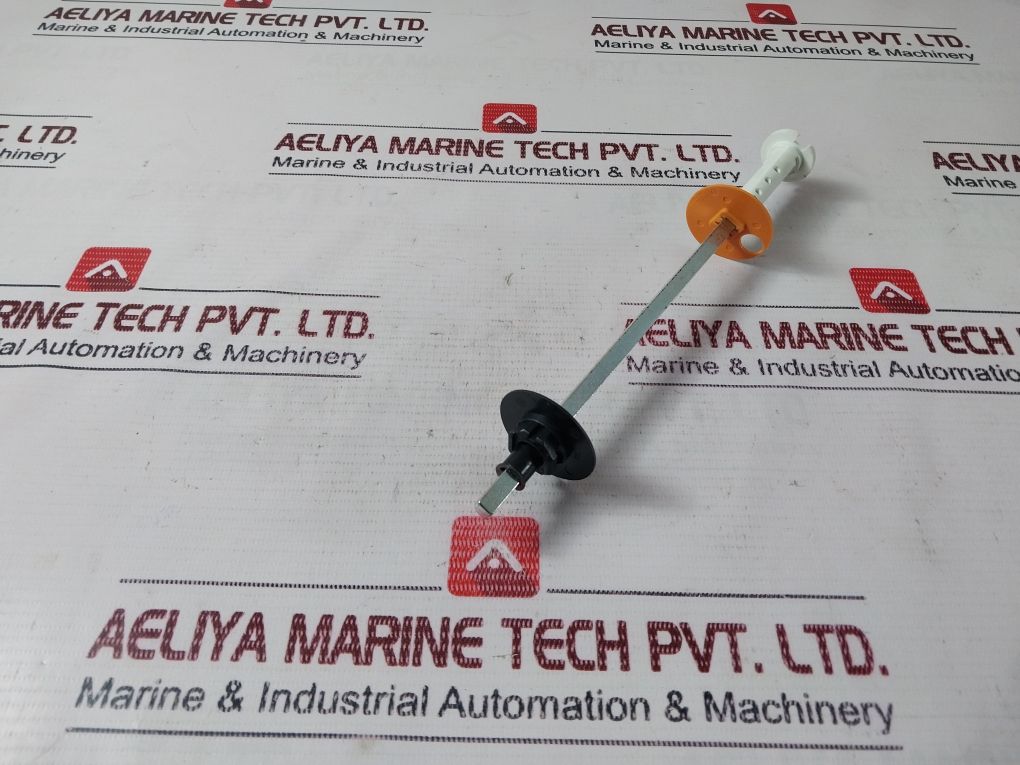

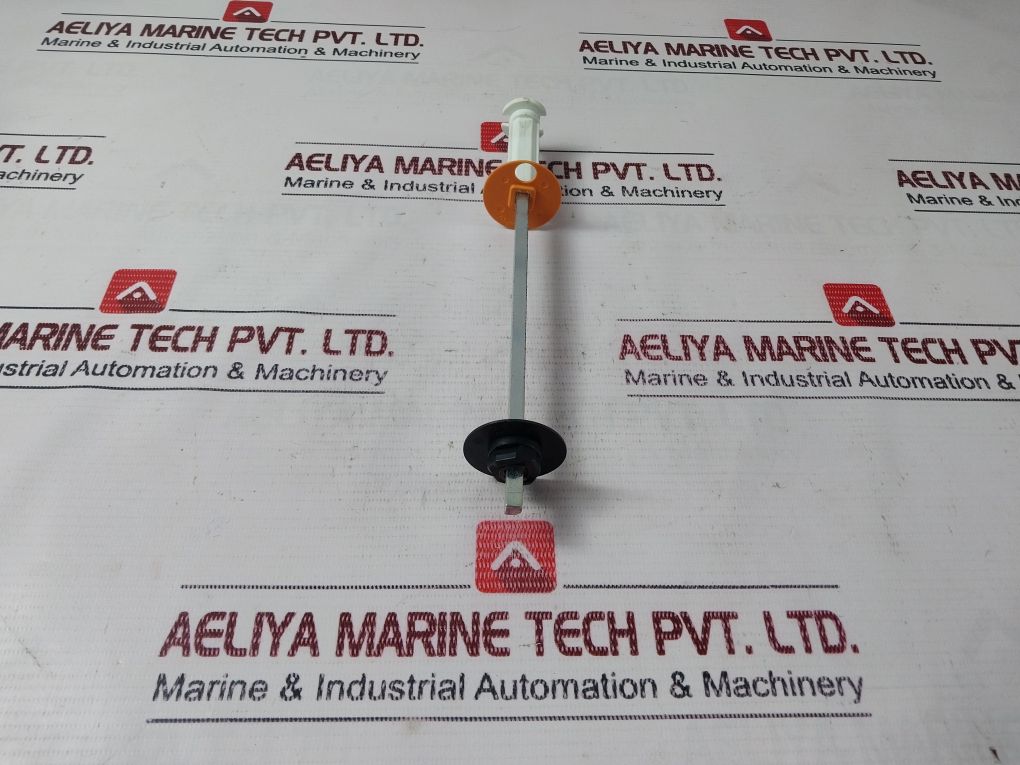

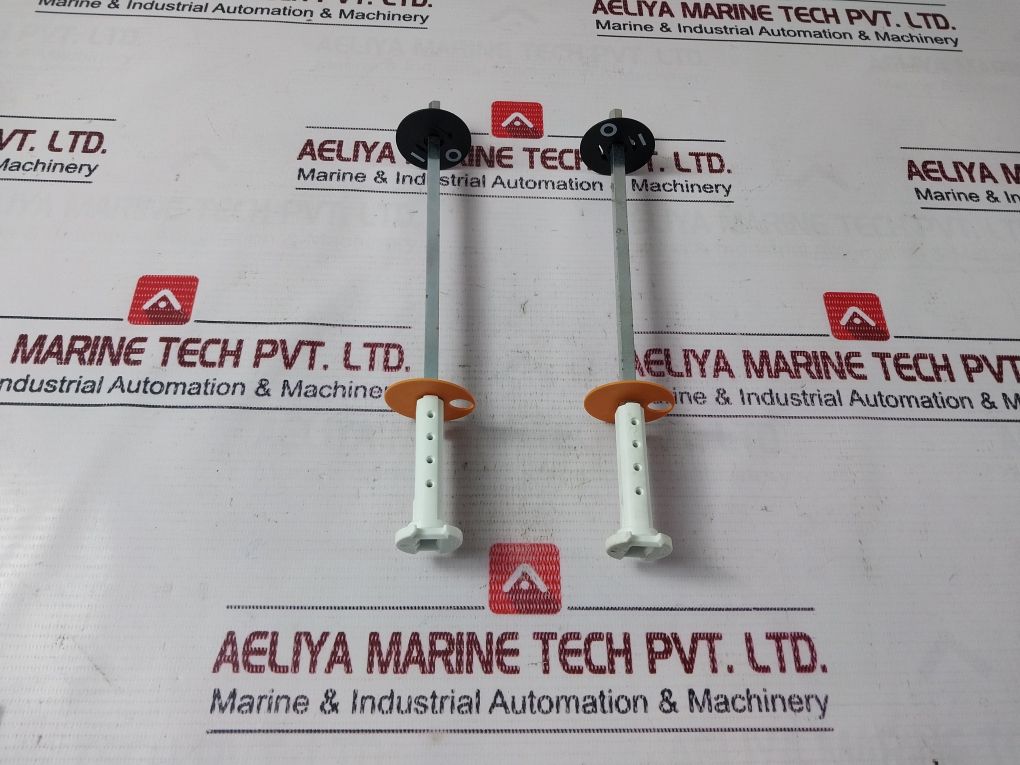

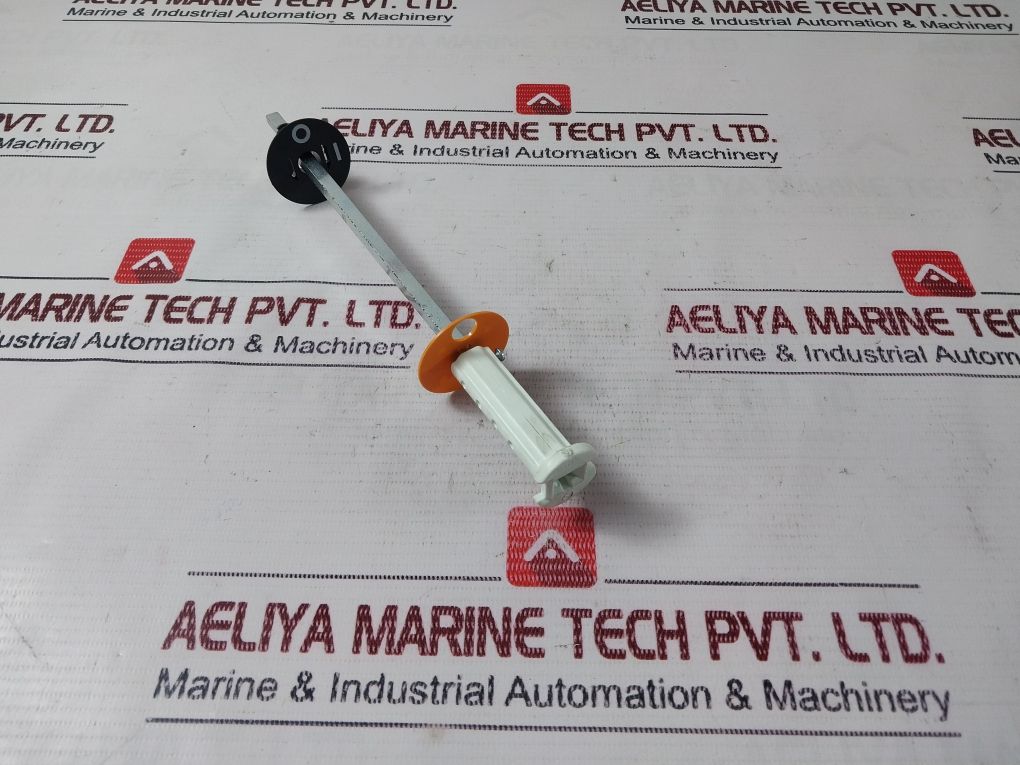

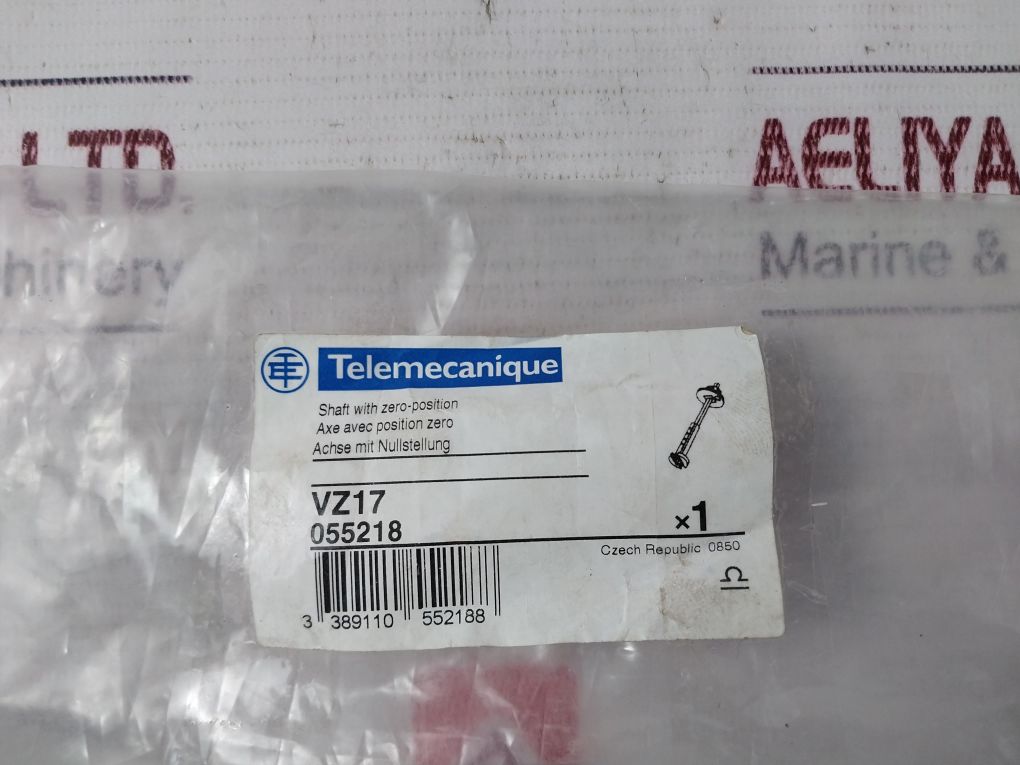

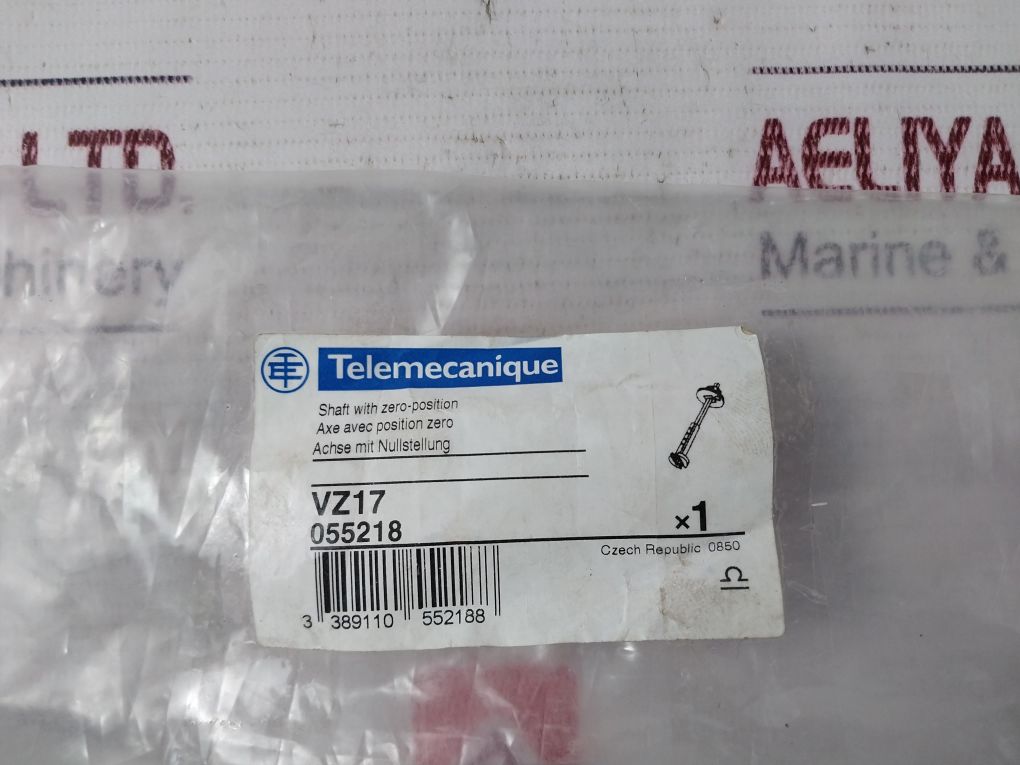

- Accessories: Includes contact block and a zero-position shaft (Vz17) for additional safety and control
- Additional Model Codes: 501-sb001, 15403 01 A 3, 3R 0848 for product identification and compatibility
- Manufacturing Part Number: 20195159p
- Weight: 800 grams, compact yet durable, designed for stability and secure installation
- Country of Manufacture: Czech Republic
Built for Industrial Safety and Reliability:
The Telemecanique KCF1PZ Load Break Switch is meant for environments demanding the most selective load control and reliable power disconnection. Complete disconnection is achieved with a 3-pole design, while at 40A current rating and 690V, this switch is versatile for applications in quite diverse industrial activities. It is also constructed according to IEC/EN 60947-3 standards, so it's quality, safe, and dependable.This switch set comes with contact block accessories and a zero-position shaft for enhanced operational safety and flexibility. The 600V 5kA RMS symmetrical short circuit rating adds another layer of protection, making it suitable for high-power setups where surge resistance is essential.
Why Choose the Telemecanique KCF1PZ 3 Pole Load Break Switch?
- High Voltage Capacity: Supports up to 690V, making it ideal for demanding power applications in industrial settings.
- Industrial Compliance: Certified to IEC/EN 60947-3 standards, ensuring safe and reliable operation.
- Built-In Safety Accessories: Includes contact block and zero-position shaft for safe and secure control.
- Compact and Durable Design: Weighing only 800 grams, this switch is robust and easy to install.
Ideal Applications:
The Telemecanique KCF1PZ 3 Pole Load Break Switch is suitable for:
- Industrial Power Management: Ensures safe load disconnection in high-voltage environments.
- Manufacturing Facilities: Ideal for isolating power to machinery, ensuring safe maintenance and operation.
- HVAC Systems: Used to control and isolate loads in large-scale heating, ventilation, and air conditioning systems.
- Power Distribution Systems: Provides dependable isolation for sections of a distribution network, enhancing safety and control.
Product Advantages:
The Telemecanique KCF1PZ Load Break Switch offers robust protection and effective load management for industrial facilities. With its advanced safety features, durable construction, and compliance with international standards, it’s a top choice for professionals seeking a reliable and efficient load isolation solution.
