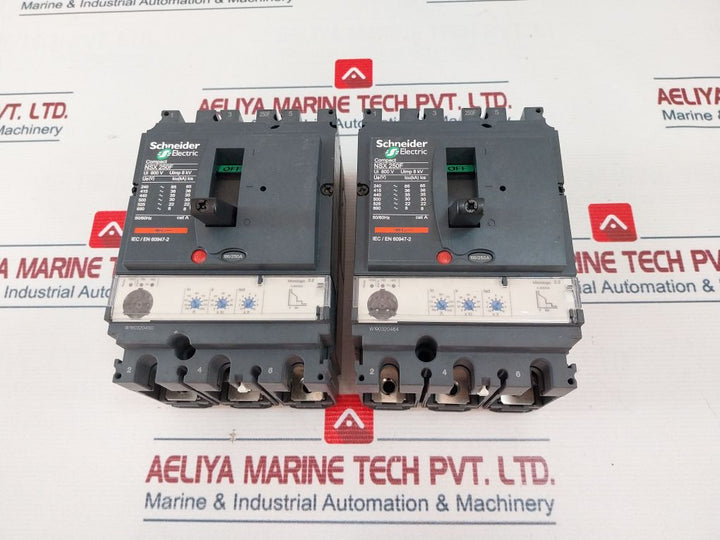

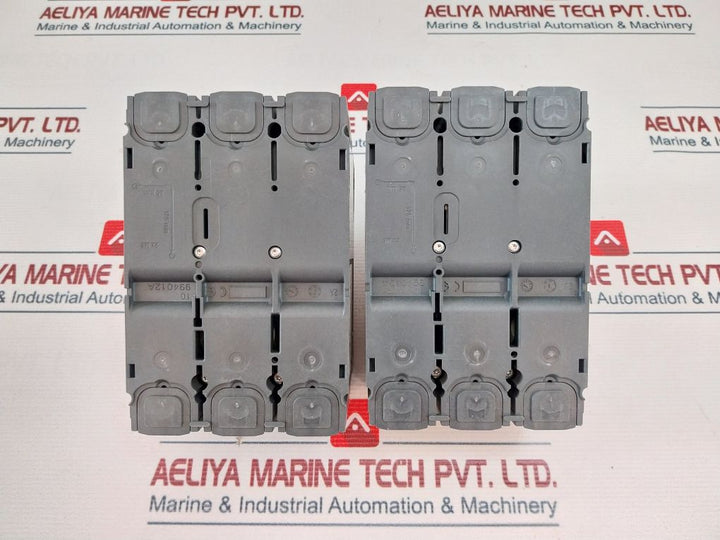

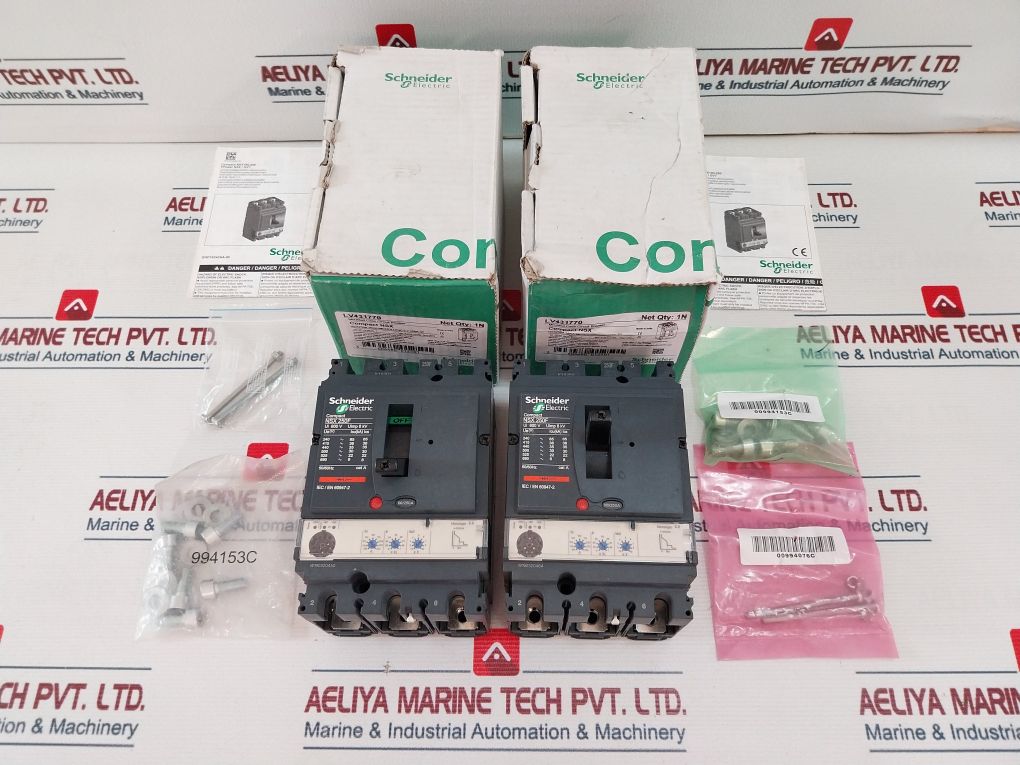

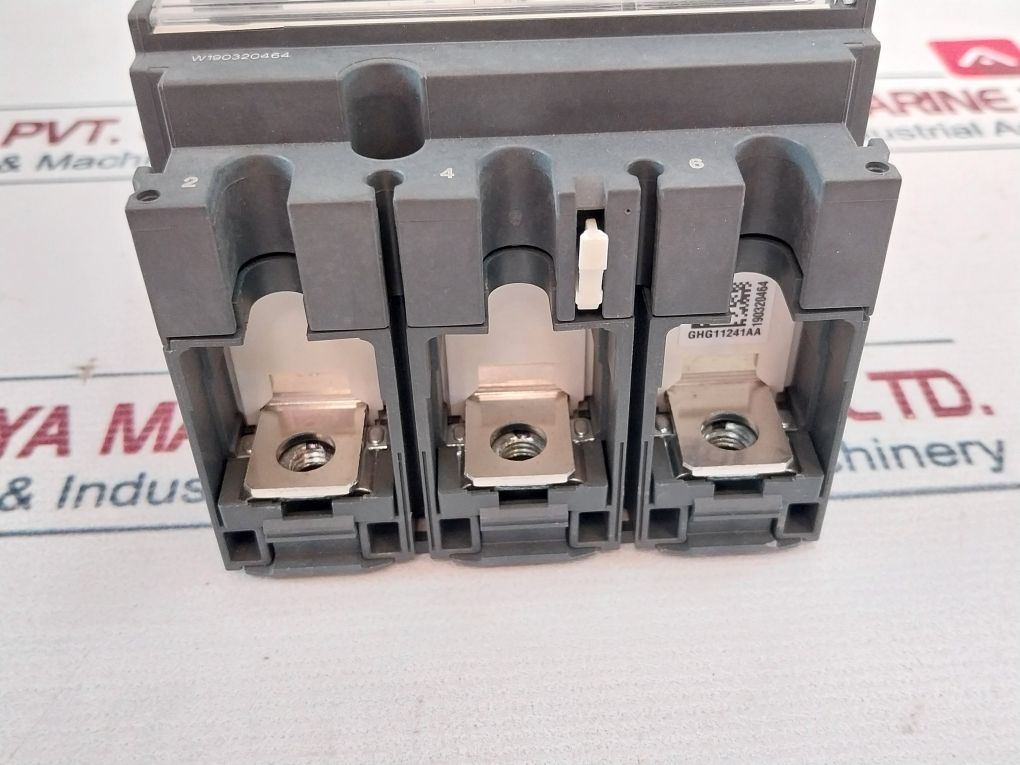

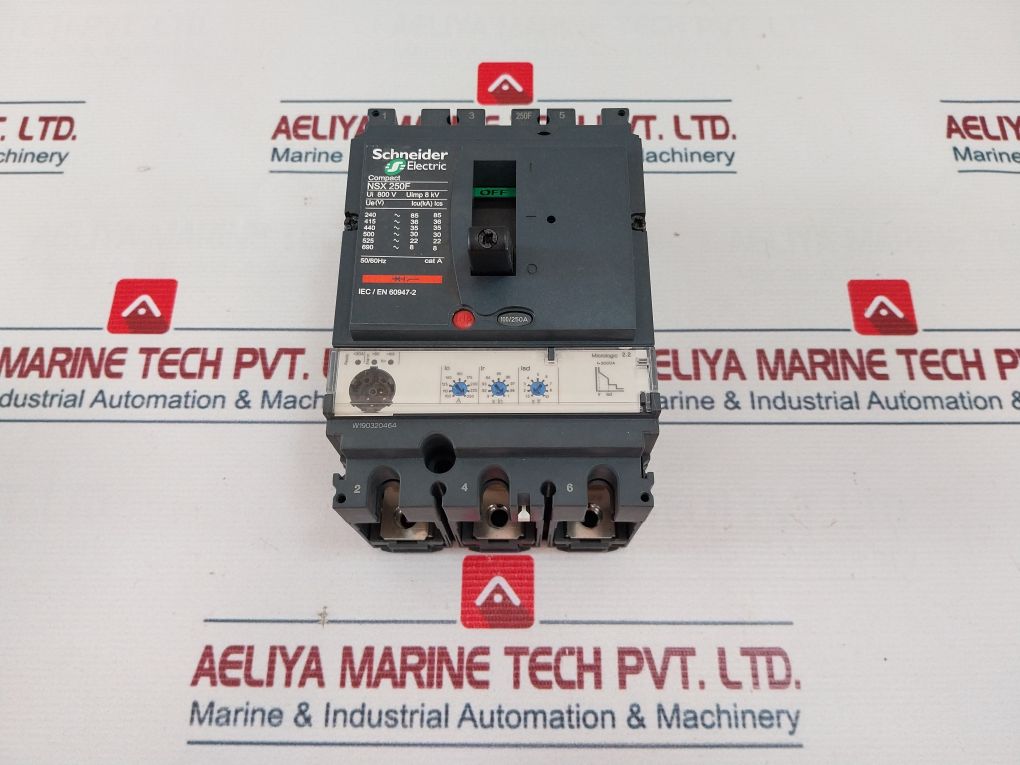

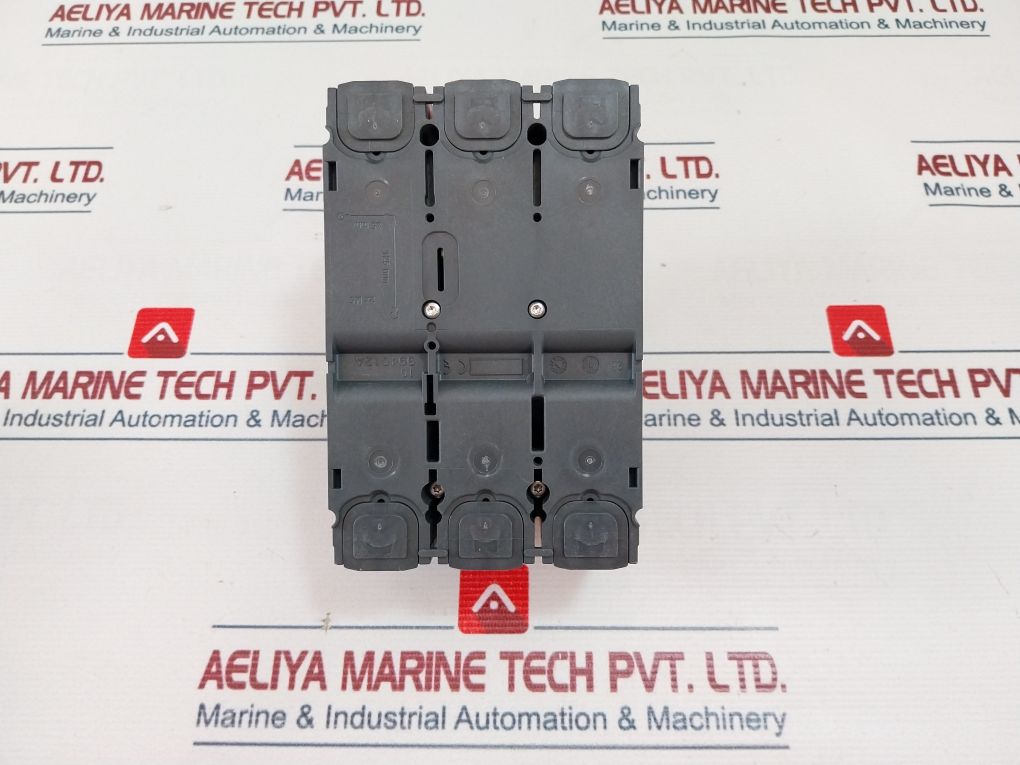

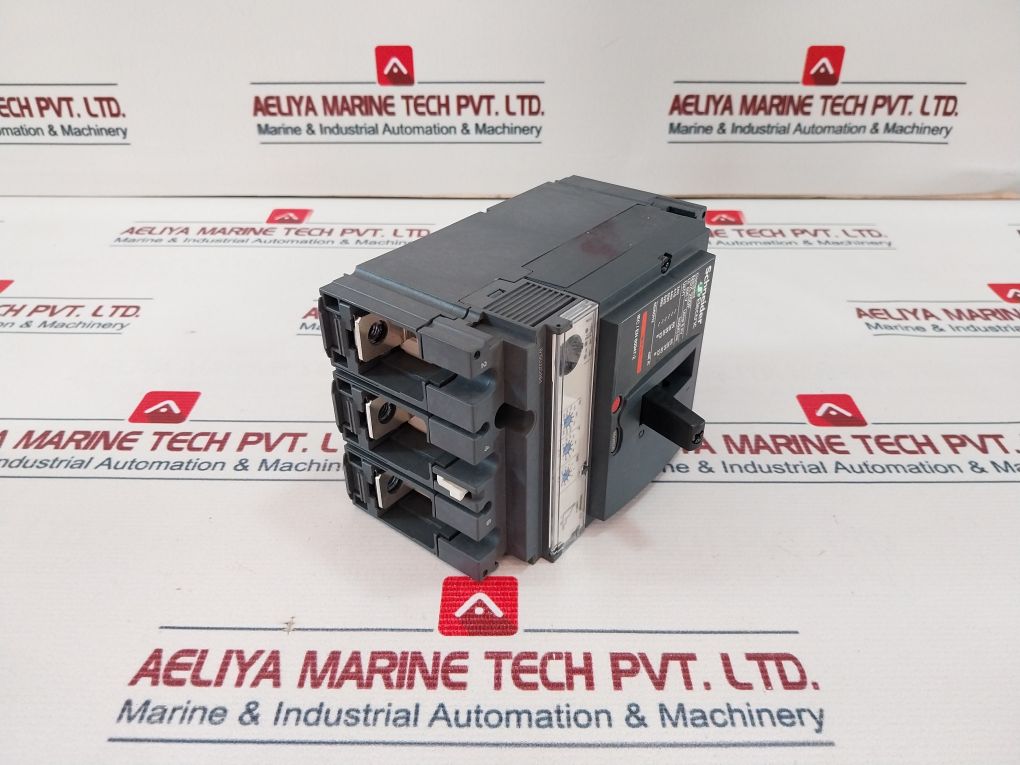

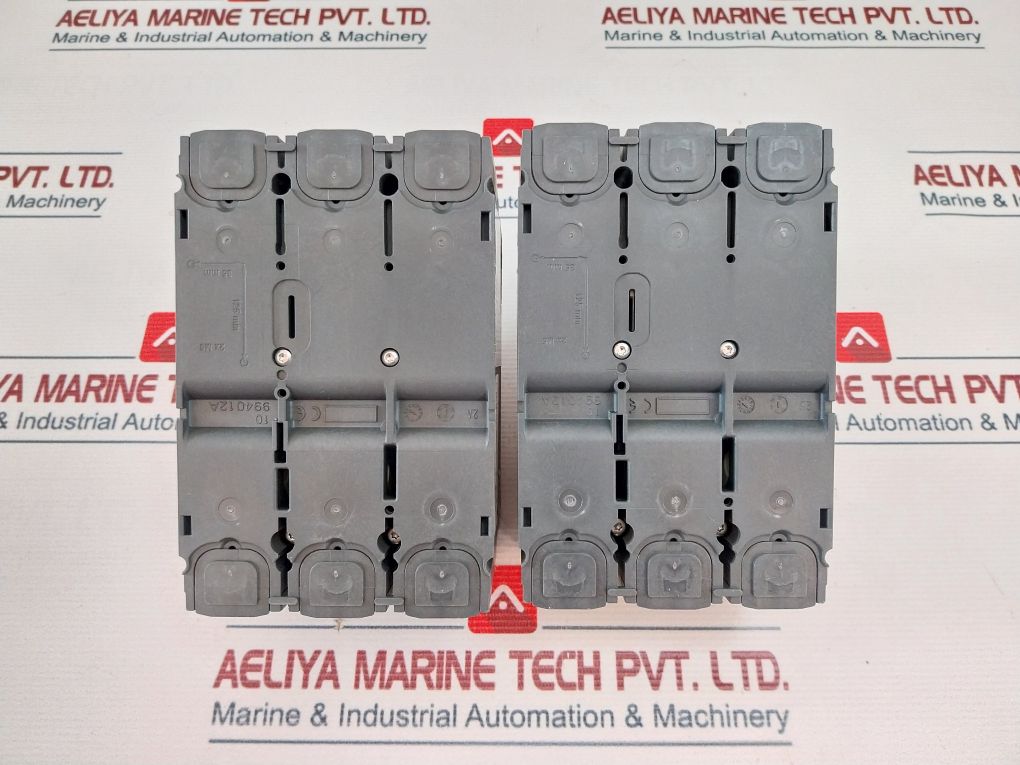

Schneider Electric Nsx 250 F Moulded Case Circuit Breaker Lv431770

High-performance, heavy-duty solutions for all industries and commercial applications where circuit protection is an issue, the Schneider Electric NSX 250 F Moulded Case Circuit Breaker (MCCB) is model LV431770. Part of Schneider Electric's compact NSX series, the NSX 250 F MCCB was designed with utmost performance, safety, and ease of installation for power applications in systems that draw high power. This circuit breaker comes with rated current as high as 250A, rated insulation voltage of 800V, which ensures robust protection against overloads, short circuits, and other electrical faults in critical environments.

This is an industrial circuit breaker of Category A compliance and of IEC/EN 60947-2 certification with the handling of a wide range of industrial conditions. The 8kV impulse withstand voltage Uimp also safeguards from high transient overvoltages, while its tripping current is set at 125% for yet another layer of security, ensuring that the breaker acts rapidly to anomalies in the electrical operations for the safety of equipment and operators alike.

Key Features:

• High Current Capacity: Rated for up to 250A, making it suitable for a wide range of industrial applications where heavy-duty circuit protection is essential.
• Robust Insulation and Withstand Voltage: With a rated insulation voltage of 800V and an impulse withstand voltage of 8kV, the NSX 250 F MCCB provides reliable protection even in high-voltage environments.
• Three-Pole Configuration: The 3P design ensures secure connection across three phases, ideal for three-phase systems requiring comprehensive protection.
• Compact NSX Series Design: As part of the Compact NSX range, this circuit breaker combines high performance with a compact, space-saving design, allowing for easy integration into various electrical panels.
• Category A Compliance and IEC/EN 60947-2 Certified: Compliant with international standards for performance and safety, making it suitable for global installations and ensuring consistent reliability.
• Tripping Current Setting: With a tripping current set at 125%, this breaker is designed to respond effectively to overload conditions, providing enhanced protection for equipment.

Product Specifications:

• Brand: Schneider Electric
• Series: Compact NSX
• Model: NSX 250 F
• Part Number: LV431770
• Product Type: Moulded Case Circuit Breaker (MCCB)
• Rated Current (In): 100/250 A
• Voltage Rating (Ui): 800 V
• Impulse Withstand Voltage (Uimp): 8 kV
• Frequency: 50/60 Hz
• Category: Category A
• Standard Compliance: IEC/EN 60947-2

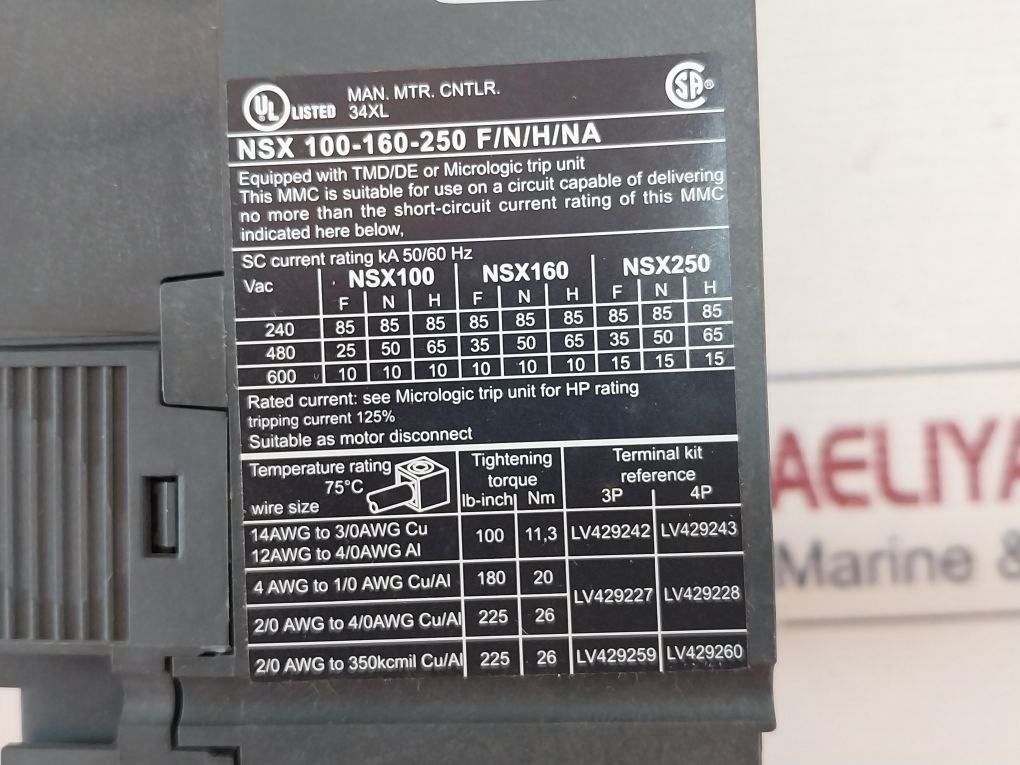

• Tripping Current: 125%
• Pole Configuration: 3P

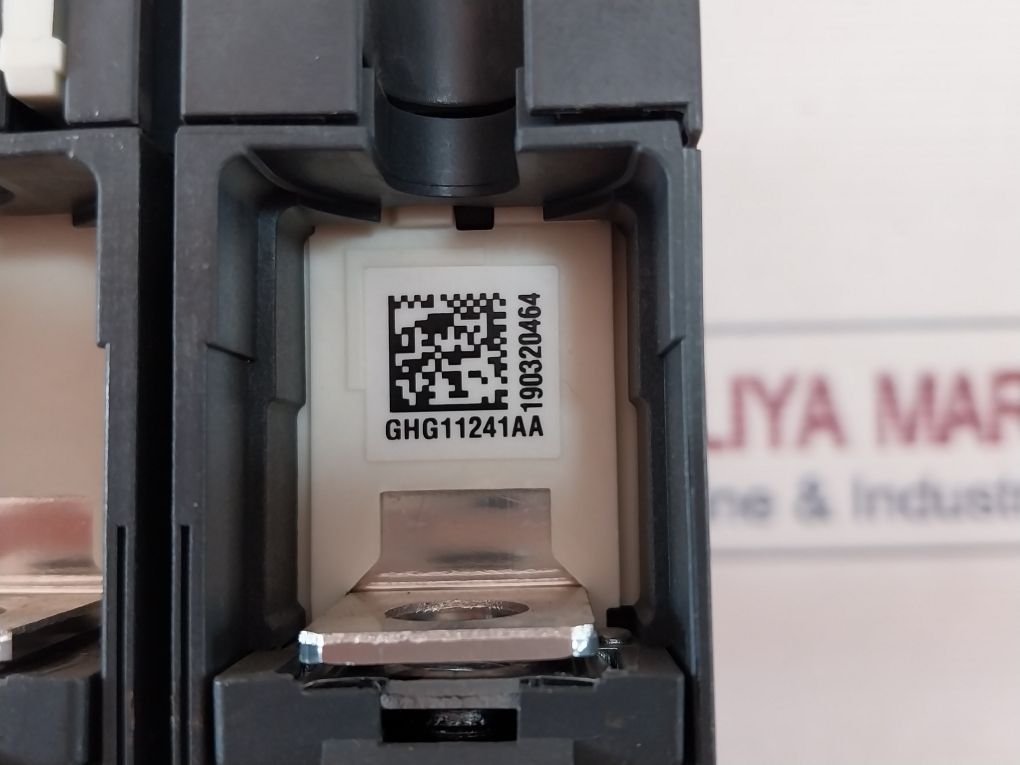

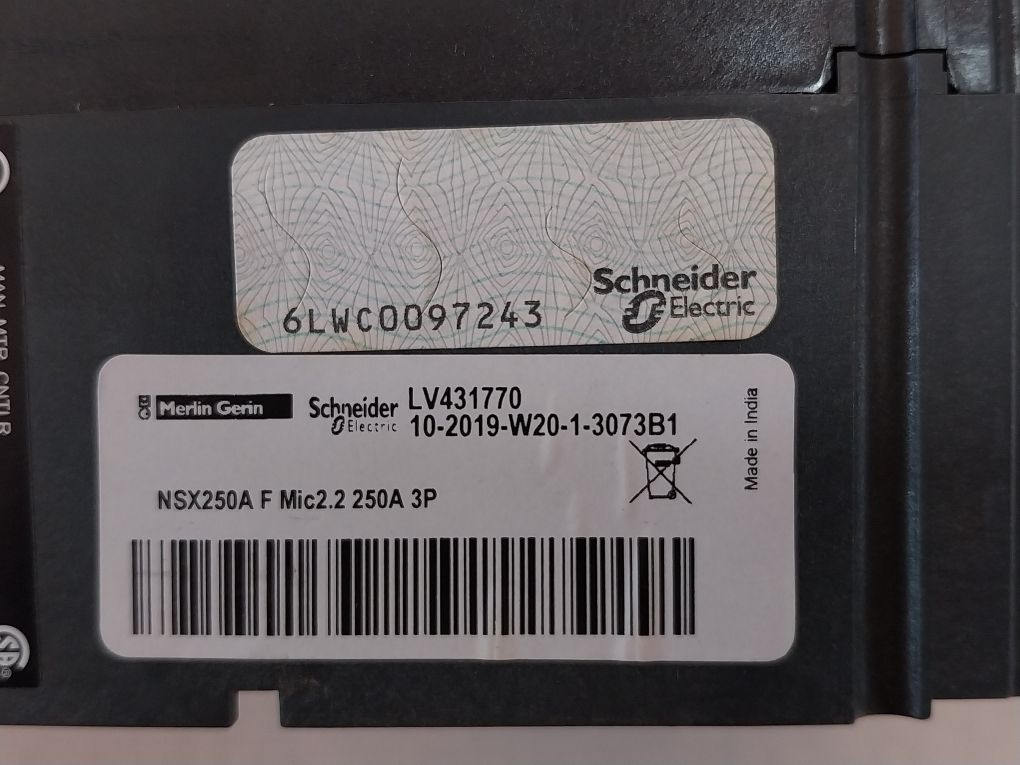

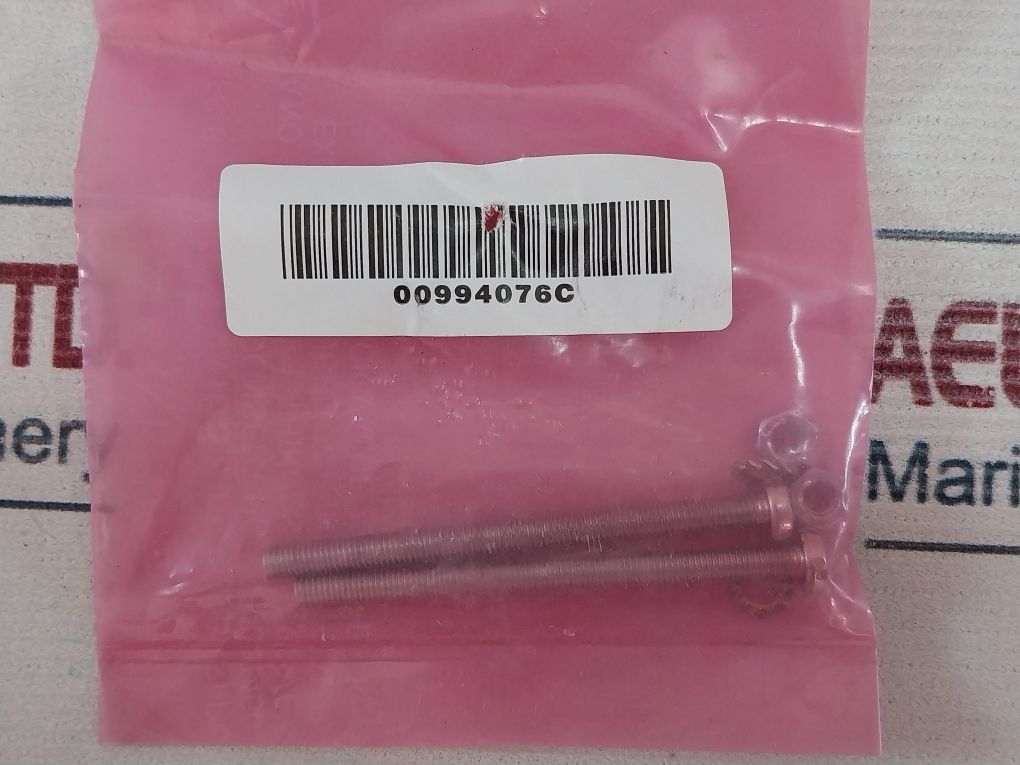

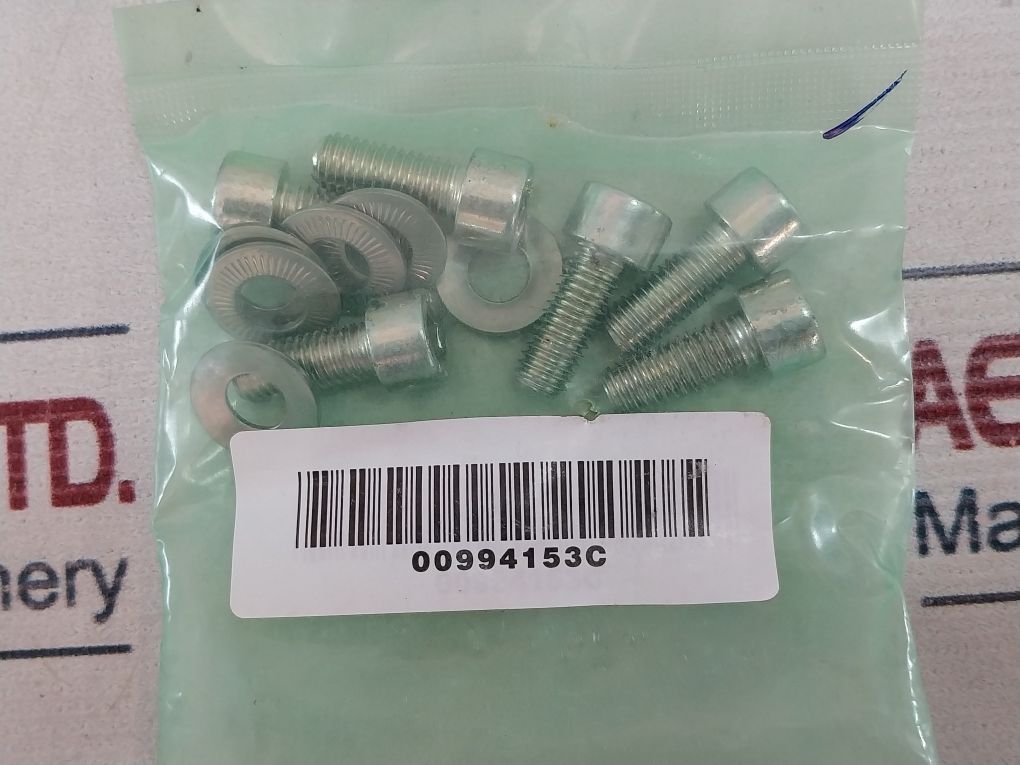

• Additional Codes: 6LWC0097243, 00994153C, 00994076C

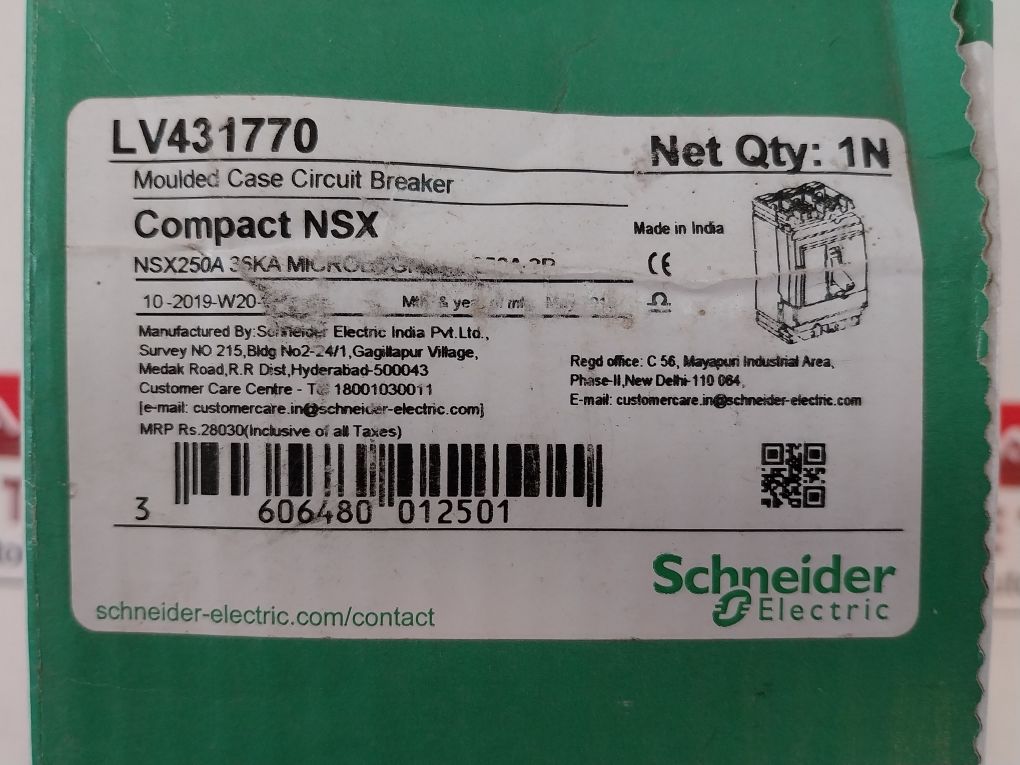

• Barcode: 3 606480 012501
• Country of Manufacture: India
• Weight: 2.020 kg

Applications:

The Schneider Electric NSX 250 F MCCB is designed for use in high-demand environments where reliable circuit protection is paramount. Some common applications include:

• Manufacturing Facilities: Ideal for protecting heavy-duty machinery and electrical equipment in industrial plants.
• Commercial Buildings: Provides reliable circuit protection for large office buildings, retail centers, and other commercial infrastructure.
• Power Distribution Systems: Ensures safe and stable power distribution in infrastructure projects, substations, and utilities.
• Renewable Energy Systems: Useful for solar and wind energy systems that require robust protection for power management and distribution.

Why Choose the Schneider Electric NSX 250 F Circuit Breaker?

It has high-performance circuit protection with enhanced safety and reliability features. Its rugged construction and compliance with IEC/EN 60947-2 make the Schneider Electric NSX 250 F MCCB reliable for the applications in industries, commercial places, or infrastructural sets. NSX 250 F is built from the renowned engineering that creates reliability while cutting down downtime and improving safe operation of equipment by reducing threats of electrical faults and overloads.
