| Specification | Details |
|---|---|
| Brand | Telemecanique / Schneider Electric |
| Model | EL05-966-2 |
| Control Board Reference | LC1K09 0085E7 / LC2K09 015E7 |
| Voltage Rating | 460 Vac 50/60 Hz |
| Secondary Voltage Rating | 48V 50/60 Hz |
| Current Rating (Ith) | 20 A |
| Insulation Voltage (Ui) | 690 V |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Continuous Current | 20 A |
| Torque | 7 lbs-in |
| Conductor AWG | 12-18 Cu |
| Temperature Rating | 60/75°C |
| Standards | BS 5424, NFC 63110, VDE 0660, JEM AC3.1.0-1 |
| Maximum Voltage | 600 V |
| Control Board References | LC1K09 105E7, 2F08165, LC1K09 0085E7, LC2K09 015E7 |
| Product Codes | 9085004870000317, 2F08166317 E7, 9085004870000309, 2F08165309 E7 |
| Country of Manufacture | France |
| Weight | 1.840 kg |

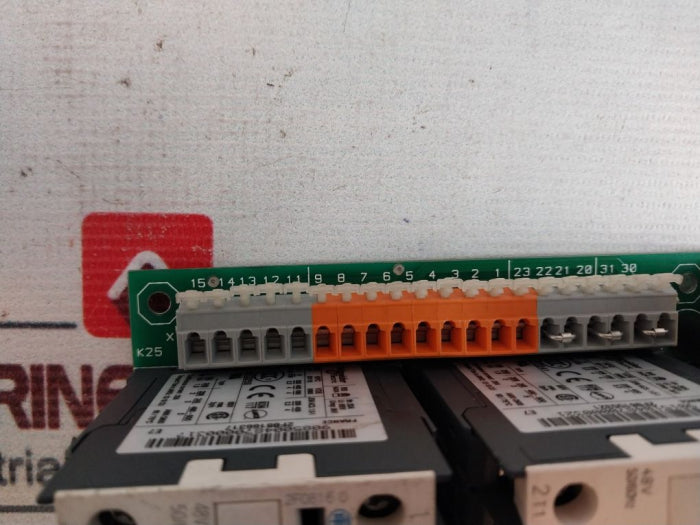

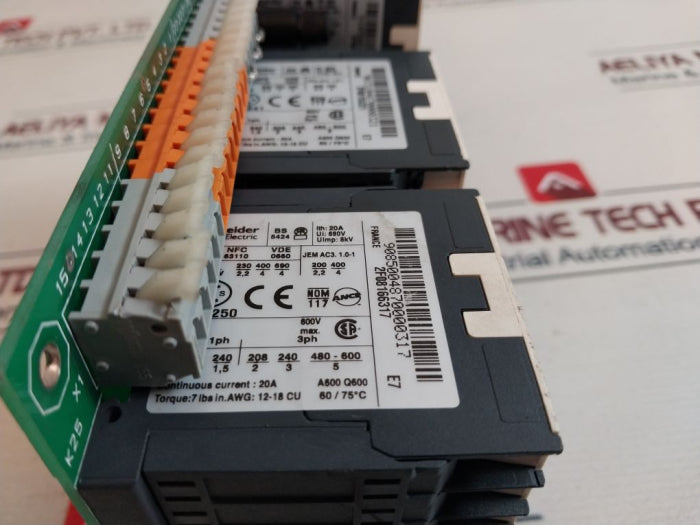

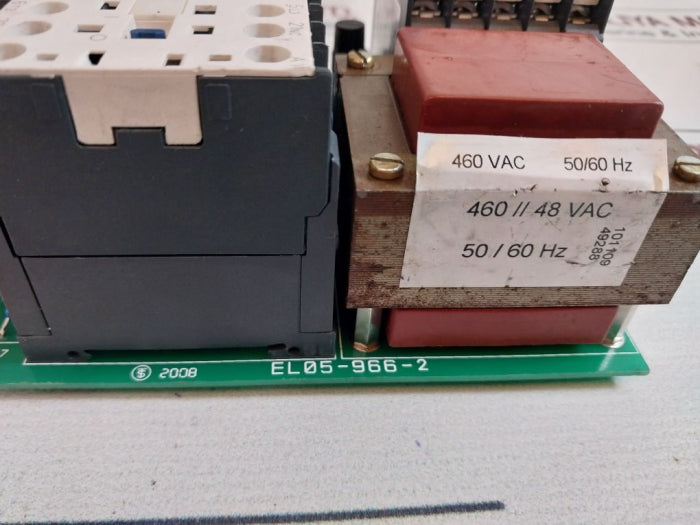

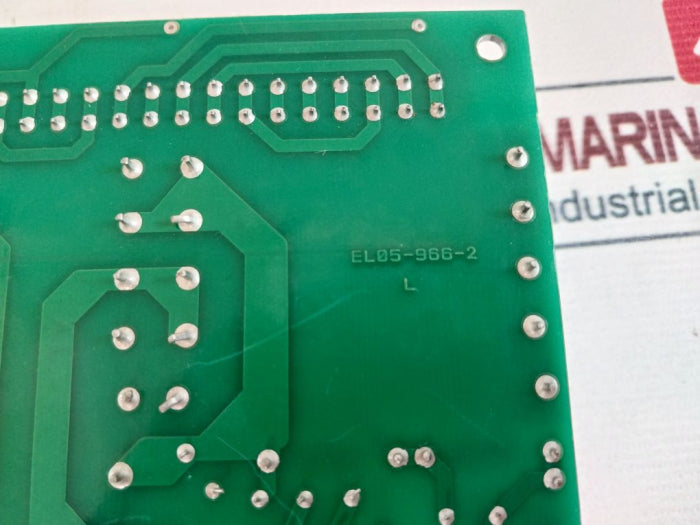

The Telemecanique EL05-966-2 Control Board is an industrial high-performance heavy-duty control board manufactured by Telemecanique under the umbrella of Schneider Electric specifically for industrial use requiring reliable current and voltage control. Its working power is 460V, with a frequency range of 50/60Hz. This control board offers performance with consistent and high efficiency. Operating continuously up to 20A of currents in conditions requiring high durability and safety, the EL05-966-2 is set to take on anything.
This control board is, therefore, compliant and qualifies for several international standards including BS 5424, NFC 63110, and VDE 0660. Being provided with Ui = 690V and a Uimp of 8kV, it guarantees long-term stable operation even in the most difficult conditions resulting from reliable protection against overvoltage. Its LC1K09 and LC2K09 contactors make the board very flexible and convenient for any heavy-duty application.
Key Features:
- High Voltage Operation: Rated for 460V at 50/60Hz, making it ideal for applications requiring robust power control in industrial settings.
- Continuous Current Capacity: Supports continuous operation with a current rating (Ith) of 20A, ensuring stable performance under heavy load conditions.
- Impressive Withstand Voltage: Designed with a Ui of 690V and an impulse withstand voltage (Uimp) of 8kV, providing enhanced protection against voltage spikes and surges.
- Comprehensive Certifications: Certified to BS 5424, NFC 63110, and VDE 0660, ensuring compliance with international standards for safety and reliability.
- Temperature and Torque Rating: Operates effectively in environments with temperatures up to 75°C. The board has a torque rating of 7 lbs-in and is compatible with 12-18 AWG copper conductors, making it adaptable for various installations.

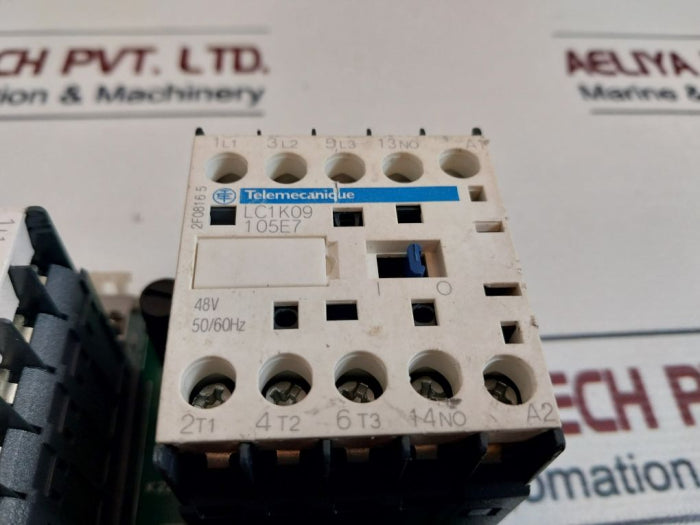

- Multi-Component Design: Features the LC1K09 0085E7, LC1K09 105E7, and LC2K09 015E7 contactors, enabling it to be integrated into different setups for optimized functionality.
Product Specifications:
- Brand: Telemecanique / Schneider Electric
- Model: EL05-966-2
- Voltage Rating: 460V, 50/60Hz
- Secondary Voltage: 48V, 50/60Hz
- Continuous Current (Ith): 20A
- Insulation Voltage (Ui): 690V
- Impulse Withstand Voltage (Uimp): 8kV
- Current Rating: 20A
- Torque Rating: 7 lbs-in
- Conductor AWG: 12-18 Cu
- Standards Compliance: BS 5424, NFC 63110, VDE 0660, JEM AC3.1.0-1
- Maximum Voltage: 600V
- Component Part Numbers: LC1K09 0085E7, LC1K09 105E7, LC2K09 015E7
- Product Codes: 9085004870000317, 2F08166317 E7, 9085004870000309, 2F08165309 E7
- Country of Manufacture: France
- Weight: 1.840 kg
Applications:
The Telemecanique EL05-966-2 Control Board is designed for a wide range of industrial applications requiring reliable and efficient control of high voltage and current levels. Common applications include:
- Manufacturing and Processing Plants: Ideal for use in environments where consistent power control and protection are crucial for operating heavy machinery.
- Industrial Automation: Provides dependable performance in automated systems where control boards need to handle high loads and rapid switching.
- Renewable Energy Systems: Suitable for renewable energy applications, particularly in systems where voltage control and protection are critical.
- HVAC Systems: Can be used in HVAC systems to control power distribution and ensure efficient operation across all components.
Why Choose the Telemecanique EL05-966-2 Control Board?
Telemecanique's EL05-966-2 Control Board delivers efficient high-performance power control and protection to the industrial environment. It delivers the benefit of international certifications, high build quality, and a good insulation voltage that promises to satisfy all the requirements of the industries. Apart from these benefits, this board also proves long-lasting performance for long hours due to its vast capacity in handling current levels and impulses. This supports reduced maintenance and better operational efficiency.
