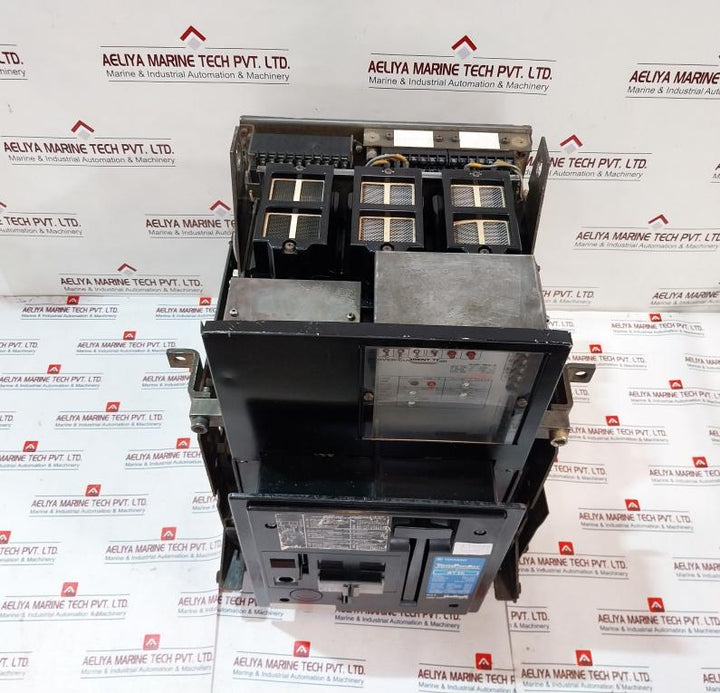

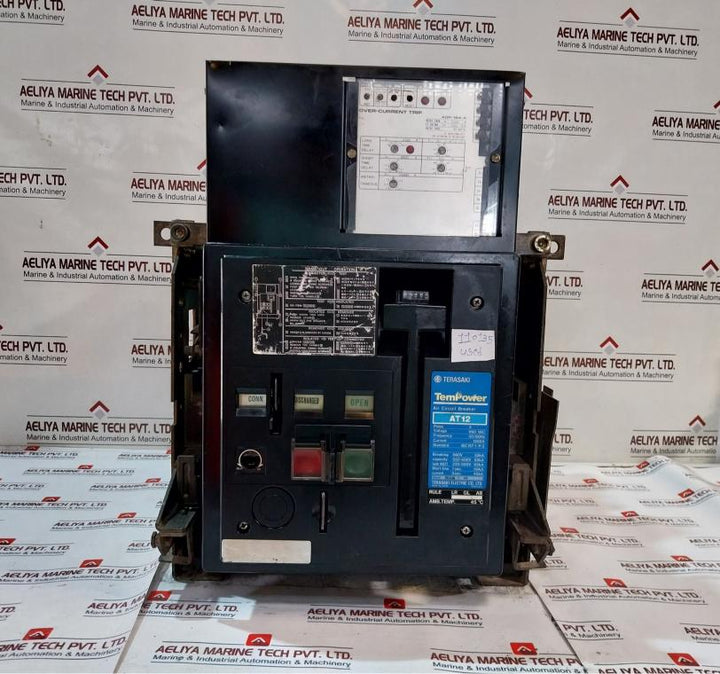

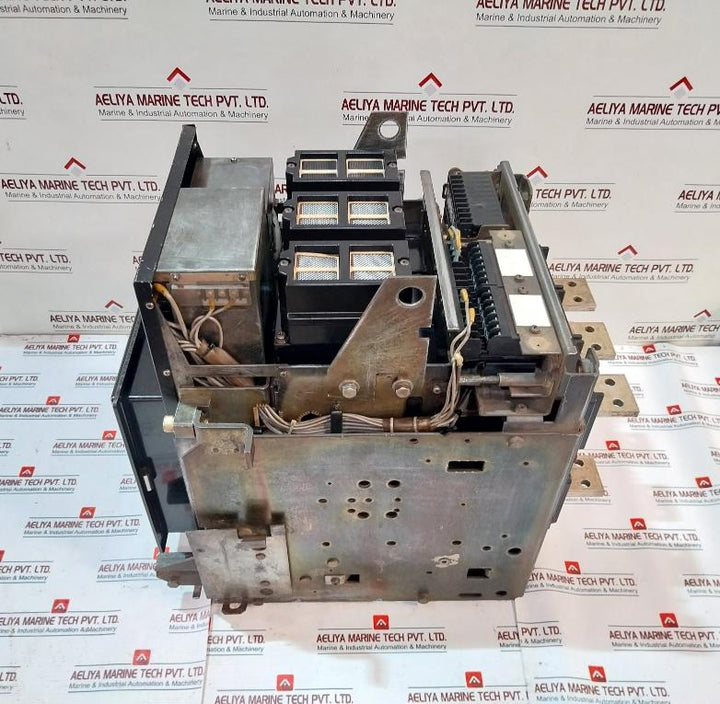

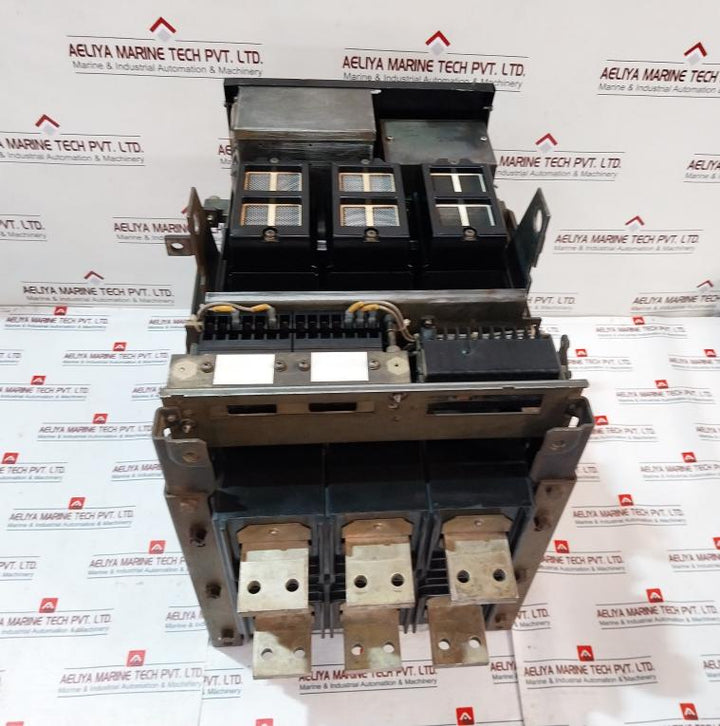

Product | Terasaki Electric At12 Tempower Air Circuit Breaker 3 Pole 1250A 50/60Hz |
---|---|
Manufacturer | Terasaki Electric Co., Ltd. |
Brand | Tempower |
Type | Air Circuit Breaker |
Model | AT12 |
Number of Poles | 3 |
Voltage | 660 Vac |
Frequency | 50/60 Hz |
Current | 1250 A |
Standard | IEC 157-1-p-2 |
Breaking Capacity (With Inst) | 660V 35kA, 550-600V 50kA, 220-500V 65kA |
Short Time Current | 1 Sec 50kA, 3 Sec 45kA |
Additional Codes | NQH9316C1 |

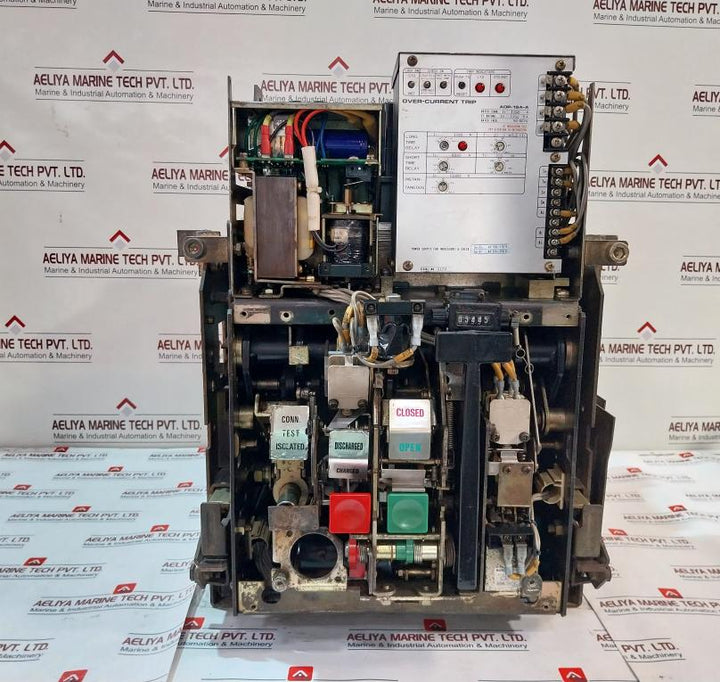

Over-current Trip | AOP-1SA-A |
Rated Current (Io) | 1190 A |
CT Rating (ICT) | 1250/5 A |
Rated Frequency | 50-60 Hz |
Long Time Delay | I1: 1190A, T1: 20S At 1.2 X I1 |
Short Time Delay | I2: 8330A, T2: 220 Ms |
Instantaneous | I3: 11900A |
Voltage Ratings | AC 100~110V, AC 200~220V |
Magnet Hold Trigger | ATT-1, TA-8472-1 |
Auxiliary Switch | AXT-1C, 3A3B, RQU2057A1 |
UVT Trip Device | Type: AUT-1B0, Voltage: AC200-240 |
Part Number | BTUS0001A1-4 |
Accessories | Motor Charging: AC220V, AOR-4L, Io: 1091A, CT: 1250A/5A, Under Voltage Trip: AC220V, Aux. Sw. 5A 5B, ATPS0005A2 |
Country of Origin | Made In Japan |
Weight | 80 Kg |
The Terasaki AT12 Teampower Air Circuit Breaker, a superior solution designed for robust and reliable circuit protection. This high-capacity air circuit breaker (ACB) is engineered to meet the demanding requirements of modern electrical systems. With a nominal current rating of 1250 amperes, a three-pole configuration, and compatibility with both 50Hz and 60Hz frequency systems, the AT12 Teampower offers exceptional versatility and performance for industrial, commercial, and utility applications.
Key Features
- Current Rating: The AT12 boasts a substantial 1250A current rating, making it suitable for managing high current loads and providing effective protection in heavy-duty applications.
- Frequency Compatibility: Designed to operate efficiently in both 50Hz and 60Hz systems, ensuring broad applicability and ease of integration into diverse electrical setups.
- Three-Pole Configuration: Offers comprehensive protection across all three phases, enhancing the safety and reliability of your electrical system.
- Robust Construction: Built with high-quality materials and advanced engineering techniques, the AT12 is designed to withstand harsh environmental conditions and mechanical stress, ensuring long-lasting performance.
- Advanced Protective Features: Incorporates Terasaki’s state-of-the-art protection technology, providing accurate and reliable interruption of electrical faults such as overloads, short circuits, and ground faults.
- User-Friendly Design: Features a straightforward installation process with clearly labeled connections and a user-friendly interface, reducing setup time and simplifying maintenance tasks.
Technical Specifications
- Model: Terasaki AT12 Teampower
- Rated Current: 1250 Amperes
- Poles: 3 Pole
- Operational Frequency: 50/60Hz
- Interrupting Capacity: High performance under fault conditions, ensuring rapid and reliable interruption of electrical faults
- Mounting Type: Available in both fixed and draw-out versions to suit different installation needs
- Certifications: Compliant with international safety and quality standards, including IEC and CE certifications
Applications
The Terasaki AT12 Teampower Air Circuit Breaker is ideal for a wide range of applications, including industrial plants, commercial buildings, and utility systems where reliable and high-capacity electrical protection is essential. Its advanced protection features and high current rating make it particularly suitable for critical installations that require dependable operation and minimal downtime.
Benefits
- Enhanced Safety: Provides robust protection against electrical faults, safeguarding both equipment and personnel from potential hazards.
- Operational Efficiency: Ensures optimal performance with quick response times and precise interruption capabilities, reducing the risk of damage and downtime.
- Versatility: The ability to operate in both 50Hz and 60Hz systems, along with the three-pole configuration, makes it a versatile solution for various electrical setups.
- Longevity: Designed for durability, the AT12 offers a long operational life, reducing the need for frequent replacements and maintenance.
