Inside the Alspa C80-75: Programmable Control for Demanding Automation Systems

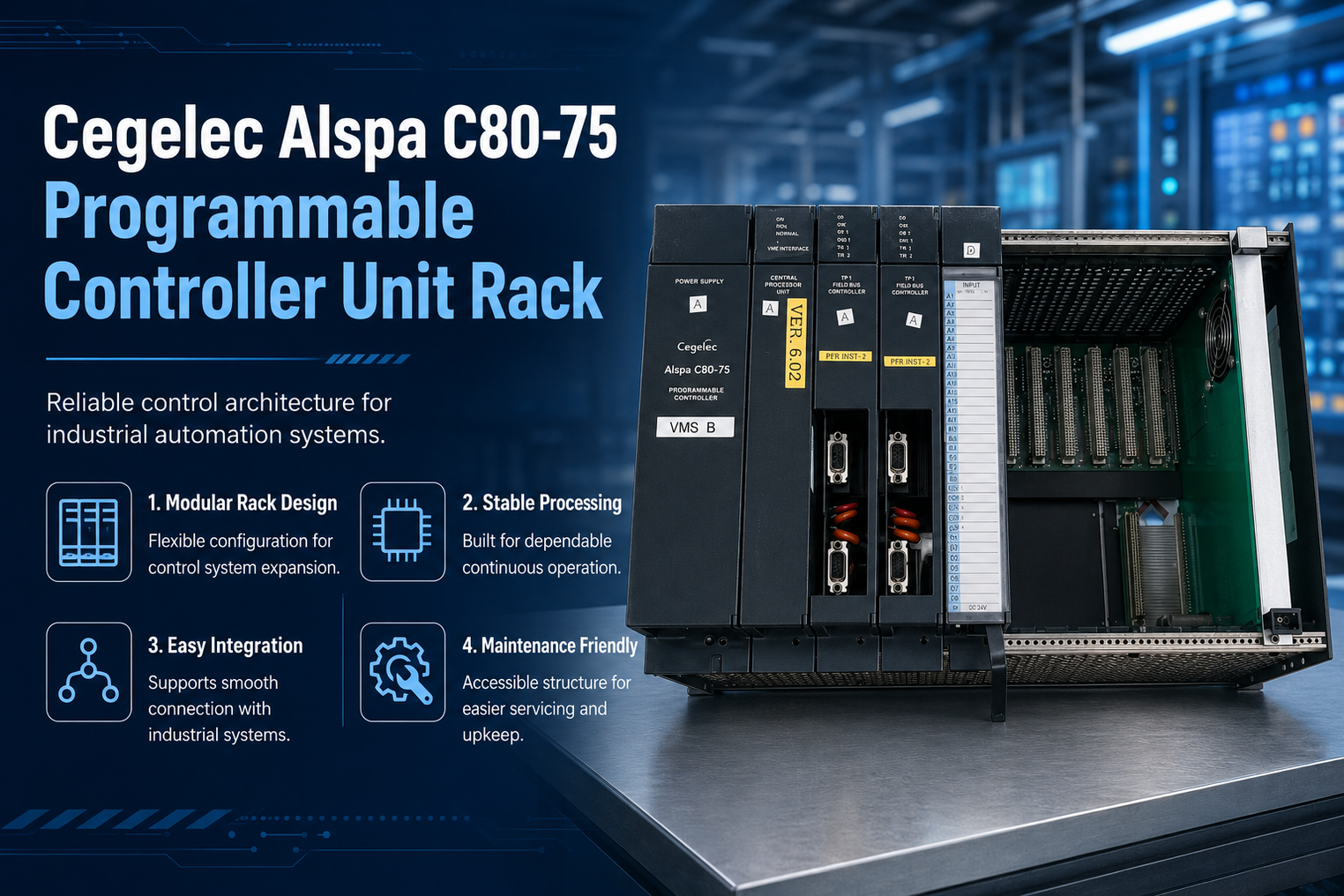

The Cegelec Alspa C80-75 Programmable Controller Unit Rack, catalog number IC697CHS782D, represents a robust and versatile foundation for industrial automation systems. As part of the renowned Cegelec Quantum series, this 17-slot rear-mount rack provides the physical backbone for building sophisticated programmable logic controller (PLC) systems capable of handling complex manufacturing, marine, and process control applications. Engineered with precision and built to endure demanding industrial environments, the Alspa C80-75 rack delivers exceptional reliability and expandability for mission-critical operations.d

Understanding the Cegelec Quantum Series Architecture

The Cegelec Quantum series has long been recognized as a premier platform for industrial automation, offering seamless integration between hardware components and software programming environments. The Alspa C80-75 programmable controller serves as the central nervous system of this architecture, housing the CPU, power supply, communication modules, and I/O cards within its sturdy chassis. The Viking II logic power subsystem ensures clean, stable power delivery to all installed modules, minimizing the risk of data corruption or system instability during operations.

What sets the Quantum series apart is its modular design philosophy. Each component can be individually serviced, upgraded, or replaced without disrupting the entire system. This modularity translates to reduced downtime and lower total cost of ownership over the system lifecycle. The IC697CHS782D rack, being a 17-slot configuration, offers ample room for system expansion, allowing engineers to add I/O points, communication interfaces, and specialty modules as operational requirements evolve.

Key Technical Specifications of the IC697CHS782D Rack

The Cegelec IC697CHS782D rack comes with a comprehensive set of specifications designed to meet the stringent demands of modern industrial applications. Understanding these specifications is essential for proper system integration and optimal performance:

• Rack Configuration: 17-slot rear-mount design providing generous expansion capacity for complex control systems
• Power Input: 24VDC input requirement compatible with standard industrial power supplies
• Power Output: Delivers regulated 5V and 12V power at 0.85A and 1.3A respectively to support multiple module types
• Series Compatibility: 3.5 Series designation ensuring compatibility with a wide range of Quantum series modules
• Fieldbus Integration: Built-in FIP Fieldbus Controller enabling seamless communication with distributed I/O and smart field devices
• CPU Support: Accommodates the VMS B Central Processor Unit with firmware version 6.02 for advanced processing capabilities
• Construction: Rugged industrial-grade chassis designed for rear panel mounting in standard electrical enclosures
• Certifications: Manufactured to stringent quality standards in both Japan and Charlottesville, VA, USA

FIP Fieldbus Controller – Enabling Distributed Intelligence

One of the standout features of the Alspa C80-75 system is its integrated FIP (Factory Instrumentation Protocol) Fieldbus Controller. FIP is a robust industrial communication protocol designed specifically for real-time distributed control applications. By incorporating FIP fieldbus capability directly into the rack architecture, the IC697CHS782D enables seamless connectivity to smart sensors, actuators, and distributed I/O modules located throughout the facility.

This distributed approach to control system architecture offers numerous advantages. Rather than running hundreds of individual wires from every field device back to the central control cabinet, engineers can deploy distributed I/O nodes connected via a single fieldbus cable. This significantly reduces installation costs, simplifies maintenance, and improves system scalability. The FIP protocol's deterministic communication characteristics ensure that critical control loops maintain consistent timing, a vital requirement for process control applications.

Applications Across Industrial Sectors

The versatility of the Cegelec Alspa C80-75 programmable controller rack makes it suitable for a diverse range of industrial applications. In manufacturing environments, the rack serves as the control hub for assembly lines, robotic work cells, and material handling systems. The 17-slot capacity allows integration of specialized motion control modules, high-speed counters, and communication gateways to enterprise-level systems.

In marine and offshore applications, the rugged construction and reliable performance of the Quantum series make it ideal for propulsion control, machinery monitoring, and safety systems. The ability to operate in harsh environments with temperature extremes, vibration, and electromagnetic interference is crucial for maritime operations. The Cegelec brand's heritage in marine automation ensures that the Alspa C80-75 meets the demanding requirements of shipboard installations.

For process control industries including chemical, pharmaceutical, food and beverage, and water treatment, the IC697CHS782D provides the reliable platform needed for precise regulation of continuous processes. Integration with distributed control systems (DCS) and supervisory control and data acquisition (SCADA) platforms enables comprehensive process visibility and control from centralized operator stations.

Installation and Configuration Best Practices

Proper installation of the IC697CHS782D rack is essential for ensuring long-term reliability and optimal performance. The rack should be mounted in a clean, well-ventilated electrical enclosure using the rear mounting provisions. Adequate clearance should be maintained around the chassis to facilitate airflow and allow for module insertion and removal. The 24VDC power supply should be appropriately sized to handle the total current draw of all installed modules, with sufficient headroom for future expansion.

Grounding practices merit particular attention. The rack chassis must be connected to a proper earth ground using appropriately sized grounding conductors. This protects against electrical shock hazards, reduces electromagnetic interference, and provides a reference plane for sensitive electronic circuits. All signal cables should be routed away from high-voltage power cables, and shielded cables should be used for analog and communication signals to minimize noise pickup.

Related Industrial Automation Products

Building a complete automation system often requires complementary components from various manufacturers. Explore these related products available from Aeliya Marine Tech to enhance your control system infrastructure:

• Related Industrial Automation Component – Quality-tested automation hardware for your control systems
• Complementary Control Module – Expand your system capabilities with compatible modules
• Industrial Communication Interface – Enhance connectivity across your automation network
• Process Control Equipment – Precision instrumentation for demanding applications
• Marine Automation Component – Rugged solutions for shipboard installations
• PLC Expansion Module – Increase your system's I/O capacity

Why Choose the Cegelec Alspa C80-75 for Your Automation Needs

Selecting the right programmable controller platform is a critical decision that impacts operational efficiency, maintenance costs, and system longevity for years to come. The Cegelec Alspa C80-75 offers a compelling combination of proven reliability, extensive expandability, and broad industry acceptance. With its 17-slot capacity, integrated FIP fieldbus capability, and compatibility with the full range of Quantum series modules, this rack provides a future-proof foundation for automation systems of any scale.

Aeliya Marine Tech provides this quality-tested Cegelec IC697CHS782D programmable controller unit rack with comprehensive technical support. Every unit undergoes rigorous inspection and functional testing to ensure it meets the highest standards of performance and reliability. Our team of automation specialists can assist with system design, component selection, and integration guidance to help you achieve optimal results from your investment.

System Expansion and Upgrade Pathways

One of the most compelling advantages of the Cegelec Quantum series architecture is the straightforward pathway it provides for system expansion. The IC697CHS782D's 17-slot rack configuration ensures that organizations can start with a basic control system and incrementally add capability as operational requirements grow. Additional I/O modules can be installed in unused slots without disturbing existing wiring or programming. Communication modules can be added to connect the system to higher-level networks or to interface with new equipment. This incremental approach to system growth protects initial investments while providing a clear roadmap for future capability enhancement.

For organizations with legacy Cegelec or GE Fanuc control systems, the IC697CHS782D rack provides a migration platform that preserves existing programming while upgrading the hardware infrastructure. Application programs developed for earlier Series 90-70 systems can often be transferred to newer hardware with minimal modification, reducing the cost and risk of system modernization projects. The ability to maintain proven control logic while benefiting from improved hardware reliability and expanded communication options makes this evolutionary approach particularly attractive for mission-critical applications where extensive software revalidation would be prohibitively expensive.

Environmental Resilience and Durability

Industrial control systems must operate reliably in environments that would quickly destroy consumer-grade electronics. The IC697CHS782D rack is engineered to withstand the temperature extremes, humidity variations, vibration, and electromagnetic interference that characterize industrial facilities. The heavy-gauge steel chassis provides structural rigidity and electromagnetic shielding, while the gold-plated backplane connectors ensure reliable electrical connections even after years of module insertion and removal cycles. Every component is selected and qualified for industrial temperature ranges, ensuring consistent performance whether the rack is installed in an air-conditioned control room or an unprotected field enclosure.
