Dynafor LLXH Explained: Accurate Load Measurement for Heavy-Duty Applications

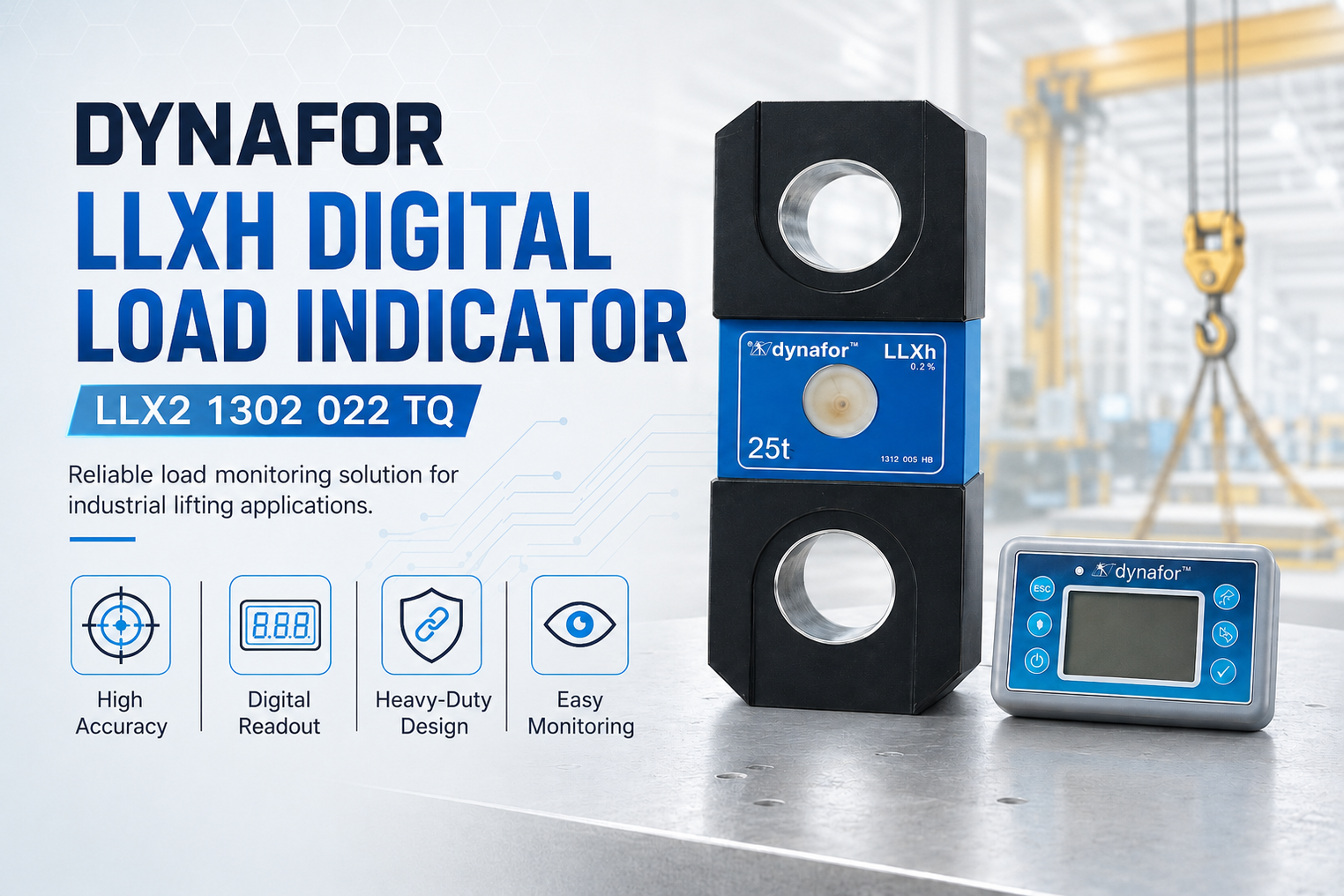

The Dynafor LLXH Digital Load Indicator LLX2 1302 022 TQ represents the pinnacle of precision load measurement technology from Dynafor, a member of the Tractel Group and one of the world's most respected manufacturers of lifting and load control equipment. This advanced digital load indicator delivers exceptional accuracy with a remarkable 0.2% precision rating, making it the instrument of choice for critical lifting operations, load testing, and weight measurement applications where exact readings are absolutely essential. Manufactured in France to the highest European quality standards, the LLXH system combines cutting-edge electronics with robust industrial design to provide reliable performance in the most demanding working environments.

Load indicators play a critical role in ensuring safety and efficiency across a wide range of industries including construction, shipping, manufacturing, and offshore operations. By providing accurate, real-time load measurements, these devices enable operators to work within safe load limits, prevent equipment overload, and maintain compliance with workplace safety regulations. The Dynafor LLXH system, with its 25-tonne capacity and crystal-clear LCD display, sets the standard for professional-grade load measurement instrumentation.

The Tractel Group Legacy in Lifting and Load Control

The Tractel Group has built an unparalleled reputation over decades as a global leader in lifting, load measurement, and height safety equipment. With manufacturing facilities and distribution networks spanning the world, Tractel products are trusted by professionals in construction, energy, mining, maritime, and industrial sectors. The Dynafor brand, operating under the Tractel umbrella, specializes in precision dynamometers, load cells, and tension measurement devices that incorporate the latest advances in strain gauge technology and digital signal processing.

What distinguishes Dynafor products from competitors is the company's commitment to precision engineering and rigorous quality control. Each load indicator undergoes extensive calibration and testing before leaving the factory, ensuring that it meets the stated accuracy specifications under real-world operating conditions. The LLXH series represents the latest evolution of Dynafor's digital load indicator line, incorporating user feedback and technological advances to deliver an instrument that is both more capable and easier to use than its predecessors.

Technical Specifications and Performance Characteristics

The Dynafor LLXH Digital Load Indicator is engineered to deliver outstanding measurement performance across its entire operating range. The system combines a precision load cell with advanced digital processing electronics to provide stable, repeatable readings even under dynamic loading conditions. Key technical specifications include:

• Accuracy Rating: Exceptional 0.2% precision, ensuring highly reliable load readings for critical applications
• Capacity: 25-tonne (25T) maximum load rating suitable for heavy lifting operations
• Model Designation: LLX2 1302 022 TQ with identification number 1332005H13
• Display Type: High-contrast LCD display providing clear readings in various lighting conditions
• Certification: IPT-Instituto de Pesquisas Technologicas certified, confirming compliance with Brazilian and international standards
• Origin: Manufactured in France under Tractel Group's strict quality management system
• Weight: 7.200 kg total system weight including display unit and load cell assembly
• Build Quality: Rugged construction designed for outdoor and industrial environments

Operating Principles and Measurement Technology

The Dynafor LLXH load indicator operates on the well-established principle of strain gauge measurement. When a load is applied to the system's load cell, microscopic deformation of the precision-machined sensing element occurs. This deformation changes the electrical resistance of strain gauges bonded to the element in a Wheatstone bridge configuration. The resulting electrical signal, proportional to the applied load, is amplified and processed by the system's digital electronics to produce an accurate weight reading on the LCD display.

The digital signal processing algorithms employed in the LLXH system provide several advantages over analog load indicators. Temperature compensation circuits automatically adjust readings to account for thermal effects on the strain gauge elements, ensuring accuracy across a wide ambient temperature range. Digital filtering eliminates the effects of mechanical vibration and shock, providing stable readings even when loads are in motion. The system's microcontroller also enables advanced features such as peak hold, tare function, and selectable measurement units that enhance operational flexibility.

Applications Across Heavy Industries

The versatility and precision of the Dynafor LLXH Digital Load Indicator make it an essential tool across numerous heavy industries. In construction and infrastructure projects, the load indicator is used to monitor the loads on tower cranes, mobile cranes, and lifting gantries during steel erection, concrete placement, and heavy equipment installation. The 0.2% accuracy ensures that operators can work close to equipment capacity limits while maintaining adequate safety margins, maximizing productivity without compromising safety.

In the shipping and maritime sector, the LLXH system plays a vital role in cargo handling operations, crane load monitoring, and shipyard lifting activities. Port terminals use these indicators to verify container weights for compliance with SOLAS VGM (Verified Gross Mass) regulations, which mandate accurate weighing of containers before loading aboard ships. Offshore platforms utilize the system for monitoring loads during pipe laying, module installation, and supply vessel cargo transfers, where accurate load data is essential for structural safety.

The manufacturing and energy sectors also benefit from the LLXH's precision measurement capabilities. Wind turbine installation crews use the system to monitor loads during the lifting of nacelles, rotor blades, and tower sections. Manufacturing facilities employ the indicator for testing the lifting capacity of overhead cranes and for weighing large components during production and assembly processes. The system's reliability in demanding conditions makes it equally suitable for mining operations, where it monitors loads on draglines, hoists, and material handling equipment.

Safety Benefits and Regulatory Compliance

Accurate load measurement is not merely a matter of operational efficiency – it is a fundamental safety requirement in industries where heavy lifting operations are performed. Overloading lifting equipment can result in catastrophic failures, causing injuries, fatalities, and significant property damage. The Dynafor LLXH Digital Load Indicator provides operators with the real-time information needed to prevent overload situations, serving as an essential component of a comprehensive lift safety program.

The system's IPT certification confirms compliance with recognized testing standards, providing assurance that the device meets established accuracy and safety requirements. In many jurisdictions, regular calibration of load measurement equipment is mandated by occupational health and safety regulations. The LLXH system's stable calibration characteristics and repeatable performance simplify compliance with these requirements, reducing the cost and complexity of maintaining regulatory adherence.

Calibration and Maintenance Procedures

To maintain the stated 0.2% accuracy over the life of the instrument, the Dynafor LLXH load indicator should be calibrated at regular intervals using certified reference weights. The recommended calibration interval depends on the frequency of use and the operating environment, but annual calibration is the minimum standard for most industrial applications. Calibration should be performed by qualified technicians using traceable standards to ensure the validity of the calibration certificate.

Routine maintenance is straightforward and helps ensure reliable operation between calibrations. The load cell and display unit should be kept clean and free from debris, particularly in dusty or dirty environments. The LCD display should be protected from direct sunlight when not in use to prevent UV degradation. Batteries, if fitted, should be replaced according to the manufacturer's recommendations. Any signs of physical damage to the load cell housing or cable should be investigated immediately, as they could affect measurement accuracy.

Related Industrial Products from Aeliya Marine Tech

Explore these complementary industrial and marine products available from Aeliya Marine Tech:

• Industrial Load Cell – Precision load sensing components for custom applications
• Crane Control System – Advanced crane automation and safety solutions
• Marine Lifting Equipment – Certified lifting solutions for shipboard operations
• Safety Monitoring System – Real-time safety monitoring for industrial applications
• Industrial Display Unit – Rugged displays for harsh environments
• Process Instrumentation – Precision measurement instruments for industrial processes

Digital Signal Processing and Measurement Stability

The Dynafor LLXH load indicator leverages sophisticated digital signal processing technology to deliver measurements that remain stable and accurate even under challenging operational conditions. Unlike analog dynamometers that can drift due to temperature changes and component aging, the LLXH's digital architecture maintains calibration stability over extended periods. The system's microcontroller implements advanced algorithms that compensate for temperature effects on the strain gauge elements, ensuring that measurement accuracy is maintained across the full operating temperature range encountered in outdoor industrial environments.

Digital filtering is another key advantage of the LLXH design. Mechanical vibration from nearby equipment, wind effects on suspended loads, and dynamic forces from load movement can all cause rapid fluctuations in the raw sensor signal. The LLXH's programmable digital filters smooth these fluctuations to provide a stable display reading that operators can trust, while still responding quickly to genuine changes in load. The balance between response speed and display stability is carefully tuned to match the requirements of typical lifting operations, where both rapid overload detection and steady readings are essential.

User Interface and Operational Features

The LLXH's LCD display is designed for readability in the varied lighting conditions encountered in industrial environments. The high-contrast display provides clear visibility in bright sunlight while an optional backlight ensures readability in low-light conditions. The display presents load readings in selectable units including kilograms, tonnes, pounds, and Newtons, allowing operators to work in their preferred measurement system. Additional displayed information includes peak hold values, battery status, and operational mode indicators that provide at-a-glance confirmation of system status.
