Inside the DS200GSIAG1CHD: A Closer Look at GE Control Board Technology

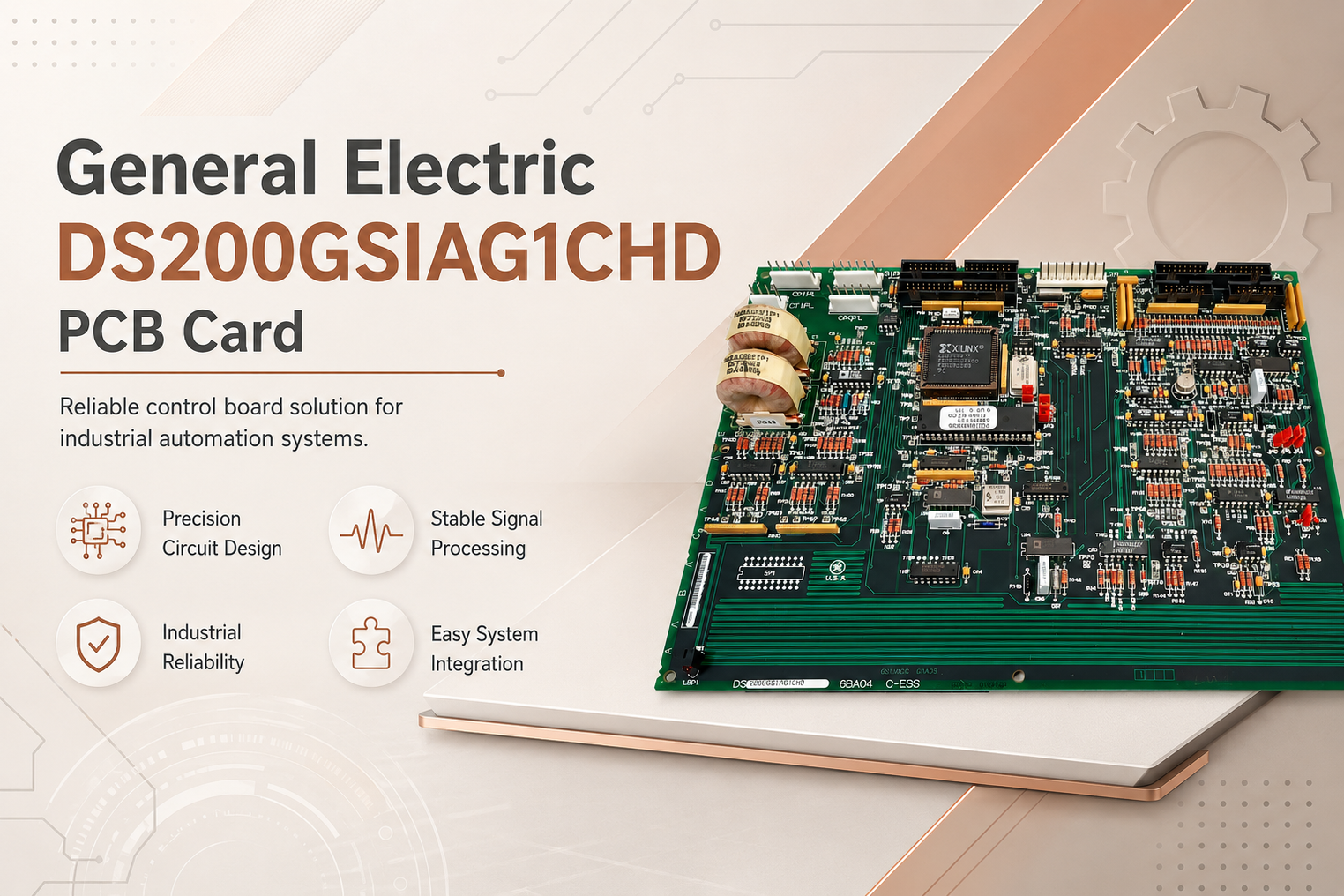

The General Electric DS200GSIAG1CHD PCB Card is a specialized printed circuit board designed for GE's industrial drive and control systems. As part of the extensive DS200 series of control boards, this PCB plays a critical role in power conversion, signal processing, and interface functions within GE's EX2000, DC300, and other drive control platforms. Manufactured in the USA to GE's exacting quality standards, the DS200GSIAG1CHD represents the reliability and precision that industrial operators depend on for continuous process control.
Product Overview
The DS200GSIAG1CHD is a PCB card from General Electric's DS200 series, widely recognized as one of the most reliable families of control boards in industrial automation. This particular card serves as a gate driver interface or signal isolation board within larger drive control assemblies, ensuring precise signal transmission and electrical isolation between high-voltage power stages and sensitive control electronics.
Key Features of the DS200GSIAG1CHD PCB Card
1. Industrial-Grade PCB Construction
The DS200GSIAG1CHD is built on a high-quality FR-4 substrate rated to UL 94V-0 flame resistance standard, ensuring safe operation in industrial environments. Multiple copper layers provide robust signal routing and power distribution, while conformal coating options protect against moisture, dust, and chemical contamination.
2. Gate Driver Interface Functionality
Within GE drive systems, the DS200GSIAG1CHD functions as a gate driver interface board (GSIAG), translating low-level control signals from the main processor into properly isolated, high-current gate drive signals for power semiconductor devices such as IGBTs and GTOs. This isolation is critical for protecting control electronics from high-voltage transients.
3. Multi-Revision Compatibility
The DS200GSIAG1CHD is designed with backward and forward compatibility across multiple system revisions. The 6BA04 C-ESS, 6DA03, and 6FA03 designations indicate compatible firmware and hardware revisions, ensuring that replacement boards can be installed without requiring extensive system reconfiguration.
4. Precision Signal Processing
The board incorporates precision analog and digital circuitry for accurate signal conditioning, filtering, and isolation. High-quality operational amplifiers, optocouplers, and digital isolators ensure signal integrity across the full operating temperature range.
Technical Specifications
- Manufacturer: General Electric
- Part Number: DS200GSIAG1CHD
- Series: DS200
- Board Type: Gate Driver Interface / Signal Isolation PCB
- Flame Rating: 94V-0
- Reference: PSG304A9936, ABBX01AD
- Compatible Revisions: 6BA04 C-ESS, GSIAG*C 6DA03, GSIAG*C 6FA03
- Origin: U.S.A.
- Weight: 480 grams
Applications in Industrial Drive Systems
GE EX2000 Drive Systems
The DS200GSIAG1CHD is a key component in GE's EX2000 family of AC drives, providing the gate drive interface between the control processor and the IGBT power modules. These drives are widely used in process industries for controlling motors ranging from hundreds to thousands of horsepower.
DC300 and DC Drive Controllers
In GE's DC drive systems, the DS200GSIAG1CHD handles signal isolation and driver interfacing for thyristor (SCR) power bridges, ensuring reliable speed and torque control of DC motors in steel mills, paper machines, and crane systems.
Power Conversion Equipment
Beyond motor drives, the DS200GSIAG1CHD finds application in power conversion systems such as UPS units, active harmonic filters, and grid-tied inverters where precise gate control of power semiconductors is required.
The DS200 Series: A Legacy of Reliability
The DS200 series from General Electric has earned a reputation as one of the most reliable families of industrial control boards ever produced. Introduced as part of GE's transition to digital drive control, the DS200 series encompasses hundreds of board variants, each designed for specific functions within drive and turbine control systems. The series' longevity is a testament to GE's commitment to quality engineering and long-term product support.
Installation and Replacement Guidelines
When replacing a DS200GSIAG1CHD board, proper procedures must be followed to ensure safe and successful installation. Always de-energize the drive system and verify zero energy state before accessing internal components. Use appropriate electrostatic discharge (ESD) protection including wrist straps and grounded work surfaces. Document all cable connections before removal, verify revision compatibility between replacement and original boards, and follow GE's commissioning procedures after installation.
Related Products from Aeliya Marine Tech
Quality Assurance and Testing
Every DS200GSIAG1CHD PCB Card from Aeliya Marine Tech undergoes rigorous quality assurance. Our testing protocol includes comprehensive visual inspection for component integrity and soldering quality, continuity testing of all critical signal paths, isolation testing between high-voltage and low-voltage sections, functional testing with appropriate drive simulators, and burn-in testing at elevated temperatures to identify latent defects.
Order the GE DS200GSIAG1CHD PCB Card
Keep your GE drive system operating reliably with genuine DS200GSIAG1CHD replacement boards from Aeliya Marine Tech. Contact us for availability and technical support.
View ProductFrequently Asked Questions
Q: What drive systems use the DS200GSIAG1CHD?
A: The DS200GSIAG1CHD is used in GE EX2000 AC drives, DC300 DC drives, and other GE power conversion systems requiring gate driver interface functionality.
Q: Can I replace a DS200GSIAG1CHD with a different revision?
A: Revision compatibility depends on the specific drive system and software version. Contact Aeliya Marine Tech's technical team for guidance on revision compatibility.
Q: What precautions should I take when handling the DS200GSIAG1CHD?
A: Always use ESD protection including grounded wrist straps and anti-static mats. Never handle the board by its components, and store in anti-static packaging when not installed.
Q: How do I know if my DS200GSIAG1CHD has failed?
A: Common failure indicators include drive fault codes related to gate driver or isolation circuits, erratic drive behavior, and visible damage to board components. Aeliya Marine Tech can provide diagnostic guidance.
Q: Does Aeliya Marine Tech offer repair services?
A: Yes, Aeliya Marine Tech provides testing and can guide you to authorized repair facilities for DS200 series boards that require component-level repair.
Conclusion
The General Electric DS200GSIAG1CHD PCB Card is a vital component for maintaining the performance and reliability of GE drive control systems. Whether you are performing preventive maintenance, addressing a board failure, or building a spare parts inventory, sourcing genuine DS200 components from Aeliya Marine Tech ensures that your drive systems continue to deliver the precise, reliable motor control your operations demand.
